Stainless steel has been and remains a preferred industry material because of its countless advantages like adaptability, durability, resistance to corrosion, etc. However, not all of them share the same qualities. If you are familiar with the terms 304 or 316, I’m sure you have pondered the differences and the reasons as to why one might be more advantageous for specific uses than the other. This article explores the difference between the two most used stainless steel grades. From distinct chemical compositions to performance in varying environments, we will furnish you with the necessary information to make educated choices. Be it construction, manufacturing or specialized works, these differences when understood have the potential to improve performance, reduce costs, and increase the efficacy of the work. Come with us as we explain everything step by step.

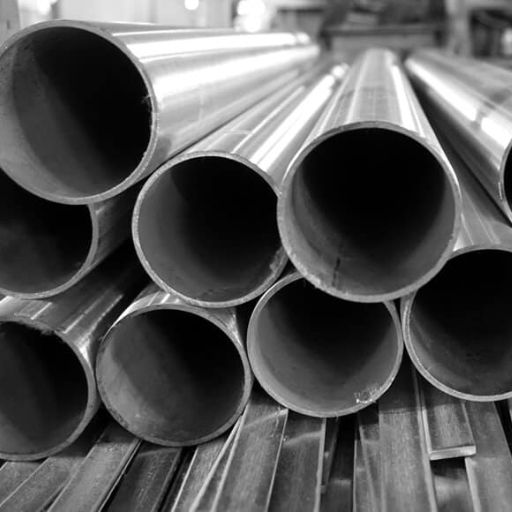

What is the Difference Between 304 and 316 Stainless Steel?
The principal distinction lies with 304 and 316 stainless steel’s chemical make-up and the type of corrosive resistive qualities they possess.
- 304 Stainless Steel: Dominant grade 304 stainless steel contains 18% chromium and 8% nickel. Its large versatility makes this grade popular, although it has a very strong crease resistance, it fails to withstand in chloride environments or with harsh chemicals.
- 316 Stainless Steel: Grade 316 also contains 16% chromium and 10% nickel, but in addition has 2% molybdenum. This makes it specifically better at corrosion towards seawater or marine environments which has high chloride content. Molybdenum is what makes 316 stainless steel strong against pitting and crevice corrosion, pitting.
Both grades withstand corrosion well and can be welded easily, but Grade Bailiss 304 is more convenient for the low-cost, general purpose projects. Grade Bailiss 316 is prefered for long-term saltwater, chemical, or weather extremities.
Key Differences Between 304 and 316
- Composition
Adding onto previous points about the absence and possession of molybdenum make a huge and primary difference for 304 and 316 stainless steel, where both alloys consist of iron, nickel, and chromium. 316 while being identical to 304, does contain 2 -3% of molybdenum, making a drastic difference in the compound’s all environment durability. The addition and absence of molybdenum certainly comes in handy for harsher environments, solely for regions periodically exposed to childerides and other aggravating erosive agents.
- Corrosion Resistance
Molybdenum is known for its ability to protect against pitting and crevice corrosion. Coupled with the rest of the metal alloys in 316, this increases resistance to seawater, de-icing salts, and industrial solvents. 304 is useful and performs well, but only in less aggressive environments where chloride rich, humid conditions may become problematic.
- Cost
Owing to its enhanced characteristics due to molybdenum, 316 stainless steel is pricier than 304. The cost difference is due to better 316s resilience and its more demanding applications.
- Applications
Other 304 stainless steel uses include: household utensils, kitchen goods, food equipment, and architectural features. 316 stainless is tailored for more specialized tasks like marine engineering, chemical processing, and medical device manufacturing.
- Strength and Weldability
Both grades have a summit mechanical strength and excellent weldability. However, 316’s reserve of molybdenum does make it slightly more reliable in extreme environmental conditions, enhancing its performance and dependability throughout the years.
The available differences and significance allow for better selection according to exposure, lifespan, and pricing sensitivity.
What are the Benefits of 316 Stainless Steel?
- Corrosion Resistance: 316 stainless steel is better used for harsh conditions because it is particularly rich in chloride and marine environments which is useful for the protection of structure too.
- Strength and Durability: Corrosion of structures is no longer an issue since it upholds mechanical strength and toughness making it long lasting even during high stress and extreme conditions.
- Heat Resistance: While on exposure to heat, the structure is not altered giving safeguard to other applications which need working part heat, making it fireproof.
- Hygienic Properties: Its smooth and non-porous surface allows for easier cleaning and maintenance, allowing for my bacteria growth resistance over time, making 316 stainless steel an ideal candidate in the food, medical, and pharmaceutical branches.
- Versatility: Its formability and other exceptional properties makes it useful in construction, manufacturing and industrial equipment.
Corrosion Resistance of 316 Stainless Steel
316 stainless steel is well known for its exceptional resistance to corrosion, especially in challenging conditions. Places where it may be physically attacked can also cut into the pitting and crevice corrosion from chloride-rich regions, such as marine or coastal areas. This attribute makes it highly suitable for chemical processing, desalination plants, or any areas exposed to saltwater. Also, note that 316 stainless steel has much greater resistance to oxidation and scaling at higher temperatures while also retaining strength and functional capability during the thermal stress.
It is one more reason why industries such as petrochemicals and pharmaceuticals would require reliable materials, as it withstands different types of chemical exposures like sulfuric, hydrochloric, and acetic acids. Studies further suggest that the material performs well under long term exposed aggressive corrosive environments, providing longevity, endurance, and affordability in maintenance costs.
Durability and Longevity of 316 Stainless Steel
316 stainless steel is well known and widely used for its outstanding resistance to corrosion, especially in the presence of saltwater, high ambient temperatures, and harsh chemicals. Its ingredient composition and more specifically, its molybdenum automatically strengthened pitting and crevice corrosion resistance compared to 304 stainless steel. This stainless steel property makes it fit for use within marine environments, chemical processing equipment, and industries with high industrial applications containing chlorides.
Alongside its resistance pose to corrosion, 316 stainless steel has incredible resistance to mechanical forces as well. For example, it upholds its form to prolong heating and cold and works well in subzero temperatures, 1400°F (760°C). It is used in the most demanding applications such as vessels under pressure, heat exchangers and components from heavy industry because of the material’s high tensile and yield strength which ensures structural stability. Its resistance to stress-induced changes over time further enhances its reputation as a material of choice best known for its strength.
Its unmatched longevity can be attributed to a remarkable combination of corrosion resistance and mechanical resilience. Studies analyzing its usage across industries show components made of this alloy have, time and time again, outperformed expectations in terms of longevity. Routine maintenance coupled with scheduled passivation makes it easy to keep stainless steel functioning for decades, even in extremely difficult conditions. The lower costs of maintenance and increased reliability combined with the extended lifecycle make 316 stainless steel the ideal material to use for critical infrastructure and intended industrial applications for the long term.

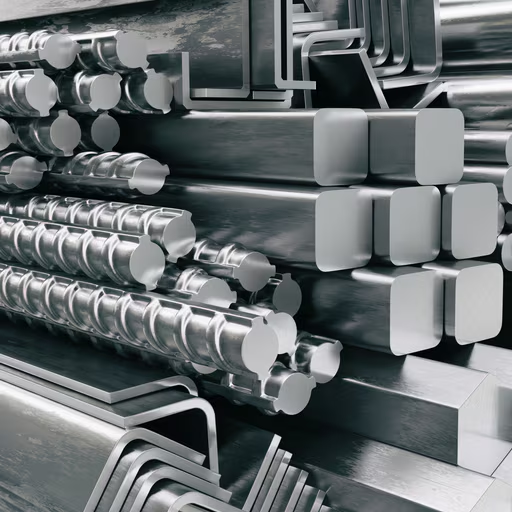

When Should You Use 304 Stainless Steel?
304 stainless steel is best when cost considerations and general corrosion resistance are the two main deciding factors. It works best for structures and equipment that have low to moderate corrosive exposure such as indoor food preparation tools, appliances, and architectural features. Moreover, its adaptability, ease of fabrication, widespread availability, make it a common selection for non-critical or less demanding roles where prevented extreme endurance, or corrosion in corrosive conditions is needed.
Pros of 304 Stainless Steel
- Corrosion Resistance: The feature which enhances the value of 304 stainless steel the most is its exceptional resistance to corrosive environment. The chromium oxide layer protects the material from deterioration and oxidation when moisture and oxygen is present. For these reasons it can be utilized where weathering becomes a concern.
- Ease of Fabrication: Ductility refers to the ease of forming, cutting, and welding materials into required shapes. 304 stainless steel is very ductile which is why it is used widely in construction, automotive, consumer goods and other industries.
- Aesthetic Appeal: 304 is also valued for its functionality in architectural and decorative appliances because of its lustrous and attractive surface finish. The fact that it can maintain its appeal for a long time greatly increases its value.
- Good Temperature Resistance: It holds up superbly for extreme temperatures, both intense heat and sub-zero temperatures, making it ideal for applications designed to deal with these conditions. 304 is oxidatively unresponsive until 870°C (1598°F).
- Non-Magnetic Properties (in annealed form): Its weak magnetic characteristics is another trait that can be useful for applications that require minimal magnetic fields. Thus, allows the use of 304 stainless steel in its austenitic structure.
- Hygienic and Easy to Clean: The 304 stainless steel smooth surface bacteria build-up making it a tremendous choise for medical, food processing, and pharmaceutical equipment that requires its users to be very clean.
Cons of 304 Stainless Steel
- Susceptibility to Chlorides: Although 304 stainless Steel offers some level of corrosion protection, it is susceptible to pitting and crevice corrosion attack in the region around the chlorides for marine and salt water usages.
- Higher Cost Compared to Carbon Steel: While 316 stainless steels are relatively more expensive, 304 stainless steel will still pose as a problem of excessively inflating the overall project budget for cost sensitive undertakings.
- Work Hardening: 304 stainless steel undergoes a changed structure due to cold working. This is a double edged sword as improved strength is useful for some applications, but many manufacturing processes face difficulties because of it.
- Nickel Allergy Potential: Nickel containing 304’s stainless steel may elicit allergic responses for sensitive people portions such as jewelry or surgical tools which directly contact skin surfaces.
- Limited Resistance in Highly Acidic or Alkaline Environments: Extreme prolong exposure to highly acidic or alkaline surrounding will diminish the life and effectiveness of 304 stainless steel, needing to use other materials in these conditions.
Although these properties suggest that 304 stainless steel is reliable and versatile in many industries, its shortcomings need thoughtful consideration during the engineering design stage to ensure appropriate fit for specific intended situations.

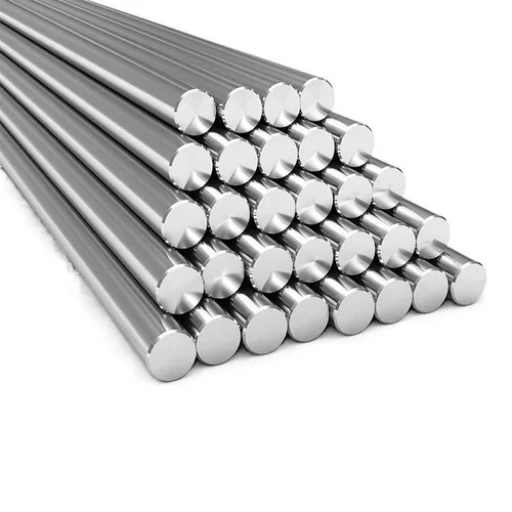

How Does the Chemical Composition Affect Stainless Steel Grades?
The types and amounts of chromium, nickel, and carbon added influence the mechanical properties of stainless steel, its resistance to corrosion, and its uses. This is how these elements function:
- Chromium: Chromium content (usually comes in at 10.5% – or higher) adds passive oxide layer which acts as a protective shield against corrosion. An increase in chromium value improves oxidation and rust resistance.
- Nickel: Nickel enhances the ToE’s metal toughness, ductile and its resistance to very high and low temperatures. It also increase the ability to be attacked by acids and alkaline solutions.
- Carbon: Carbon increases strength and hardness, however if it is in too much, it reduces corrosion resistance due too carbide precipitation.
From the abovementioned explanations, along with trace elements like Molybdenum or Manganese, define a grade of stainless steel and finely tune it to meet certain tasks or withstand certain conditions. For instance, molybdenum grade 316 is added to improve resistance to highly corrosive environments.
Understanding the Alloy Composition: Chromium and Nickel
Chromium and nickel are crucial and primary parts of stainless steel for they offer different properties that improve its performance. For instance, the alloying element Cr which must be at least 10.5% in stainless steel is required to produce a self-healing passive oxide layer which prevents surface corrosion and abrasion in different conditions. In addition, the content of chromium can be modified for certain grades to enhance the resistance to oxidation at elevated temperatures making such alloys useful in thermal processing and as furnace parts.
On the contrary, nickel very importantly aids in stabilizing the austenitic structure of stainless steel. 304 and 316 grades, with higher amounts of nickel, retain excellent toughness, ductility, and impact resistance at sub zero temperatures, even over prolonged periods of time. Moreover, nickel improves the corrosion resistance of stainless steel, specially at the region of the steel which contains a lot of acid or chloride. The combination of chromium and nickel makes it possible to produce many types of stainless steel for different mechanical and environmental conditions, which is why they are so widely used in stainless steel industries from chemical processing to marine engineering.
Impact of Molybdenum in 316 Stainless Steel
Molybdenum plays a critical role in enhancing the properties of 316 stainless steel, particularly in environments with high levels of corrosive agents. By adding approximately 2-3% molybdenum to the alloy, 316 stainless steel gains superior resistance to pitting and crevice corrosion, especially in chloride-rich conditions such as marine or coastal applications. This property is crucial for components exposed to saltwater or harsh industrial chemicals, extending their operational lifespan. Furthermore, molybdenum contributes to the metal’s overall strength and high-temperature performance, allowing it to withstand elevated pressures and temperatures in demanding applications. The inclusion of molybdenum also supports the ability of 316 stainless steel to maintain its structural integrity in acidic environments, making it a preferred material in chemical processing, pharmaceutical production, and desalination plants where both mechanical durability and corrosion resistance are critical.
What are the Ideal Applications for 304 vs 316 Stainless Steel?
304 Stainless Steel:
Due to excellent corrosion resistance, 304 is largely used for general-purposed applications and is inexpensive. It works best in salt and mild corrosion areas, including kitchens, food processing systems, sinks, and architectural pieces. 304’s broad application and ease to shape makes many people choose it for un-specialized purposes.
316 Stainless Steel:
316 is best for environments requiring higher resistance to corrosion, specifically chlorides and harsh chemicals. It is used commonly in Marine applications, chemical processing, medical devices, and desalination plants. Its extreme condition resistance makes it a preferred material for industries with more demanding requirements.
Common Uses for 304 Stainless Steel Products
304 stainless steel is extensively utilized across various industries due to its excellent corrosion resistance, ease of fabrication, and cost-effectiveness. One of the primary applications is in the food and beverage industry, where it is used to manufacture kitchen equipment, storage tanks, and processing machinery, all while complying with stringent hygiene standards. Its application is also seen in the construction sector in the form of architectural cladding, railings, and parts of structures where its long-lasting nature and visual appeal are highly regarded. 304 stainless steel is widely used in the automotive industry especially for exhaust systems and trims that need to be extremely durable and able to withstand heat. They can also be found in water treatment systems as well as chemical containers and plumbing where strength and durability are demanded. The multifunctionally helps households and industries performing a variety of tasks and all this while being cost-effective.
Choosing the Right Stainless Steel Grade for Your Project
When choosing the type of stainless steel the client needs for his project, certain major diagnostics must be checked to make the project’s outcome satisfactory in performance and financial value. They are environmental factors, mechanical characteristics, and specific needs of the application.
- Corrosion Resistance
Bolts, marine hardware, or other constructions that would be exposed to the sea would require 316 grade stainless steel due its high resistance to corrosive chloride marine environments. 304 on the other hand can be used in almost any non-specific purpose and general use environment.
- Mechanical Strength and Durability
If your project involves demanding tensile loads or heavy load bearing, consider using 410 or 17-4PH grades (precipitation hardened stainless steel). These are used in aerospace and other high-stress industrial uses.
- Temperature Tolerance
Withstand temperatures, like those fuelled by 310 stainless steel which can withstand prolonged exposure, for example furnace parts, make the material perfect for furnace parts and exhaust system. Some grades, like 304L or 316L, have lower carbon content to minimize carbide precipitation during welding and increase joint strength. These grades are preferred for construction and fabrication intensive projects.
- Welding and Fabrication Requirements
- Cost Considerations
Finding the correct balance between best performance and the budget is critical. Some grades, like 316 or duplex stainless steels, have much better characteristics but come at a higher price. In other situations, looking at long-term costs, benefits, maintenance and replacement needs guide more sensible choices.
Considering these alongside project specifics leads to better-balanced options from an expectation and budgeting perspective. Further, looking at these factors against technical docs and material specs or discussing with material science professionals aids in reliability for successful project delivery.
Reference Sources
-
- Focuses on the mechanical properties and microstructures of T304 and T316 stainless steel after long-term aging (up to 5 years).
- Explores the effects of aging on welds and boron content.
-
- Examines the long-term aging effects on T304 and T316 stainless steel, particularly in pipes.
- Discusses the implications for materials designed to last over 40 years.
Frequently Asked Questions (FAQs)
Q: What are the properties of 304 stainless steel?
A: The properties of 304 stainless steel include good corrosion resistance, excellent formability, and weldability. It contains 18% chromium and 8% nickel, making it a popular choice for austenitic stainless steel applications.
Q: How does the presence of molybdenum in 316 affect its performance?
A: The presence of molybdenum in 316 stainless steel significantly improves its resistance to pitting and crevice corrosion in chloride environments. This makes it ideal for marine applications and environments where exposure to corrosive elements is a concern.
Q: What is the price difference between 304 and 316 stainless steel?
A: The price of 316 stainless steel is typically more expensive than 304 due to its superior corrosion resistance and the addition of molybdenum. The cost can vary based on market conditions, but generally, 316 is considered a premium grade of stainless steel.
Q: What are the pros and cons of 304 vs 316 stainless steel?
A: The pros of 304 stainless steel include its lower cost and good corrosion resistance for many applications. However, it is less resistant to pitting in chloride environments compared to 316. The pros of 316 include superior corrosion resistance and better performance in harsh environments, but it is more expensive.
Q: When should I consider choosing between 304 and 316 stainless steel?
A: When choosing between 304 and 316 stainless steel, consider the environment in which the material will be used. If the application involves exposure to corrosive substances or marine environments, 316 is the better choice. For general usage where corrosion resistance is not as critical, 304 may be sufficient.
Q: What are the different grades of stainless steel?
A: Stainless steel contains various grades, with 304 and 316 being two of the most commonly used austenitic stainless steels. Other grades include 430 (ferritic stainless steel) and 410 (martensitic stainless steel), which have different properties and applications.
Q: Can 304 stainless steel be used for food processing equipment?
A: Yes, 304 stainless steel is widely used in food processing equipment due to its good corrosion resistance and hygienic properties. However, for applications involving salty or acidic foods, 316 stainless steel may be preferred due to its superior resistance to corrosion.
