Stainless steel is a basic material used in almost all industries as it is resistant to corrosion, durable, and versatile. Stainless steel, however, is not of one grade; each has its properties, strengths, and limitations. Of many options, 321 and 316 stainless steel are the most widely used grades in harsh environments. This article aims to discuss the differences in the two materials in detail, including their chemical compositions, how they behave during usage, and the best conditions in which they can be employed. Understanding the differences between 321 and 316 stainless steel will allow global engineering, design, and industry professionals to choose the best material for their needs.
What are the Chemical Composition Differences Between 321 and 316 Stainless Steel?
The key difference between the chemical compositions of 321 and 316 grades of stainless steel is their respective alloying elements. Titanium is present in Type 321 stainless steel, improving the alloy’s resistance to intergranular corrosion, particularly at elevated temperatures. On the other hand, 316 stainless steel is alloyed with molybdenum, which effectively increases resistance to pitting and crevice corrosion, but more so in chloride and seawater environments. This change in the percentage of the alloying elements is directly related to the expected performance under specific conditions.
Relevance of Titanium Stabilization in 321 Stainless Steel
While talking about titanium stabilization in 321 stainless sheets of steel is done to render chromium carbide precipitation out of the question having the potential to occur within a high-temperature range, specifically from 800 degrees Fahrenheit to 1500 degrees Fahrenheit. 321 stainless steel comprises more stable titanium carbides than chromium carbides effectively enhancing the degree of which the alloy is able to resist intergranular corrosion even at extremely high temperatures for unfathomed amounts of time. This feature is great for those who wish to use the alloy in thermal cycling or places where a constant mechanical structure has to be present while high stress heat is being applied to it. Specific heat stabilization is brought about by adjusting titanium content to the overage of five times the carbon plus 0.6%. Consequently, sufficient high-temperature stabilization is achieved without compromising the alloy’s other mechanical characteristics. This translates into longer life and higher integrity of the material when exposure to high temperatures is a constant in the equation as opposed to using non-stabilized stainless steels.
The Role of Molybdenum in the Structure of 316 Stainless Steel
Molybdenum enhances the corrosion resistance of 316 stainless steel, specifically in the presence of chlorides and acid environments. Such improvements come about due to the formation of molybdenum-based passive films on the steel, which readily provides a stronger barrier to pitting and crevice attack. The molybdenum concentration of 316 stainless steel is in the range of 2-3% and has been optimized to the lower range in order to maintain costs and to certain levels mechanical performance. Further, molybdenum intermetallic compounds result in the material’s high-temperature strength, aiding in attained performance when conditions require higher temperatures. Such engineering features would render 316-grade stainless steel the strongest and preferred grade for marine applications and chemical and industrial processes, where constant stress corrosion cracking and localized attack by chlorides are factors of great consideration.
The Role of Chromium and Nickel in 316 Stainless Steel Design
The composition of 316 stainless steel includes chromium and nickel, Elements which are regarded as essential in its effectiveness and longevity. It is the presence of chromium, in the amount of about 16 to 18 percent, that is active in forming a strong and protective oxide layer on the surface of the material, which is important in enhancing 316’s oxidation and corrosion resistant properties. Nickel is found in an amount between 10 to 14 and the ammonium salt improves the ductility and toughness of the alloy, as well as the resistance against stress corrosion cracking. Because of the combined effect of chromium and nickel, 316 grade stainless steel enjoys a firm and reliable structure in high alkaline and acidic conditions.
How Does Corrosion Resistance Compare in 321 vs 316?
Both 321 and 316 models of stainless steels provide good corrosion protection but their effectiveness depends on the environmental setting. Due to the higher molybdenum content in 316 stainless steel, its pitting and crevice corrosion resistance, especially in an environment rich in chlorides, is better than that of stainless steel 316. However, titanium-stabilized 321 stainless steel has greater resistance to intergranular corrosion in high temperatures, making it preferable for items that require high temperatures for long periods. Still, 321 is not effective in strong acid or chloride rich medium when compared to 316 which performs best in such environments. The decision on which of the two alloys to utilize depends on application criteria such as temperature and exposure to chemicals.
Pitting Corrosion Resistance in Aggressive Environments
Pitting corrosion is a localized defect that develops at spots of powerfully corrosive substances such as seawater or industrial chemicals. In the case of 321 and 316 stainless steel, the latter is more resistant to pitting because it has a higher percentage of molybdenum, typically between 2.0-3.0%, which, when added, increases its resistance to pitting corrosion. Having not had this enhancement because 321 stainless steel is composed of titanium stabilization at high temperatures, not of molybdenum content, makes it less strengthened. Thus, metallic 316 is more effective than 321 in chloride or acidic environments in minimizing the occurrence of pitting. 316 has a pitting resistance equivalent number (PREN) of approximately 24 whilst 321 has a value lower than this, therefore both metals have different pitting resistance.
Performance in Chloride-Rich Conditions
316 stainless steel is the best performer in the presence of high levels of chloride due to its enhanced anti-corrosion resistance and, more specifically, in relation to pitting and crevice corrosion. In this regard, molybdenum in 316 allows for better resistance when subjected to hostile chloride environments such as in marine or chemical processing applications. On the other hand, 321 stainless steel has a high resistance to extreme temperatures due to its titanium inclusion. Still, such inclusion does not have sufficient molybdenum addition which is needed for adequate protection in these case. Therefore, 316 is more applicable and appropriate in cases with great concern and risk of chlorides.
Intergranular Corrosion: How Stabilization Builds Resistance
Stabilization prevents the growth of chromium carbides within the grain borders, thus enhancing the resistance to intergranular corrosion. The growth of such carbides occurs in certain temperature ranges (425 – 870 °C); hence, it is often referred to as a sensitization temperature on the part of stainless steels. In 321 stainless steel, titanium is added leading to the formation of titanium carbides that are very stable and decreases the chromium content at the junction of grains. This stabilizes the protective chromium oxide layer of the material, making it less susceptible to corrosion in environments that support corrosion. There is no empirical justification for stabilization of 316 stainless steel, though classes of carbides are minimized in solution annealed or low-carbon forms such as 316L so rendering lack of precipitation of carbides enables comparable resistance.

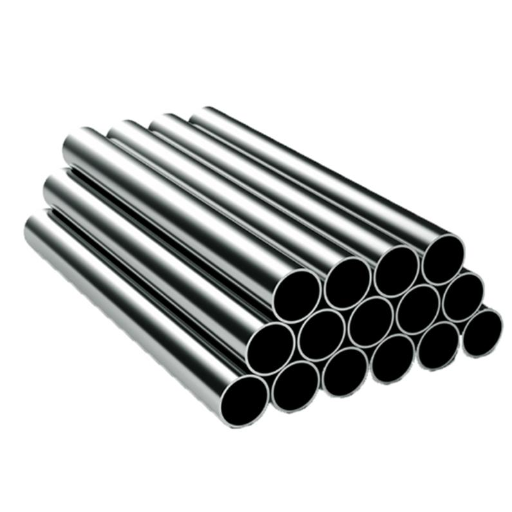

What are the Mechanical Properties of 321 and 316 Stainless Steels?
Both 321 and 316 stainless steels demonstrate good mechanical strength, making them useful in a wide variety of settings and situations. This is because 321 stainless steel has higher creep and stress rupture tendencies, with regular aging temperatures reaching up to 870°C, all thanks to its titanium stabilization. It has strong merits under thermal cycling and prolonged exposure to higher temperatures.
Unlike 321, 316 hot steel is known for its stronger tensile strength and formability than 321 within room ranges and most moderate temperatures. It exhibits good degree of ductility and therefore appropriate for tasks that need a high formability factor of acceptable materials. More so, the molybdenum in 316 increases the pitting resistance and maintains performance when under mechanical stress in very agrochemical environments. Both types have high toughness as a common feature such as under cryogenic conditions but with certain complements that make them fit for different operational requirements.
Comparison of the Tensile and Yield Strength
In the case of comparing 321 and 316 stainless steel based on their yield strength and tensile strength, it is imperative to note the differences in their composition and the working conditions under which they are expected to perform. As for 316 Stainless Steel, its yield strength can be heat treated and increased to between 170 MPa to 310 MPa; the tensile strength on the other hand is known to be around 480 MPa to 620 MPa. This range highlights 316’s satisfactory level of formability as well as its ability to withstand severe mechanical loads without permanent alteration.
In comparison, 321 Stainless Steel has lower yield strength in the range of 205 MPa to 275 MPa with its tensile strength fluctuating between 515 MPa and 675 MPa. But its strength lies in the mechanical conditions that involve high temperatures where it out excels 316 steel due to the presence of titanium which causes it to remain stable during thermal conditions and without carbide precipitation that would weaken resistive properties during creep. The significance of these strengths is that they are disaggregately useful; 316, for example, is best suited for use in highly corrosive but not mechanically demanding applications, whereas 321 can be optimal for highly mechanical and thermal oriented applications.
Effect of Increased Temperature on the Mechanical Characteristics
Regarding the effect of temperature on mechanical performance, I view the performance of stainless steels such as 316 and 321 to be poles apart. At higher temperatures, the 316 material fails to keep its desirable mechanical properties of tensile strength and yield strength, this is rather an effect of its microstructure loosening. This can result in an overall weakened load bearing capacity in extreme cases. Each stainless steel that 321 was composed of demonstrated greater durability and resistance to thermal degradation due to stabilization of titanium which reduced the volume of carbide precipitation. This allows 321 longer periods of exposure to high temperature stress without losing strength and structural integrity making it a preferable material for such applications where high temperatures are needed or involved.
Strength in Stress-Intensive Environmentals
Stainless steel 321 is arguably one of the most durable steels in mechanical and thermal stress applications. With the addition of titanium as a stabilizing alloying element, it is prevents intergranular corrosion through a reduction in precipitation of carbides, even in cyclically loaded and elevated temperature environments. This composition provides the capability to resist creep and oxidation and, therefore, can be used in the petrochemical, aerospace, and industrial sectors. Moreover, 321 stainless steel does not lose its mechanical properties over long time periods of use which means that this alloy is suitable for areas that are exposed to extreme oxidation and thermal fatigue.
How Do 321 and 316 Perform at Elevated Temperatures?
Due to the differences in their chemical compositions, 321 and 316 stainless steels will behave differently at higher temperatures. 321 stainless steel, which is stabilized with titanium, is intergranularly attacked, and so is said to possess increased strength and resistance to creep after long term heating. Such metal can be used to make heat exchangers and furnace components. 316 stainless steel is also known to be resistant to pitting and corrosion, but only if it has high molybdenum content; this is useful in marine and chloride environments. On the other hand, with prolonged exposure to higher temperatures, 316 may due to tasang corrosion during steel alloying processes, which would worsen overall corrosion resistance in comparison to 321. Compromising corrosion resistance durability aside, both steels excel in various metal applications, but if the goal is long-term durability, then the preference shifts to steel grade 321.
Advantages of Using Titanium for High Temperature Background Application
It is due to certain properties of titanium, such as high melting point (about 1,668 °C (3,034 °F)), low density, high strength and property to resist oxidation and corrosion at elevated temperature, that titanium is utilized in high-heat applications. Due to these properties, titanium alloys are important in applications involving exposure to temperatures and corrosion. The oxide layer of Titanium, which appears at certain high temperatures, acts as an effective barrier against chemical attacks that would otherwise cause harm to other materials. Likewise, titanium has a large tensile strength, which usually varies from 240 to 1,400 MPa depending on the alloy, and has the capacity to withstand higher temperatures for extended periods. Such strength and corrosion resistance makes it applicable in many fields like aerospace, power, and chemical where security during thermal activities and physical activities is needed.
Oxidation Resistant Properties of 316 Stainless Steel
Thanks to adding more molybdenum to the alloy composition, followed up with increases in chromium and nickel content, 316 stainless steel possesses a good oxidation resistance even at elevated temperatures. These factors help develop a stable passive oxide film which resists further damage in the presence of heat. Normally, 316 stainless steel can be used in service with continuous heating up to about 8700C (16000F) and non-continuous heating up to 9250C (17000F) which is useful for applications that are subjected to heat and corrosive environments. Furthermore, low-carbon versions like 316L provide additional protection by reducing the likelihood of carbide precipitation and intergranular corrosion during prolonged heating.
Performance and Stability Over Time when Exposed to Thermal Cycling
316 stainless steel shows excellent resistance to continuous periods of stress even when exposed to thermal cycling. This is because of the high chromium content, nickel, and molybdenum that take care of the microstructural and fatigue stability. These factors permit the material to withstand many heating and cooling cycles without mechanical or thermal change which may be permanent. Also, the low carbon limitation of 316L reduces the threats of carbide precipitation, thereby helping to sustain its usefulness even in working conditions where many quick temperature changes are common. This makes 316 stainless steel a logic choice in harsh environments where thermal stability is the crucial factor.

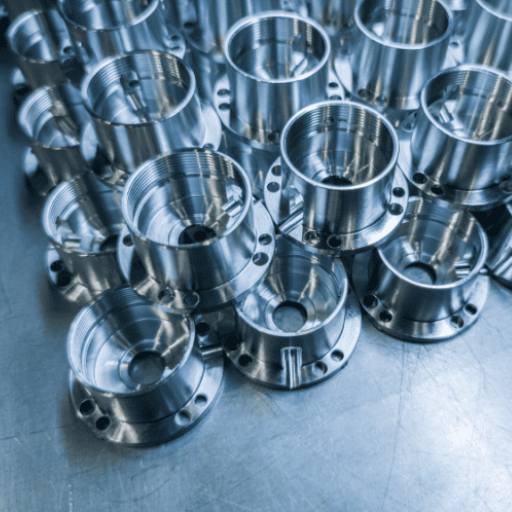

What are the Best Applications for 321 and 316 Stainless Steel?
321 stainless steel is classified as titanium-stabilized steel and, therefore, does not allow the precipitation of carbides and assures structural integrity at high temperatures. Due to these features, it is quite popular in the aircraft industry, as well as in exhaust systems and thermal oxidizers. It can be employed in conditions of approximately 900C. 316 stainless steel, on the contrary, offers an excellent corrosion-resistant service and the ability to endure aggressive chemicals. Hence, it is most effective for marine apparatus, chemical refineries, and the pharmaceutical industry, while its low-carbon counterpart – 316L, is particularly useful when welding to preclude intergranular corrosion. Both alloys perform well in applications where their extreme thermal and chemical properties are required.
Applications in Chemical Processing and Petrochemical Industries
- Refractory Stress: 321 stainless steel can endure high temperature conditions without failure or loss of tensile integrity, making it the most preferred choice for piping and storage of petroleum products. It does not suffer from thermal stress cracking or carbide precipitation, making it an ideal candidate for high-temperature reactor vessels.
- Extreme Environments: 316 stainless steels are required when intense exposure to acid and chlorides is highly likely, such as during petrochemical operations. They are especially important in the construction of piping systems, storage tanks, and tubing that come into contact with aggressive chemicals.
- Welded Assemblies: 316L stainless steel is a low-carbon subtype of steel that is aqueous welded to restrict intergranular corrosion. It is largely used in distillation columns and pressure vessels in the petrochemical industry.
- Chemical Transport and Handling Equipment: Both alloys are essential in the construction of transfer pipelines, mixing tanks, and handling systems that transport active materials while maintaining their structure and life span.
- Catalytic Processing Equipment: 321 stainless steel is thermally stable, thus useful in catalytic cracking units and parts subjected to cyclic high temperatures, while 316 stainless steel is used for parts subjected to corrosive catalysts.
These specific material properties and applications in the industry demonstrate their importance in achieving efficiency, safety, and durability in chemical and petrochemical processing systems.
Choosing Between 321 and 316 for Fabrication and Welding Projects
While selecting the appropriate steel for welding and fabrication purposes between the 321 and 316, factors such as the chemical composition, mechanical properties, and the surrounding environment need to be evaluated.
In continuous exposure to high temperatures, particularly between 480 °C to 900 °C, 321 stainless steel alloy is superior. This is because it is a titanium-stabilized alloy, which reduces the chance of carbide precipitation, and therefore, the alloy can be used best on welded structures or components with thermal cyclic stability. On the other hand, 316 stainless steel with molybdenum addition has greater corrosion resistance, especially to pitting and crevice corrosion in a chloride-rich environment; this affects salt environments, making 316 appropriate for chemical handling or marine environments.
Mechanically, the two alloys have similar tensile strength averages of 515 MPa and yield strength that averages around 205 MPa, but the working environment heavily relies on which material dominates. For example, 316’s corrosion resistance properties dominate 321 in acidic environments; however, its erosion proves to be safe in high thermal conditions.
Welding aspects must consider the performance of welded joints after welding. 321 does not require post-welded annealing and also manages to avoid intergranular corrosion stress. However, 316 requires further investigations to support the temperature in weld-dominated applications. In conclusion, it is advisable to have one’s choice to correspond with the heating range that 321 or 316 is suited for, the working environment and the factors needed by the design.
Frequently Seen in the Aerospace, Automobile and Marine Sectors
- Aerospace Industry: Alloy 321 is used in the aviation industry, where it is popular due to its high multiple oxidation resistance and stability at high temperatures. The alloy is also extensively used in thermal cycling parts, including engine exhaust systems, heat exchangers, etc. With these characteristics, the metal can be used in this sector regardless of extreme temperatures.
- Automotive Industry: Stainless steel alloys such as 316 are popular in automobile and motor vehicle manufacturing, especially in the production of exhaust systems, catalytic converter assemblies, and other parts that are prone to gas and moisture corrosion. Factors such as 316’s high resistance to corrosion and overall structural integrity prolong its preferred use, especially when roads are harsh or in tough environments.
- Marine Industry: Construction in the marine environment is subject to High salinity and moisture conditions, thus requiring materials that can resist aggressive corrosion. Alloy 316 is commonly used during the construction of ship fittings, outer parts of buildings and structures, and even piping systems that are submerged underwater. In addition to that, it has a good ability to withstand pitting and crevice corrosion, making it ideal for long term use in saltwater.
How Do 321 and 316 Compare in Terms of Cost and Availability?
Because of its titanium stabilization, 321 stainless steel offers slightly better resistance to intergranular corrosion at increased temperatures and as a result is often more expensive than 316. Nevertheless, both grades are widely available in global markets, 316 being more so due to the wider range of industries that use it. The supply of 321, on the other hand, may be somewhat limited, as it is intended for high temperature and niche applications only.
Understanding the Relationship Between Cost and Grade for 321 and 316
The cost difference between stainless steel 321 and 316 may be explained by the inclusion of alloying elements in 321, such as titanium, which contributes to improving resistance to intergranular corrosion of stainless steels in high-temperature applications. 316 is in general cheaper and more available because of its broader industrial application. In contrast, the specific characteristics of 321 tend to warrant its relatively higher cost in applications that demand more thermal resistance. These differences in price are proportionate to the properties that each material complements depending on the application intended for use.
Limitations Influencing the Production and Provision of the Two Grades
- Availability and Cost of Raw Materials: The supply of both 321 and 316 stainless steels is affected by the cost and availability of chromium, nickel, and molybdenum, which are part of the raw materials. For the 321 grade, the presence of titanium may also affect the production as titanium is scarce and very expensive compared to other alloying elements, which might lead to supply constrictions.
- Complexity of Production: The production of 321 stainless steel grade is more complicated than the production of Inconel 316 because it requires more steps to add titanium to the alloy and stabilize it. Further, this complexity can undermine production and the ensuing availability of the alloy in cases where mass manufacturing does not seem to have large enough justification.
- Dissatisfaction with Internal Demand: The alloy provides substantially wider applicability in the construction sector, medical devices, and food equipment, leading to its wide production and stock. On the other hand, owing to the application of 321 being confined to high-temperature zones, the grade is not in much demand, resulting in limited supply chains.
- Regional Production and Distribution: Supply also depends on geographical factors. For 316, the regions may be more productive because it has wider applications in industries, while 321, because of its specialized nature, does not have much regional production and hence relies on imports influenced by the world market.
- Policy on economic and trade: Import and export restrictions, tariffs, and other trade policies are key determinants of the availability of both grades. Restrictions against materials such as titanium are likely to hurt the supply of 321 more than the 316 grade, which has a wider base of production and may not be as constrained.
Cost Vs Benefit Analysis: Out Of The Options Available, Which Is The Cheapest Option?
To determine which is the cheaper option, it is essential to account for both the grade and budget when put against the application. The majority of industries apply grade 316 stainless steel as it is more readily available, less expensive to manufacture, and is able to perform in normal environments. It has high resistance to rusting and can withstand several elements making it durable enough. On the other hand, grade 321 stainless steel is comparatively expensive but is compensated in the long run as it applies in high temperatures. This is because its constitution, comprised of titanium, also makes it heat resistant. Ultimately, it all depends on operating needs; for high-temperature applications, 321 gives a greater return in the long run, while for less demanding and cost-effective applications, 316 is more economical.
Reference sources
Frequently Asked Questions (FAQs)
Q: What is the primary difference between 316 and 321 stainless steel?
A: The primary difference between 316 and 321 stainless steel lies in the alloy composition. Grade 321 contains titanium, which enhances its resistance to carbide precipitation during welding, making it ideal for high-temperature applications. In contrast, grade 316 contains molybdenum, providing superior resistance to pitting corrosion.
Q: Why would you choose 321 stainless steel over 316 ss?
A: You would choose 321 stainless steel over 316 ss when you require enhanced heat resistance and need to prevent carbide precipitation during welding. The presence of titanium in grade 321 makes it more suitable for high-temperature environments compared to 316 ss.
Q: How does the nickel and molybdenum content affect the properties of 316 vs 321 stainless steel?
A: In 316 stainless steel, the nickel and molybdenum content enhances its good corrosion resistance, particularly against pitting and crevice corrosion in chloride environments. In contrast, 321 stainless steel lacks molybdenum but includes titanium, which provides stability at high temperatures.
Q: What applications are ideal for using grade 321 stainless steel?
A: Grade 321 stainless steel is ideal for applications involving high temperatures, such as exhaust systems, heat exchangers, and aircraft parts, due to its excellent heat resistance and ability to resist carbide precipitation during welding.
Q: In what scenarios is grade 316 stainless steel preferred over 321?
A: Grade 316 stainless steel is preferred in environments where resistance to pitting and crevice corrosion is crucial, such as in marine applications, chemical processing, and areas exposed to chloride solutions, owing to its molybdenum content.
Q: What is the impact of the presence of titanium in 321 material?
A: The presence of titanium in 321 material improves its resistance to carbide precipitation during welding and enhances its stability at elevated temperatures. This makes 321 stainless steel austenitic suitable for high-temperature applications.
Q: Can you explain the heat resistance of 316 and 321 stainless steel in detail?
A: Both 316 and 321 stainless steel offer good heat resistance, but 321 is superior due to its titanium content, which prevents carbide precipitation during welding, allowing it to maintain structural integrity at higher temperatures. This makes 321 more suitable for high-temperature environments than 316.
Q: How do the physical properties of 316 and 321 stainless steel compare?
A: While both are austenitic stainless steels with similar physical properties such as density and thermal conductivity, 321 stainless steel has a slightly higher tensile strength and better performance at elevated temperatures due to the presence of titanium, compared to 316.
Q: What does “resistance to pitting corrosion” mean in the context of 316 vs 321 stainless steel?
A: “Resistance to pitting corrosion” refers to the ability of stainless steel to withstand localized corrosion typically caused by chloride ions. Grade 316, with its molybdenum content, offers better resistance to pitting corrosion than grade 321, which lacks molybdenum.
