The 2-inch Schedule 80 carbon steel pipe can sustain 4,500 PSI pressure at room temperature. The same size in Schedule 40 manages only about 3,000 PSI. High-pressure process lines, boiler feedwater systems and hydraulic systems use Schedule 80 as their standard material because it provides 50% more pressure capacity. A 6-inch Schedule 80 pipe has a pressure rating of approximately 2,600 PSI, whereas an 8-inch pipe can withstand approximately 2,300 PSI. The pressure ratings of systems experience a major decrease when temperatures increase.
Engineers need information about Schedule 80 pipe pressure ratings. The problem occurs because organizations select Schedule 80 pipes for their projects, although Schedule 40 pipes can handle pressure up to safe limits. The practice requires extra expenses that range between 25 and 50 percent, while it also raises structural weight and increases shipping costs.
Chen Wei, a piping engineer at a Shanghai refinery, saw this on a 2024 turnaround project. The specification called for Schedule 80 throughout a new process unit. Chen checked the P&IDs. The maximum operating pressure was 850 PSI at 350F.
The schedule 80 pipe pressure rating for 4-inch pipe shows that at room temperature, the pipe can withstand approximately 3,185 PSI which decreases to about 2,370 PSI at 350F. The Schedule 40 pipe system achieved a pressure rating of 2,350 PSI at room temperature, which decreased to approximately 1,750 PSI at 350F. The Schedule 40 system maintained a safety factor of 2:1.
The value-engineering change he implemented brought the project $18,000 in material savings and decreased pipe support loads by 3,200 pounds. After the client examined the calculations he approved the substitution.
The article provides the complete schedule 80 pipe pressure rating chart, which displays pressure ratings in both PSI and bar units. The document includes temperature derating information wall thickness specifications, material requirements, and a practical guideline which helps determine the need for Schedule 80 and Schedule 40.
Key Takeaways
- Schedule 80 pipe pressure ratings range from approximately 1,900 PSI (12-inch NPS) to 8,600 PSI (1/2-inch NPS) at room temperature for ASTM A53 Grade B seamless pipe.
- Schedule 80 handles roughly 40-60% higher pressure than Schedule 40 for the same nominal size, but costs 20-30% more and weighs 25-50% more.
- Temperature derating reduces capacity significantly — a 1-inch Schedule 80 pipe rated to ~6,100 PSI at 100F drops to ~3,600 PSI at 750F.
- Schedule 80 is necessary for high-pressure process lines above 1,000 PSI, boiler feedwater, and code-mandated services. Schedule 40 is sufficient for water distribution, HVAC, and low-pressure utilities.
- The system pressure rating is limited by the weakest component. Mixing Schedule 80 pipe with Schedule 40 fittings does not increase system capacity above Schedule 40.

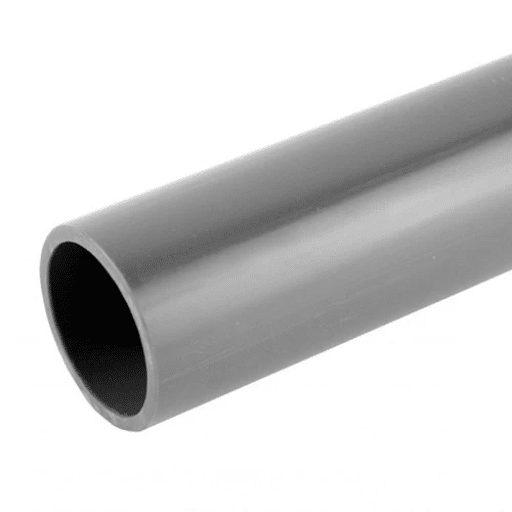

What Is Schedule 80 Pipe?
Schedule 80 is a heavy-wall pipe classification defined by ASME B36.10M for carbon and alloy steel and ASME B36.19 for stainless steel pipe. For any given nominal pipe size, Schedule 80 has the same outside diameter as Schedule 40 but a thicker wall and smaller inside diameter.
The schedule number historically indicated the maximum pressure that a pipe could withstand at a particular stress level. Today it is a standardized wall thickness designation. The pipe schedule definition establishes the maximum pressure that a pipe of specific dimensions can safely withstand.
Schedule 80 sits between Schedule 40 and Schedule 160. High-pressure piping systems use this pipe as their standard pipe because Schedule 40 pipes do not provide enough wall thickness to withstand the required operational pressure.
Schedule 80 pipe exists in both seamless and welded pipe types. Seamless construction provides the best pressure capacity because it lacks a welded seam joint efficiency reduction. Welded ERW pipe provides an economical solution that performs adequately in numerous Schedule 80 applications that require E = 0.85 to meet code standards.
Schedule 80 Pipe Dimensions, Wall Thickness & Chart
Before you can evaluate pressure capacity, you need the schedule 80 pipe dimensions. The table below is a schedule 80 pipe chart showing the most commonly specified sizes for carbon steel pipe under ASME B36.10M.
Schedule 80 Carbon Steel Pipe Dimensions
| NPS | OD (in) | OD (mm) | Wall (in) | Wall (mm) | ID (in) | Weight (lb/ft) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| 1/2″ | 0.840 | 21.3 | 0.147 | 3.73 | 0.546 | 1.09 | 1.62 |
| 3/4″ | 1.050 | 26.7 | 0.154 | 3.91 | 0.742 | 1.47 | 2.19 |
| 1″ | 1.315 | 33.4 | 0.179 | 4.55 | 0.957 | 2.17 | 3.23 |
| 1-1/2″ | 1.900 | 48.3 | 0.200 | 5.08 | 1.500 | 3.63 | 5.41 |
| 2″ | 2.375 | 60.3 | 0.218 | 5.54 | 1.939 | 5.02 | 7.48 |
| 3″ | 3.500 | 88.9 | 0.300 | 7.62 | 2.900 | 10.26 | 15.29 |
| 4″ | 4.500 | 114.3 | 0.337 | 8.56 | 3.826 | 14.99 | 22.33 |
| 6″ | 6.625 | 168.3 | 0.432 | 10.97 | 5.761 | 28.60 | 42.62 |
| 8″ | 8.625 | 219.1 | 0.500 | 12.70 | 7.625 | 43.43 | 64.71 |
| 10″ | 10.750 | 273.1 | 0.594 | 15.09 | 9.562 | 64.49 | 96.11 |
| 12″ | 12.750 | 323.9 | 0.688 | 17.45 | 11.374 | 88.71 | 132.15 |
These weights are theoretical values for plain-end carbon steel pipe. For a complete weight table covering both Schedule 40 and Schedule 80, see our steel pipe weight chart.
Schedule 80 vs Schedule 40 Wall Thickness Comparison
Schedule 80 pipe wall thickness varies by nominal size, and the difference from Schedule 40 grows as NPS increases.
| NPS | Sch 40 Wall | Sch 80 Wall | Thickness Increase |
|---|---|---|---|
| 1/2″ | 0.109″ (2.77 mm) | 0.147″ (3.73 mm) | 35% thicker |
| 2″ | 0.154″ (3.91 mm) | 0.218″ (5.54 mm) | 42% thicker |
| 4″ | 0.237″ (6.02 mm) | 0.337″ (8.56 mm) | 42% thicker |
| 6″ | 0.280″ (7.11 mm) | 0.432″ (10.97 mm) | 54% thicker |
| 12″ | 0.406″ (10.31 mm) | 0.688″ (17.45 mm) | 69% thicker |
Schedule 80 pipe has wall thickness measurements that exceed those of Schedule 40 pipes by a range of 35 to 70 percent. The increased wall thickness enables pipes to handle higher pressure levels but results in higher construction expenses and materials weight.
The ASTM A53 and A106 standards permit manufacturers to produce pipes with wall thickness measurements that extend up to 12.5% below the standard value. The tolerance margin is essential for pipes that operate close to their maximum pressure limits and use Schedule 80 piping. The mill test certificate should always be used to check actual wall thickness when your design safety factor requires precise measurements.
Schedule 80 Pipe Pressure Rating Chart & Tables
Pressure rating is where Schedule 80 earns its place in high-pressure piping. This schedule 80 pipe pressure rating chart shows the maximum working pressure for common sizes. The thicker wall allows significantly higher pressure than Schedule 40.
Pressure Rating by Pipe Size (ASTM A53 Grade B, Room Temperature)
| NPS | Wall (in) | Max Pressure (PSI) | Max Pressure (bar) |
|---|---|---|---|
| 1/2″ | 0.147 | ~8,575 | ~591 |
| 3/4″ | 0.154 | ~7,190 | ~496 |
| 1″ | 0.179 | ~6,135 | ~423 |
| 2″ | 0.218 | ~4,510 | ~311 |
| 3″ | 0.300 | ~3,660 | ~252 |
| 4″ | 0.337 | ~3,185 | ~220 |
| 6″ | 0.432 | ~2,635 | ~182 |
| 8″ | 0.500 | ~2,340 | ~161 |
These values assume seamless construction with a joint efficiency factor of E = 1.00. Ratings are calculated from the material yield strength and wall thickness using standard pressure vessel formulas. Welded ERW pipe under ASTM A53 carries E = 0.85, so the allowable pressure drops by approximately 15% for the same wall thickness.
Schedule 40 vs Schedule 80 Pressure Rating Comparison
The pressure advantage of Schedule 80 varies by size. The table below shows the direct comparison.
| NPS | Sch 40 Pressure | Sch 80 Pressure | Pressure Increase |
|---|---|---|---|
| 1/2″ | ~6,360 PSI | ~8,575 PSI | 35% higher |
| 1″ | ~4,780 PSI | ~6,135 PSI | 28% higher |
| 2″ | ~3,180 PSI | ~4,510 PSI | 42% higher |
| 4″ | ~2,350 PSI | ~3,185 PSI | 36% higher |
| 6″ | ~2,040 PSI | ~2,635 PSI | 29% higher |
| 8″ | ~1,860 PSI | ~2,340 PSI | 26% higher |
For a complete Schedule 40 pressure rating reference, see our Schedule 40 pipe pressure rating guide.
Temperature Derating: Pressure Falls as Temperature Rises
Pressure capacity decreases as operating temperature increases. The table below shows how a 1-inch Schedule 80 ASTM A53 Grade B pipe loses capacity across the typical operating range.
| Temperature (F) | Temperature (C) | Pressure Rating (PSI) | Pressure Rating (bar) |
|---|---|---|---|
| 100 | 38 | 6,135 | 423 |
| 200 | 93 | 5,290 | 365 |
| 300 | 149 | 4,750 | 328 |
| 400 | 204 | 4,370 | 301 |
| 500 | 260 | 4,060 | 280 |
| 600 | 316 | 3,870 | 267 |
| 750 | 399 | 3,620 | 250 |
Above 750F (400C), ASTM A53 is generally not recommended for continuous service. For sustained high-temperature operation, engineers typically specify ASTM A106 Grade B seamless pipe, which maintains better strength retention.
If your process runs above 500F, the temperature derating alone may force you to select a larger nominal size or a higher-grade material. Do not assume that Schedule 80 at room temperature rating is adequate at operating temperature.
Schedule 80 Pipe Materials and Specifications
Schedule 80 pipe is available in multiple material grades. The right specification for schedule 80 steel pipe depends on pressure, temperature, and corrosion exposure.
Carbon steel is the most common choice. ASTM A53 Grade B covers welded and seamless pipe for general service. ASTM A53 schedule 80 is widely specified for high-pressure industrial piping. Grade B has a minimum yield strength of 35,000 PSI and handles most industrial applications up to 750F.
The seamless pipe, which complies with ASTM A106 Grade B requirements, operates at high-temperature boiler and steam service. The material contains an identical chemical composition to A53 but its silicon content and heat treatment specifications have been improved to achieve superior performance at high temperatures.
The corrosive environments that carbon steel cannot withstand are protected by stainless steel Schedule 80 pipe. The pressure rating of schedule 80 stainless steel pipe reaches approximately 20% above carbon steel at room temperature because 304 and 316 grades possess greater yield strength. The ASTM A312 specification includes both seamless and welded austenitic stainless steel pipes, which come in 304 and 316 grades. The marine and chloride-exposed environments require 316 stainless steel which contains 2-3% molybdenum for better pitting resistance compared to 304 stainless steel.
The impact-tested carbon steel of ASTM A333 Grade 6 maintains toughness until it reaches -50F (-45C) for use in cryogenic and low-temperature applications.
Schedule 80 pipe is available in both seamless and welded options. The seamless pipe design provides maximum pressure capacity. The welded ERW pipe system offers affordable pricing while maintaining good performance in multiple Schedule 80 applications.
Weight, Cost & Structural Impact of Schedule 80
The construction of buildings using Schedule 80 requires additional expenses because its thicker walls need more raw materials and higher costs for transportation and installation work. The comparison of Schedule 80 pipe weight with Schedule 40 pipe weight enables engineers to select appropriate piping systems for their high-pressure projects.
A 6-inch Schedule 80 pipe weighs 28.6 lb per foot. Schedule 40, which has the same size, weighs 19.0 lb per foot. The total additional dead load for the 100-foot run equals 960 pounds.
Your pipe supports, plus your anchors, together with your structural steel, must possess greater strength. In seismic zones, buildings that have increased mass face more severe lateral forces which impact the entire building frame.
Li Min, a structural engineer at a Dubai EPC firm, learned this on a petrochemical project in 2024. The initial piping specification required the use of Schedule 80 piping throughout the entire project.
Li Min created a model of the pipe rack system. The total weight increase caused multiple support beams to exceed their maximum weight limits. The project would have needed heavier structural steel and larger anchor bolts.
The process team used the P&IDs to analyze their system piping requirements, which showed that only three of their lines required Schedule 80 pressure capacity. The team switched the other systems to Schedule 40, which resulted in $42,000 cost savings for structural steel and the foundation loading decreased by 18 tons.
Transport cost scales with weight. Ocean freight for steel pipe is typically quoted per metric ton. A shipment of 5,000 feet of 4-inch Schedule 80 pipe weighs approximately 34 metric tons. The same length in Schedule 40 weighs about 24 metric tons. The additional 40 percent weight increase results in increased logistics expenses which total over $2000.
Material expenses follow the same pattern. Schedule 80 requires 35 to 70 percent more steel than Schedule 40 for pipes of identical nominal size. The project costs for schedule 80 pipes reach into the tens of thousands when current carbon steel prices are applied to medium-sized projects.
Applications: Where Schedule 80 Pressure Rating Excels
Schedule 80 pipe is the correct specification for systems where pressure is high, mechanical stress is severe, or code requirements mandate thicker walls.
High-pressure oil and gas lines in refineries and process plants use Schedule 80 for process piping, compressor discharge lines, and high-pressure hydraulics where pressure exceeds 1,000 PSI.
Boiler and steam systems specify Schedule 80 for boiler feedwater, high-pressure steam headers, and superheated steam lines. The thicker wall provides a larger corrosion allowance and higher temperature-derated pressure capacity.
Chemical processing uses Schedule 80 for reactor feed lines, high-pressure transfer piping, and corrosive services where the extra wall thickness extends service life.
Fire protection systems use Schedule 80 for high-rise standpipes and fire pump discharge mains where NFPA or local codes mandate the heavier wall.
Hydraulic systems almost always use Schedule 80 or higher. Hydraulic pressures commonly range from 1,500 to 3,000 PSI, well above Schedule 40 capacity for most sizes.
Marine and offshore platforms specify Schedule 80 for risers, process piping, and systems subject to external mechanical damage.
For low-pressure utilities, water distribution, and HVAC where pressure stays below 300 PSI, Schedule 40 is almost always sufficient. For guidance on when Schedule 40 is adequate, see our Schedule 40 pipe pressure rating guide.
Schedule 80 vs Schedule 40: When Is the Extra Pressure Worth It?
The decision between Schedule 80 and Schedule 40 comes down to matching the pipe schedule to the actual service conditions.
Use this decision framework:
The design pressure should not exceed 60% of the Schedule 40 pressure rating for Schedule 80 to be considered a safe option according to your requirements. The system design includes sufficient safety buffers that protect against pressure fluctuations and handle pipeline corrosion needs. Your system shows a 2:1 safety factor because it operates at 1,500 PSI while your 2-inch Schedule 40 pipe can handle 3,180 PSI. The 4,510 PSI Schedule 80 pipe provides you with a 3:1 safety factor which most building codes require.
Temperature: Schedule 80 maintains its room-temperature strength after derating up to 400F (200C) which is its highest operating temperature. The derated Schedule 80 capacity exceeds standard steam system pressures for Schedule 40 because it maintains higher capacity across multiple sizes.
Mechanical stress: Schedule 80 pipe provides better protection against outside forces because it can withstand more damage from vibration and impact compared to Schedule 40. The thicker wall construction of your pipe system enables it to protect essential equipment against damage which occurs in traffic areas and near rotating equipment and in mining and marine environments.
Corrosion allowance: In mildly corrosive service, Schedule 40 with a standard corrosion allowance may be adequate. In highly corrosive environments, the extra wall thickness of Schedule 80 extends service life. For severely corrosive service, consider upgrading to stainless steel pipe rather than thicker carbon steel.
Some piping codes and client specifications require Schedule 80 for specific services although pressure requirements necessitate different piping systems. Always check your project specifications before substituting Schedule 40 for Schedule 80.
Schedule 80 pipe and Schedule 80 fittings match Schedule 40 outside diameter dimensions, which enables their physical connection. The system Schedule 80 pipe pressure rating reaches its maximum limit through its most fragile part. The system rating does not exceed Schedule 40 when Schedule 80 pipe connects to Schedule 40 fittings. To achieve full Schedule 80 pressure capacity, you must use Schedule 80 fittings, flanges, and valves in all applications.
Our technical consultation team can assess your pressure, temperature, and corrosion data to determine whether your project needs Schedule 80 or Schedule 40 specifications.
Frequently Asked Questions About Schedule 80 Pipe Pressure Rating
What is the pressure rating of Schedule 80 pipe?
The schedule 80 pipe pressure rating varies by nominal size and material. At room temperature, ASTM A53 Grade B seamless Schedule 80 pipe ranges from approximately 1,900 PSI for 12-inch NPS to over 8,500 PSI for 1/2-inch NPS. The welded ERW construction decreases these values by 15% because the E = 0.85 joint efficiency factor. The ASME B31 pressure piping code needs to be consulted for each particular application.
What is the maximum pressure capacity of Schedule 80 steel pipe?
A 2-inch Schedule 80 steel pipe can hold approximately 4,500 PSI at room temperature. A 1-inch pipe holds roughly 6,100 PSI. The numbers assume that the construction uses seamless ASTM A53 Grade B materials.
The actual safe working pressure depends on operating temperature, corrosion allowance, and weld seam quality. Engineers use safety factors of 3:1 or 4:1 to create conservative designs from theoretical ratings.
What is the pressure rating difference between Schedule 40 and Schedule 80?
Schedule 80 pipe pressure ratings are approximately 25-40% stronger than Schedule 40 for matching nominal sizes. A 2-inch Schedule 80 pipe handles about 4,500 PSI compared to 3,000 PSI for Schedule 40. The thicker wall of Schedule 80 provides higher pressure capacity but adds 25-50% more weight and cost. The system will operate sufficiently with Schedule 40 for all conditions below 1,000 PSI.
Is Schedule 80 pipe rated for steam?
Steam service at elevated pressures and temperatures above Steam Schedule 40 pipe specifications is possible with Schedule 80 pipe. The pressure rating of 1-inch Schedule 80 pipe drops from 6,100 PSI at 100F to 4,370 PSI at 400F and 3,620 PSI at 750F. Engineers choose ASTM A106 Grade B material for permanent high-pressure steam operations that exceed 400F. Always check the temperature-derated rating before selecting pipe for steam.
Can you combine Schedule 40 pipes with Schedule 80 pipes?
The outside diameter of Schedule 40 pipes matches that of Schedule 80 pipes which allows users to interchange the two types. The system pressure rating depends on the weakest component in the system. The system pressure capacity reaches Schedule 40 limits when Schedule 80 pipe connects to Schedule 40 fittings. To achieve full Schedule 80 pressure rating, the system must use Schedule 80 fittings and flanges and valves throughout.
Conclusion
Schedule 80 pipe delivers the schedule 80 pipe pressure rating, wall thickness, and mechanical strength that high-pressure piping systems require. The system supports pressure levels that start at approximately 1,900 PSI for large diameter pipes and reach beyond 8,500 PSI for small diameter pipes when operating at room temperature. The system provides sufficient capacity to handle high-pressure oil and gas operations, boiler feedwater, chemical processing, and hydraulic systems while maintaining necessary safety margins
The key is matching the pipe schedule to the actual service conditions. The Schedule 40 system operates effectively for water distribution and HVAC and general utilities which require pressure control below 1,000 PSI because of its lower cost and weight advantages. The proper choice for boiler feedwater and high-pressure hydraulics and process lines which operate above 1,000 PSI is Schedule 80 which also serves as a code-mandated option.
All users need to understand how temperature derating affects the performance of their elevated-temperature equipment. A pipe which can withstand 6,100 PSI at room temperature will reach a pressure capacity of less than 4,000 PSI when it operates at 400F. The system rating depends on the weakest component in the line so users must remember that fitting compatibility matters.
