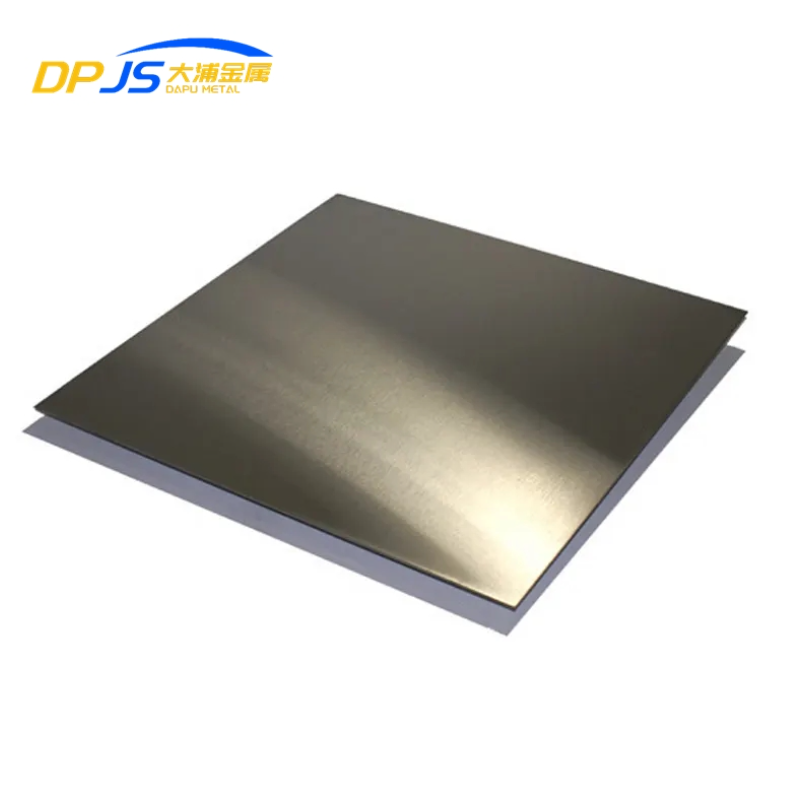

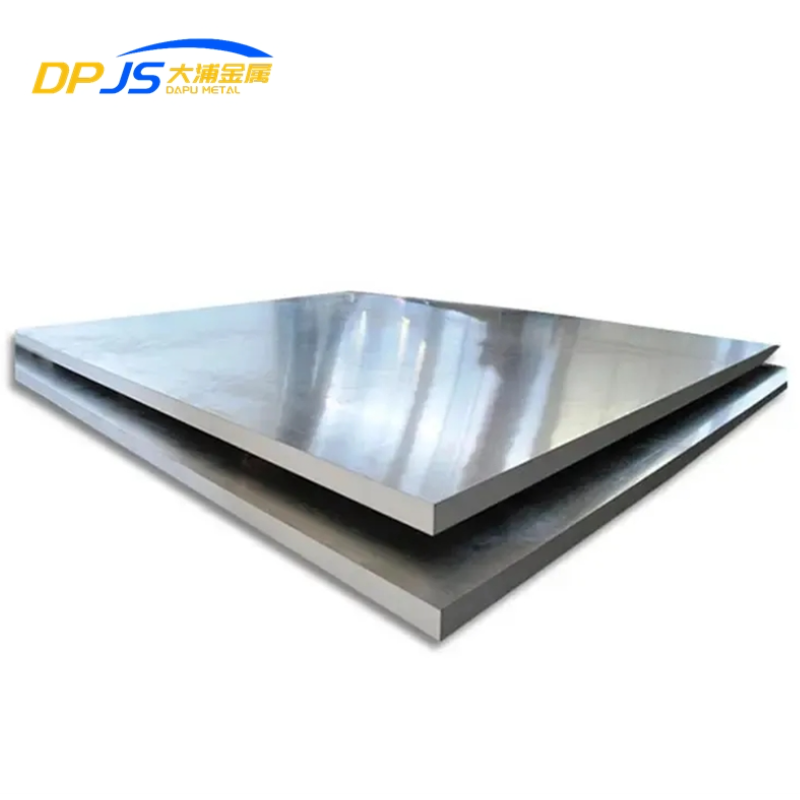

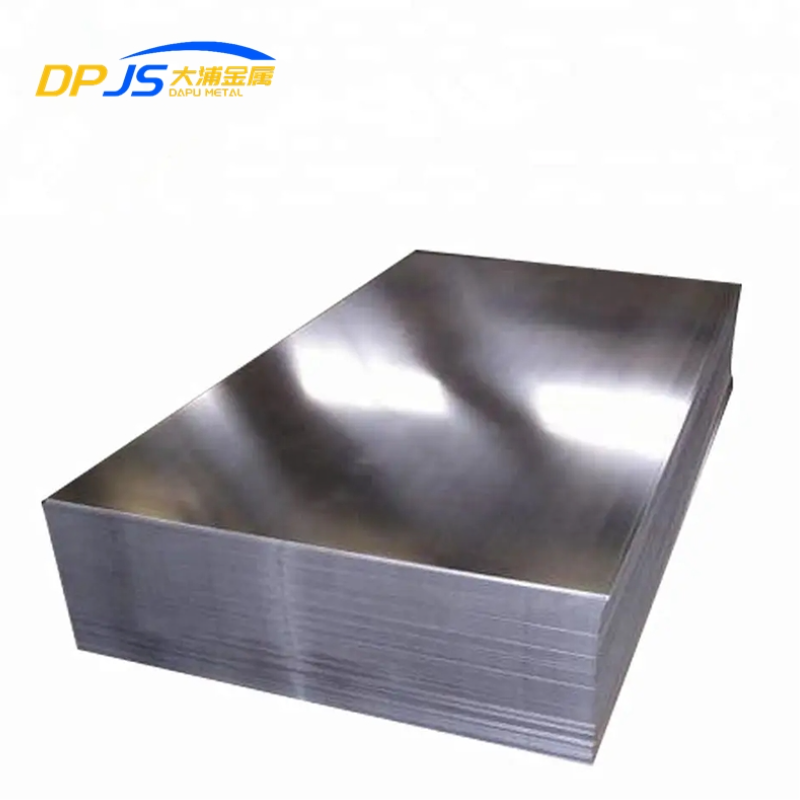

ASTM A240 201 (UNS S20100) Stainless Steel Sheet
Leading 201 Stainless Steel Sheet Manufacturer in China
ASTM A240 Type 201 (UNS S20100) is the premier choice for applications demanding a reliable and economical alternative to traditional chromium-nickel stainless steels. As a highly versatile material, Type 201 stainless steel provides a robust solution for a vast range of industrial, commercial, and consumer applications.It features high tensile strength and toughness, making it suitable for structural components and parts that require durability. This grade can be readily formed, stamped, and drawn using standard fabrication techniques. While non-magnetic in the annealed state, it becomes magnetic when cold-worked.Its corrosion resistance is comparable to other 300-series steels in many mild environments.
Discover high-quality 201 stainless steel sheet products here.
-
Characteristics of 201 Stainless Steel
- Cost-Effective Alternative: Developed to conserve nickel, making it cheaper than 300-series stainless steels.
- High Strength and Work Hardening: This grade exhibits high yield and tensile strength in its annealed condition. It has a high work-hardening rate.
- Good Formability and Fabricability: High strength while remaining formable, allowing fabrication through roll forming and brake bending.
- Good Weldability: Type 201 stainless steel can be welded using standard fusion and resistance methods, with Type 201 filler materials recommended.
- Corrosion Resistance: Resists mild corrosion, similar to Type 301, and often replaces Type 304 in less demanding uses.
- Versatile Applications: Type 201’s strength, formability, and affordability make it an ideal choice for a wide range of applications.
- Excellent Toughness at Low Temperatures: Type 201 remains tough in freezing conditions, making it ideal for cold environments and impact-resistant applications.
- Austenitic and Primarily Non-Magnetic: It is non-magnetic in the annealed condition. It becomes slightly magnetic when it undergoes cold working processes.
ASTM 240 (UNS S30403) Stainless Steel Technical Specifications
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.15 max |
| Chromium (Cr) | 16.0 - 18.0 |
| Nickel (Ni) | 3.5 - 5.5 |
| Manganese (Mn) | 5.5 - 7.5 |
| Silicon (Si) | 1.00 max |
| Nitrogen (N) | 0.25 max |
| Phosphorus (P) | 0.060 max |
| Sulfur (S) | 0.030 max |
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa min |
| Yield Strength (0.2% Offset) | 260 MPa min |
| Elongation in 2 in. (50 mm) | 40% min |
| Hardness, Rockwell B | 100 max |
| Hardness, Brinell | 241 max |
| Property | Value |
|---|---|
| Density | 7.8 g/cm³ (0.283 lbs/in³) |
| Melting Range | 1399 - 1454 °C (2550 - 2650 °F) |
| Modulus of Elasticity | 197 GPa (28.6 x 10⁶ psi) |
| Thermal Conductivity | 16.2 W/m·K at 100°C (9.4 BTU/hr/ft²/ft/°F at 212°F) |
| Electrical Resistivity | 68.5 microhm-cm (27.0 microhm-in) |
| Specific Heat | 500 J/kg·K (0.12 BTU/lb/°F) at 0-100°C |
| Mean Coefficient of Thermal Expansion | 15.7 µm/m/°C at 0-100°C (8.7 µin/in/°F at 32-212°F) |
ASTM: A240 Type 201, A276 Type 201
UNS: S20100
EN / DIN: 1.4372
JIS: SUS 201
BS: 284S16
Other: Often referred to as “Type 201” in the industry.
Common Applications of 201 Stainless Steel
Kitchenware & Appliances
Automotive Industry
Architectural & Decorative
Industrial & Structural
-
201L Stainless Steel Sheet Customization
In addition to standard stock, we offer comprehensive processing services to deliver ASTM A240 201 stainless steel sheet products tailored to your exact project requirements.
- Custom Dimensions: We offer cut-to-size and shearing services to match your specific length and width needs.
- Thickness Range: Sheets are available in a wide variety of thicknesses to suit both light and heavy-duty applications.
- Surface Finishing: Choose from multiple finishes, including standard 2B, bright annealed (BA), No. 4 brushed, and No. 8 mirror.
- Processing Services: We provide value-added fabrication services, including bending, welding, decoiling, punching, and precision cutting.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Your project’s success relies on the right combination of performance and value. We supply certified ASTM A240 201 stainless steel sheets that meet rigorous industry standards, ensuring absolute confidence in the strength and longevity of your application. As your dedicated partner, we utilize our vast inventory and advanced processing services to meet your exact specifications, from standard stock to fully customized components. We deliver not just a product, but a promise of unwavering quality and cost-effective reliability for your most demanding projects.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
