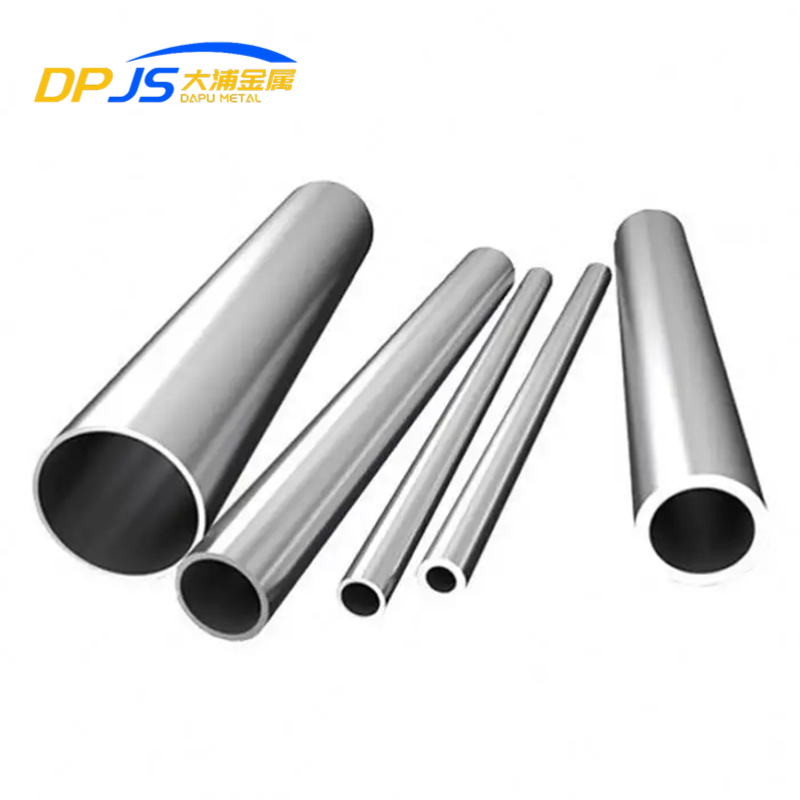

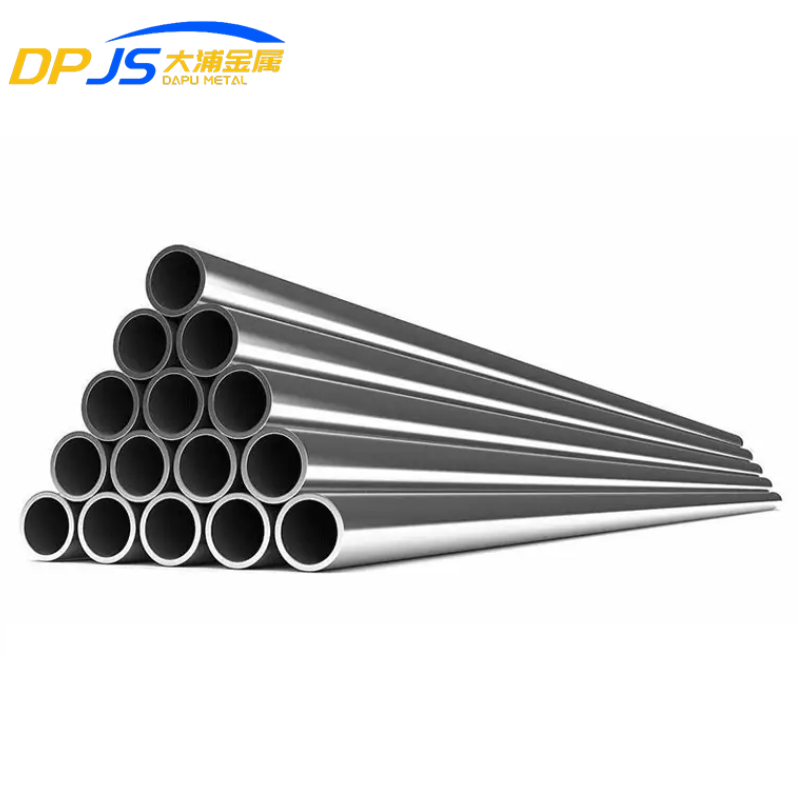

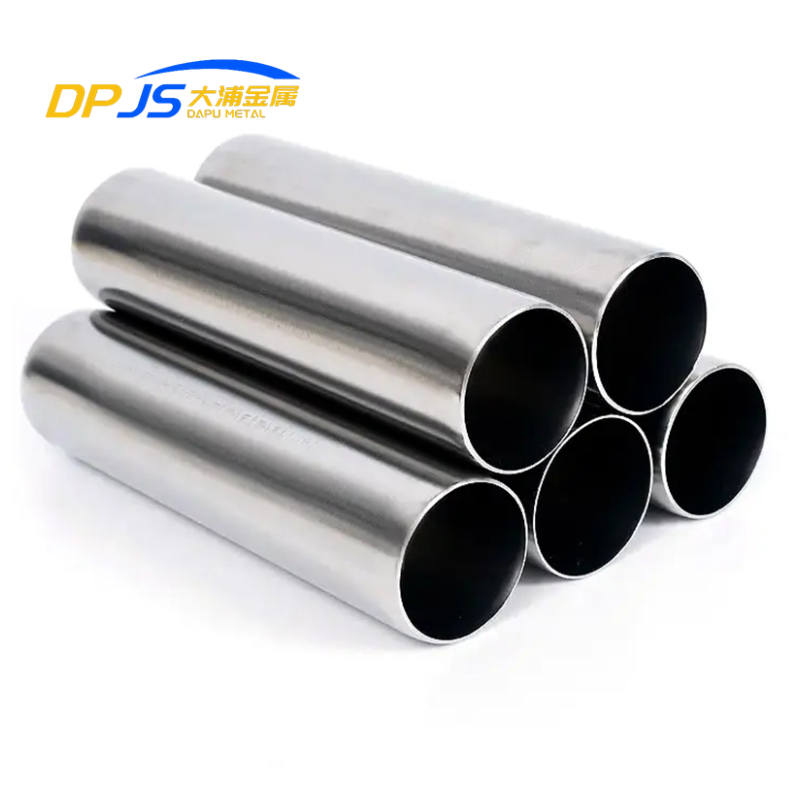

ASTM A312 316Ti (UNS S31635) Stainless Steel Pipe
Top 316Ti Stainless Steel Pipe Manufacturer in China
ASTM A312 316Ti(UNS S31635) Stainless Steel Pipe has been titanium stabilized to impart increased strength, corrosion resistance, and high temperature properties. These qualities make it an exceptionally suitable material for use in extreme conditions that necessitate a combination of performance, durability, and reliability, such as in chemical, industrial, and heat transfer equipment applications. As such, it is modestly performing, incurable corrosion, and requires reduced maintenance.
Discover high-quality 316Ti stainless pipe products here.
-
Characteristics of 316Ti Stainless Steel
- Titanium-Stabilized Composition: Enhanced resistance to sensitization and intergranular corrosion due to titanium addition.
- Superior Corrosion Resistance: Excellent protection against general, pitting, and crevice corrosion in harsh environments.
- High-Temperature Performance: Maintains strength and stability at elevated temperatures up to 1500°F (815°C).
- Enhanced Durability: Long-lasting material with reduced maintenance needs in demanding industrial applications.
- Improved Weldability: Titanium addition minimizes weld decay, ensuring strong and reliable weld joints.
- Mechanical Strength: High tensile and yield strength for structural integrity in critical applications.
- Versatile Applications: Ideal for chemical processing, heat exchangers, and industrial piping systems.
- Compliance with Standards: Meets ASTM A312 specifications for quality, performance, and reliability.
ASTM A312 316Ti (UNS S31635) Stainless Steel Technical Specifications
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Carbon (C) | - | 0.08 |
| Manganese (Mn) | - | 2 |
| Silicon (Si) | - | 0.75 |
| Phosphorus (P) | - | 0.045 |
| Sulfur (S) | - | 0.03 |
| Chromium (Cr) | 16 | 18 |
| Molybdenum (Mo) | 2 | 3 |
| Nickel (Ni) | 10 | 14 |
| Nitrogen (N) | - | 0.1 |
| Titanium (Ti) | 5x (C + N) | - |
| Property | Value | Units |
|---|---|---|
| Tensile Strength (Minimum) | 515 | MPa |
| Yield Strength (0.2% Proof) | 205 | MPa |
| Elongation (Minimum) | 35 | % |
| Hardness (Rockwell B, Maximum) | 75 | HRB |
| Hardness (Brinell, Maximum) | 205 | HB |
| Elastic Modulus | 193 | GPa |
| Property | Value | Units |
|---|---|---|
| Density | 7.99 | g/cm³ |
| Elastic Modulus | 193 | GPa |
| Thermal Conductivity | 14.6 | W/(m·K) |
| Thermal Expansion | 16.5 × 10⁻⁶ | m/m·°C |
| Specific Heat | 500 | J/(kg·K) |
| Electrical Resistivity | 7.4 | µΩ·cm |
- EN: X6CrNiMoTi17-12-2
- UNS: S31635
- JIS: SUS 316Ti
- BS: 320S31
- AFNOR: Z6CNDT17-12
Common Applications of 316Ti Stainless Steel
Chemical Processing Equipment
Heat Exchangers
Industrial Piping Systems
Food and Beverage Industry
-
316Ti Stainless Steel Pipe Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Pipes can be customized in diameter and length to meet specific industrial and project requirements.
- Thickness Range: Available in various wall thicknesses, typically from SCH5 to SCHXXS, for diverse pressure and structural needs.
- Surface Finishing: Options include polished, pickled, brushed, and matte finishes to enhance appearance and corrosion resistance.
- Processing Services: Includes cutting, threading, beveling, and welding to deliver ready-to-install pipes tailored to precise specifications.
Contact our technical team to discuss your custom fabrication needs.
