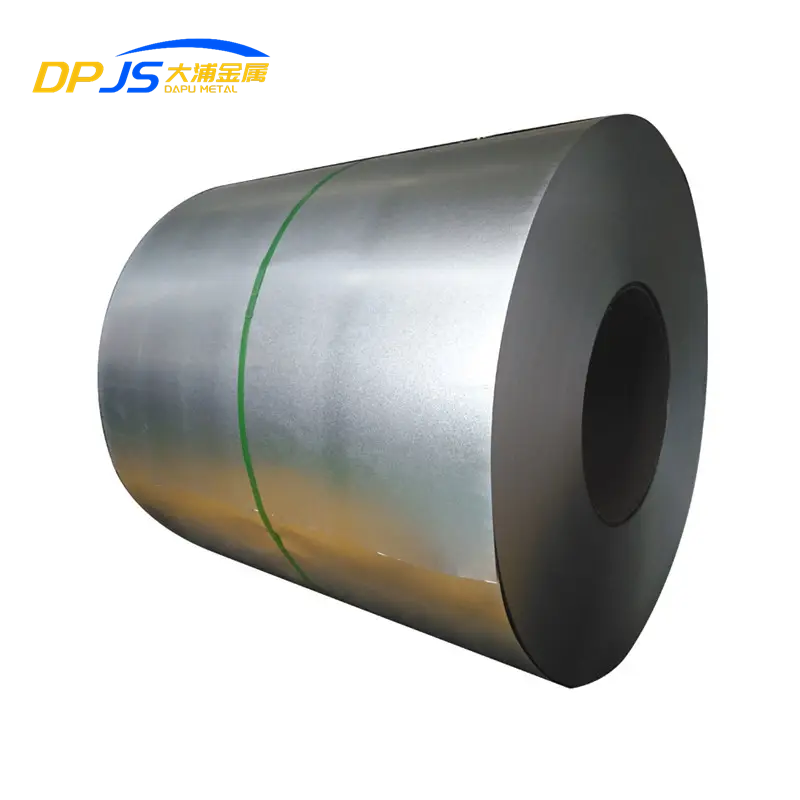

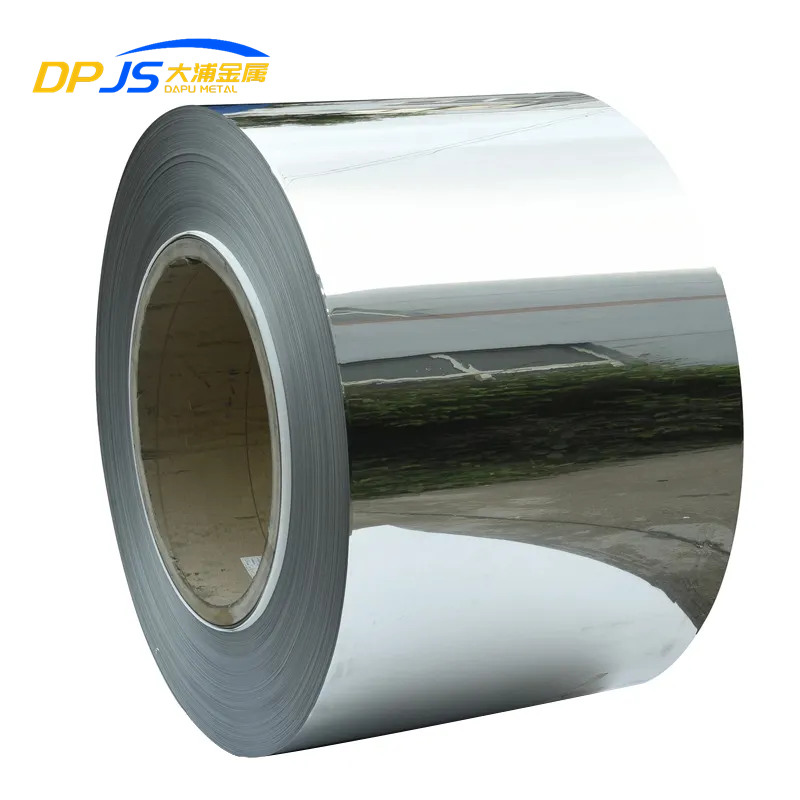

ASTM A240 316 (UNS S31600) Stainless Steel Coil
Top 316 Stainless Steel Coil Manufacturer in China
ASTM A240 316 stainless steel coils offer superior corrosion resistance, durability, and high-temperature stability. With customizable dimensions (0.3–6.0mm thickness) and finishes like 2B, BA, and Mirror, they are ideal for marine, chemical, food, and medical applications. Engineered for demanding environments, these coils ensure long-term reliability and performance.
Discover high-quality 316 Stainless Steel Coil products here.
-
Characteristics of 316 Stainless Steel
- Corrosion Resistance: Exceptional resistance to pitting and crevice corrosion, especially in chloride-rich environments.
- Durability: High strength and toughness, even at extreme temperatures and harsh conditions.
- Heat Resistance: Performs reliably at temperatures up to 925°C, suitable for high-temperature applications.
- Aesthetic Appeal: Available in finishes like 2B, BA, and Mirror for a polished, professional look.
- Chemical Resistance: Withstands exposure to acids, alkalis, and harsh chemicals in industrial settings.
- Weldability: Excellent weldability with minimal risk of carbide precipitation during welding.
- Customizability: Offered in various thicknesses, widths, and surface finishes to meet specific needs.
- Longevity: Designed for long-term performance, reducing maintenance and replacement costs.
ASTM 240 (UNS S31600) Stainless Steel Technical Specifications
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 0.75 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.03 |
| Chromium (Cr) | 16.0–18.0 |
| Nickel (Ni) | 10.0–14.0 |
| Molybdenum (Mo) | 2.0–3.0 |
| Nitrogen (N) | ≤ 0.10 |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (Rockwell B) | ≤ 95 |
| Hardness (Brinell) | ≤ 217 |
| Property | Value |
|---|---|
| Density (kg/m³) | 8000 |
| Elastic Modulus (GPa) | 193 |
| Thermal Conductivity (W/m·K) | 16.3 (at 100°C) |
| Specific Heat (J/kg·K) | 500 |
| Electrical Resistivity (nΩ·m) | 740 |
| Coefficient of Thermal Expansion (µm/m·°C) | 15.9 (0–100°C) |
- ASTM: A240 Type 316
- UNS: S31600
- EN / DIN: 1.4401
- JIS: SUS 316
- BS: 316S31
- AFNOR: Z6CND17-11-02
Common Applications of 316 Stainless Steel
Marine Industry
Chemical Industry
Food Processing
Medical Industry
-

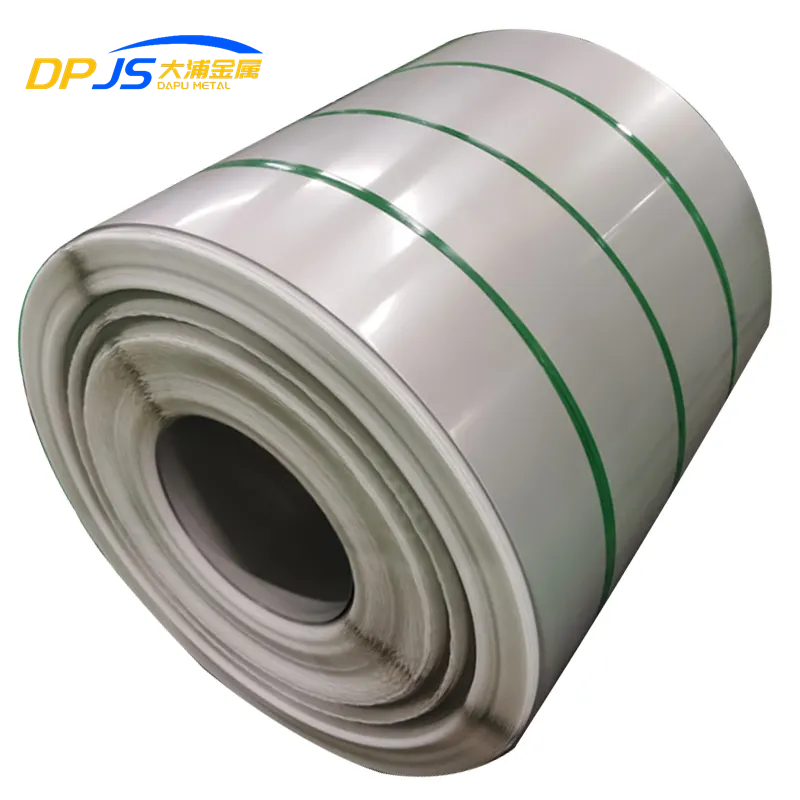

316 Stainless Steel Coil Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Tailored widths and lengths to your needs.
- Thickness Range: 0.3mm to 6.0mm for diverse applications.
- Surface Finishing: Options include 2B, BA, Mirror, and No.4.
- Processing Services: Slitting, polishing, trimming, and cold rolling.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Your project’s success depends on premium materials. We provide certified ASTM 316 stainless steel coils, engineered to meet stringent industry standards for superior corrosion resistance and durability. From standard stock to fully customized solutions, our advanced processing services ensure your exact specifications are met. Partner with us for reliable materials that deliver long-term performance.
Ready to begin? Contact our expert team for a no-obligation quote and tailored material consultation. We’re here to discuss your technical needs, offer competitive pricing, and ensure on-time delivery. Let us simplify your procurement process and support your project with the quality it deserves. Send your inquiry today to secure the premium materials you need.
