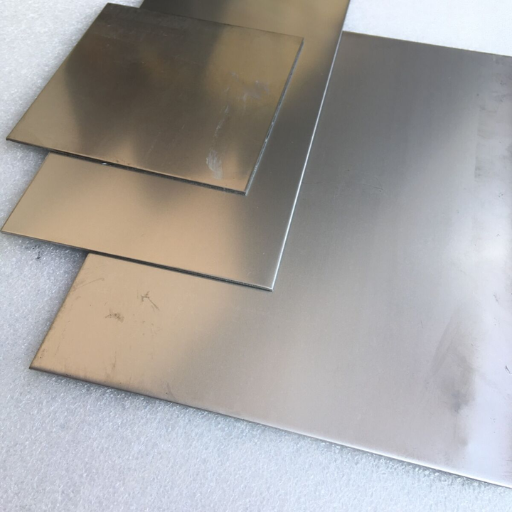

Introduction to Stainless Steel Plate
Plates made of stainless steel are flat-rolled steel products consisting of iron, chromium and other components, which are fabricated keeping in view resistance to rust and robustness in extreme environments. Such plates are widely used because they are robust and can be utilized in multiple capacities, which explains their prevalence in industries including, but not limited to, the oil and gas industry, the chemical industry, and the construction sector. These plates are found in different grades, which are each suited to specific functions in the industry, and some of such grades include 304 and 316 grades, which are characterized by their resistance to corrosion, and the ability to operate at high temperatures with seasonal effects. In more practical contexts, stainless steel plates are available in modified thicknesses and sizes as required by applications within high-performance technical environments and for the provision of equipment for such environments.
What are Stainless Steel Plates?
They are made out of a variety of materials in the present stage of development (iron, chromium, and nickel, among other alloying elements), besides the fact that most of them are made out of iron. This interaction, which causes the iron to fail after some time under even mild oxidation conditions with a pH greater than 8.6, will result in the acquisition of a vascular system that can be passively filled with hydraulic fluid and controlled by chemical or assisted coating/painting means. Their tensile strength and related features, however, place them slightly above their counterparts in the construction of heavy equipment such as machinery.
Moreover, stainless steel sheets can withstand high temperatures effortlessly and are therefore used in areas undergoing intense heat load, such as for heat exchange, pressure vessel, and boiler applications. Specific grades of stainless steel also have their magnetic properties removed, making them very suitable for industries such as medical and electronics. Stainless plates also exhibit good formability and weldability, allowing for easy shaping without compromising the material’s integrity. They have a long lifecycle, which, when coupled with their low maintenance requirement, indicates that they are suitable for high-performance applications as reliable engineering materials.
Importance of Stainless Steel in the Oil and Gas Industry
The use of stainless steel corrosion control alloys is essential in the oil industry. This is due to the nature of the working environments and operations that materials in this industry are exposed to, such as pressure, temperature, and corrosive media like hydrogen sulfide gas, saline water, etc. In applications such as subsea pipelines, process vessels, and offshore structures, duplex and super duplex stainless steels ensure a prolonged corrosion life in seawater environments. Moreover, stress corrosion cracking does not affect stainless steels, and this characteristic makes them the best-suited material for drilling, extraction, and transportation equipment.
Additionally, the material is quite strong considering its weight. It makes it easy to build structures that do not wear out easily and are lightweight, thus promoting cost-effectiveness in structural engineering. The material of interest is stainless steel, a metal that can form corrosion-resistant welds. This will prevent the pipes from leaking under dynamic loading conditions. Furthermore, stainless steel pipe requires minimal maintenance, both in terms of routine upkeep and breakdown of the above or near pipes and associated equipment. This makes it very easy and inexpensive to install above or near defined pipes, offering a higher cost advantage for such installations; therefore, SS is a preferable material for the entire pipe system. Such amenities are highly sought after concerning safety, productivity and sustainability under different working conditions, thus suggesting the immense importance of stainless steel within that industry.
Benefits of Stainless Steel Plates
Corrosion Resistance
Stainless steel plates exhibit superior corrosion resistance, especially in environments where moisture, chemical substances, or saline conditions prevail. For instance, 304 and 316 grades present durable protection for marine and chemical processing applications.
High Strength-to-Weight Ratio
Due to their high strength-to-weight ratio, stainless steel plates are endowed with a structural property that requires minimal material usage. For example, duplex stainless steels such as 2205 maintain almost twice the strength of regular austenitic grades.
Temperature Resistance
Withstanding different temperature ranges, stainless steel plates are suitable for applications requiring cryogenic or high temperatures. For example, grades like 310S are good to exceed temperatures of about 2,000°F (1,093°C) functionally.
Hygienic and Non-Porous Surface
The non-porous surface and stainless steel plates prevent any form of bacterial growth from occurring. They are particularly useful in the food processing and pharmaceutical industries, where hygienic standards must be strictly adhered to.
Longevity and Durability
Wear, impact, and environmental stresses do not compromise the longevity of stainless steel plates. One study confirms that stainless steel products remain serviceable for many decades while experiencing only slight degradation.
Aesthetic Appeal
The sleek and polished outlook of stainless steel plates favors their dominance in the architectural and design applications, citing practicality first.
Exceptional Strength and Durability
Stainless steel plates have long been renowned for their exceptional hard-wearing properties. This makes stainless steel especially applicable even under the constantly challenging conditions. It is a fact that stainless steel can withstand extremely high or low temperatures without compromising its performance. Very high temperatures are experienced during certain operations, like combustion in the furnaces and exhaust systems, while under sub-zero conditions, as in cryogenic tanks. Due to the described resistance to oxidation the construction will maintain its structure over several years in cases of construction exposed to moist corrosive saline environment and aggressive media like acids in chemical engineering in particular. Primary studies and industry publications highlight that a new generation of materials, such as 316L stainless steel, has enhanced all these qualities, primarily due to the incorporation of molybdenum, which improves pitting and crevice corrosion resistance. This range of properties has legitimately justified the use of steel plates in various industries to date.
Corrosion Resistance in Harsh Environments
There have been updates within the material science field regarding the paintings or coatings of metals that are equally vital to the extreme conditions–corrosion control aspect of metal research. One such material is the epoxy or ceramic-polymer matrix-based protective coatings, which are made in very thin layers and provide localized protection against chlorides and sulphur compounds. Coatings in nanotechnology do come in to increase the life span of critical components due to the fact that they improve the chemical resistance and mechanical properties of surfaces to great extent.
A typical example is the industry involving high-pressure pipe works or those of chemical storage tanks; more of them are increasingly being purchased with duplex stainless steels, which essentially combine the structures of ferritic and austenitic steels to provide greater strength and resistance to corrosion fatigue and stress corrosion cracking. Research has shown that duplex steels, such as 2205 and 2507 grades, perform significantly better than traditional grades, especially in situations where chemicals like chlorides are present and containment of pressure and/or temperature is required. The significance of material composition, as well as surface technologies, in corrosion control within existing complex environments is enhanced by these advancements.
Cost-effectiveness Over Time
The economic performance of duplex stainless steels, on the other hand, is especially significant in life-cycle cost analysis. This is despite the fact that the expenditure on them during the initial stages is more than that on traditional materials. Duplex steels have in-built wear resistance properties, which extend the service life of these materials and eliminate the need for frequent routine replacements and maintenance. A prime example is their superior capability to withstand pitting and crevice corrosion within chlorides, which decreases the chances that the overall structure might fail and that consequently would be expensive. Outcomes demonstrate that enums and the long service life of the alloys, such as duplex 2205 or 2507, and also low costs associated with repair work, considerably lessen costs over many years. Besides this, they are also dense, helping the design to have loss buckles and do away with materials thanks to industries like oil and gas, chemical processing, and shipbuilding. It is the system value of products that also considers their operation and maintenance aspects. Such a value also appreciates service issues over time.

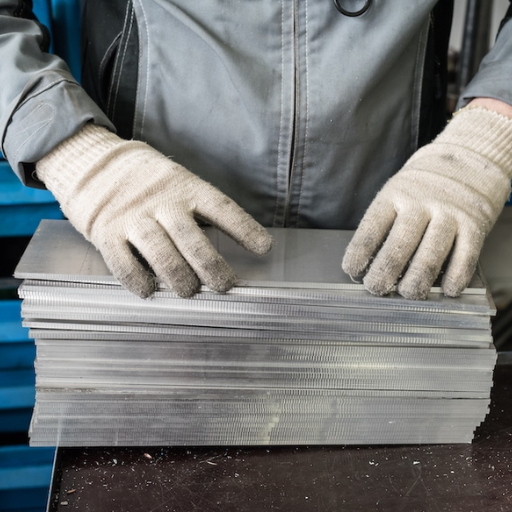

Applications of Stainless Steel Plate
Stainless steel plates are widely used in different industries for their durability, corrosion resistance, and weathering qualities:
- Construction and Architecture – For these purposes, stainless steel is used in the manufacture of various supporting elements, decorative panels, and roof or wall parts which are purely visual.
- Automotive and Transportation – These encompass building car spare parts, fuel tanks, and fragments for the construction of lorries or even railway components free of carcinogens or any other hazardous material.
- Food and Beverage Industry – These are forms of stainless steel materials primarily designed for sanitary processing equipment, storage tanks and other sterile facilities.
- Medical Field – These are frequently utilized in medical appliances, packaging materials such as implants, and even machinery available in hospitals, due to ease of handling and cleaning.
- Energy and Power – These are used while designing and developing processes such as creating heat exchangers, pipelines, and pressure containers, as they have to withstand high-tension conditions.
It can be noticed here that there is a clear attempt to balance the stress on both functional and structural aspects of stainless steel plates in their integration in different industries.
Use in Pipelines
Stainless steel plates are the backbone of pipelines and other structures that are exposed to flow requirements, such as high-pressure, high-temperature gases or liquids, in certain industries. However, the highlight of this material is its strength, particularly its ability to withstand oxidation. There is a ready application in severe conditions, such as the construction of pipelines that will carry highly corrosive acid or base solutions, as well as in laboratory pipelines and on high-sea offshore pipes. Stainless steel is preferred in this industry due to its strength, which limits breakage or cracking in long steel pipe sections. Presently, great emphasis is placed on improving the quality of joints, and special types of stainless steels are being produced for oil/ gas and water sectors in more diverse forms that offer improved quality and safety. These and other recent advancements underscore the importance of stainless steel as a vital material in the construction of pipeline infrastructure.
Heat Exchangers and Offshore Platforms
Heat exchangers have a significant impact on the operation of an offshore structure, as they are essential for enabling the system to continue operating in harsh marine environments, which are often very hot and challenging. They operate in water to heat or cool another fluid, thereby improving the efficiency of engines, compressors, and other mission-critical equipment. Another consideration in selecting the most suitable heat exchangers for use in offshore applications is the atmospheric conditions listed under “Offshore Environments”.
In addition, a large number of offshore plate-and-frame heat exchangers are used owing to how they’ve been designed as well their relative ease of servicing which makes it easy to manage the available space — this is a very important fact bearing in mind the limitations of space on such in structures. There has been an improvement in the design process with the help of Computational Fluid Dynamics (CFD), which now provides a high level of accuracy in modeling the workings of flow and heat conduction processes, enabling the enhancement of system design. This has, however, improved the operational environment even in the challenging field of offshore by the use of advanced features such as plate designs and heat exchangers with increased turbulence factors.

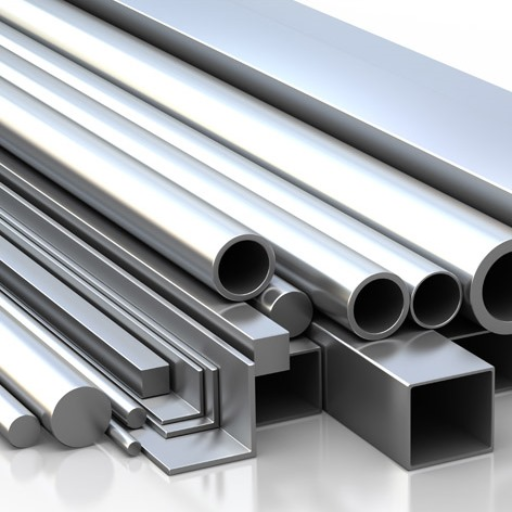

Grades and Types of Stainless Steel
Austenitic Stainless Steel
This type is the most widespread with high corrosion resistance, ductility and weldability. Stainless steel is an alloying element, and it is alloyed with austenitic stainless steel in grades 201, 301, and 304, for use in the manufacture of biochemical reactors, pipelines, brine tanks, etc.
Ferritic Stainless Steel
Ferritic stainless steel offers moderate corrosion resistance and good thermal conductivity, making it widely used in the automotive sector, particularly in automotive exhaust pipe systems and industrial products. For example, grades 430 and 409 are some of the most typical cases.
Martensitic Stainless Steel
Additionally, it is worth noting that martensitic stainless steel grades, such as 410 and 420, are characterized by high strength and resistance to wear – they are typically used for knife and tool blades. However, they have fair corrosive properties.
Duplex Stainless Steel
Duplex stainless steels are between austenitic and ferritic steels and offer high strength along with better resistance to stress corrosion cracking. A favored grade is 2205 commonly used in chemicals and marine industries.
Compare Common Grades
| Grade | Type | Key Features | Applications |
|---|---|---|---|
| 304 | Austenitic Stainless Steel | Excellent corrosion resistance | Food processing, chemical containers |
| 304L | Low Carbon 304 | Improved weldability, reduced corrosion risk | Welded structures, tanks |
| 316 | Austenitic Stainless Steel | Superior resistance to chlorides | Marine environments, chemical equipment |
| 410 | Martensitic Stainless Steel | High strength, moderate corrosion resistance | Blades, tools, pumps |
| 420 | High Carbon Martensitic Steel | Enhanced hardness, wear resistance | Surgical instruments, cutlery |
| 2205 | Duplex Stainless Steel | High strength, stress corrosion resistance | Marine, chemical processing |
| A516 | Carbon Steel Plate | Excellent weldability and toughness | Pressure vessels, boilers |
| A516 Gr 70 | High Strength Carbon Steel | Improved durability, high pressure resistance | Boilers, petrochemical equipment |
Duplex Stainless Steel and Its Advantages
Dual-phase stainless steel has an unusual chemistry that is most widely recognized for its content being almost equal to austenitic and ferritic steel, respectively. However, this alloy should not be generalized, as it offers more consolidated properties. Perhaps, it is the very reason that several users think that this material is the ultimate solution for heavy machinery, most of which operates in some of the harshest conditions. Stress corrosion cracking, as a type of failure that arises in plants in salty mediums, is also minimized by duplex, which means it will be used in the marine and nuclear industries. In addition, with enhanced levels of strength and toughness, duplex stainless steel can replace conventional stainless steels, but in a much thinner and lighter form, without compromising its structural integrity. Lastly, it maintains the level of demand due to its cost-effectiveness, the primary reason being the relatively low amount of nickel and molybdenum it consumes compared to the majority of high-end austenitics, which have similar strength levels. This synergy of strength, resistance, and economy has led to significant innovations in the development and application of this steel in various industries, including power, chemicals, and building construction.
Choosing the Right Grade for Specific Applications
To meet specific application requirements, it is essential to select the appropriate material grade, which can be particularly challenging when the exposure and deformation conditions are unknown. Specifically, some of the most important factors for considering the appropriate grade are the adequacy of mechanical properties, corrosion resistance, temperature limits and financial considerations. The case in mind is the use of a variant of supersaturated iron – that is, duplex iron-based grades such as 2205, which prove inevitable in very aggressive environments where extremes in strength and chloride-induced stress corrosion cracking (SCC) resistance are required. On the contrary, where this type of environment is not that severe, for example, low corrosive mild environments, ferritic grades, including grade 439, will offer a cost-efficient choice.
Performance specifications and validation data also influence the choice of materials, most especially in industries that are likely to experience aggressive natures in their materials, like the chemical sector, where the use of high-technology metal is a century away. To illustrate, austenitic stainless steel grade 316L does well in the presence of acidic media. Equivalently, certain applications in energy industries may demand specific grades like that of 310S, which offer the same olefins together with the ability to retain the functioning capacity of these materials such as dimensional and pressure resistance parameters as defined herein, following exposure to high temperatures.

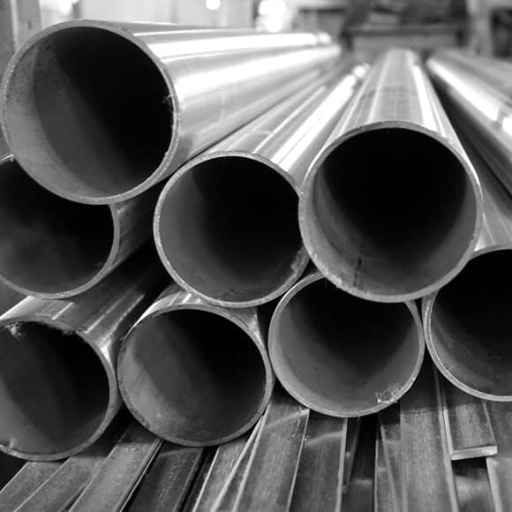

Comparative Analysis: Stainless Steel vs. Other Materials
Stainless steel possesses numerous benefits. This is in part due to its properties of being strong, endurable, and resistant to decay. Unlike a carbon solid, which must undergo various processes to be corrosion-free, stainless steel can resist rusting due to its chromium, provided it has formed a passive skin. Stainless steel is lighter than other materials and has a high malleability, making it ideal for sculpting. On the other hand, however, this metal is less strong and less tolerant of heat.
Stainless steel is a durable, long-lasting, and rugged material that possesses many advantages over polymers. In particular, it does very well in harsh conditions. Polymers however are best used in cases where electrical insulation or weight factors come into play. And yet, in terms of structural applications, stainless steels seem to be superior to most composite materials just because they are more consistent and simpler to work with, although composites may be lighter in some circumstances. All of this portrays stainless steel as a highly dependable material that can be utilized in various industries where both strength and stable performance are required.
Why Stainless Steel Plates Are Often the Superior Choice
Regarding stainless steel plates, a key factor is that they are highly resistant to corrosion, even in harsh environments. Stainless steel is mainly made of iron, chromium, and other metallic substances, of which nickel and molybdenum are also constituents; the material has an essential feature of creating a passive oxide film on its surface that discourages oxidation. This particular characteristic makes it rather suitable for marine engineering, the processing industry, and the area of food and beverages, or where there is excessive exposure to moisture, chemicals, or salt solution and other such hostile environments, which could easily result in wear and tear. Some of these enhancements are directly correlated with the increased use of different grades of stainless steel, specifically 304 and 316, due to their superior resistance to pitting and general corrosion caused by chlorides, as well as atmospheric conditions, which translates into prolonged service life and reduced maintenance activities.
One advantageous feature of stainless steel plates, aside from being resilient, is their preferential structural ratio of weight to strength compared to other commonly used materials. This is a very significant factor because it allows engineers and designers to create long-lasting items that can carry a substantial load without being overly bulky. Specific kinds, for example, duplex stainless steels, possess better mechanical strength due to their dual-phase microstructure, resulting in the use of thinner and lighter sections. In other words, engineering components can be made lighter without any other advantages or disadvantages. This aspect is particularly applicable to several sectors, such as aerospace, automotive, and green technologies, as weight-sensitive critical applications require a robust structure.
Comparison with Carbon Steel and Other Alloys
| Parameter | Stainless Steel | Carbon Steel | Other Alloys |
|---|---|---|---|
| Corrosion Resistance | High, resists moisture and chemicals | Low, prone to rust | Varies, may include corrosion protection |
| Strength-to-Weight Ratio | High, especially in duplex grades | Moderate, heavier for similar strength | Depends on alloy type |
| Heat Resistance | Excellent, suitable for high temperatures | Low to moderate, limited applications | Varies, nickel-based alloys excel |
| Cost | Higher due to alloying elements | Lower, economical | Widely varies, dependent on composition |
| Machinability | Moderate, requires special tooling | High, easily machined | Varies, some alloys are challenging |
| Weldability | Good with proper techniques | Excellent, widely used in welds | Some require expertise or special methods |
| Durability | High, long service life | Moderate, may degrade over time | Depends on use case |
| Applications | Aerospace, energy, medical, tools | Construction, pipelines, everyday goods | Aerospace, electronics, other industries |
Reference Sources
-
“Continuous Improvement of Welding Quality on DSS in Oil and Gas Industries”
- Key Findings: This study focuses on improving welding quality for Duplex Stainless Steel (DSS) components used in the oil and gas sector. It highlights the importance of precise welding techniques to enhance durability and resistance to corrosion.
- Read more
-
“Roller Straightening Process and FEM Simulation for Stainless Steel Clad Plate”
- Key Findings: This paper discusses the use of stainless steel clad plates, which combine corrosion resistance with mechanical strength, making them ideal for oil and gas applications.
- Read more
