Because it has so many great properties including corrosion resistance, strength, and ability to be molded into different shapes, 304 stainless steel plate is used and dominates applications in many fields. The objective of this blog post is to describe the 304 stainless steel plate dimensions and specifications. We will focus our discussion on certain metrics such as standard thicknesses, width and length options, tolerances, and their effects in various applications. Moreover, the structural dimensions outlined above will make it easier for engineers in manufacturing, construction, and other fields to understand the dimensional requirements and select the most appropriate component for their particular case. In conclusion, it seeks to inform the reader of the outstanding industrial applications of 304 stainless steel plates and their dimensional characteristics.

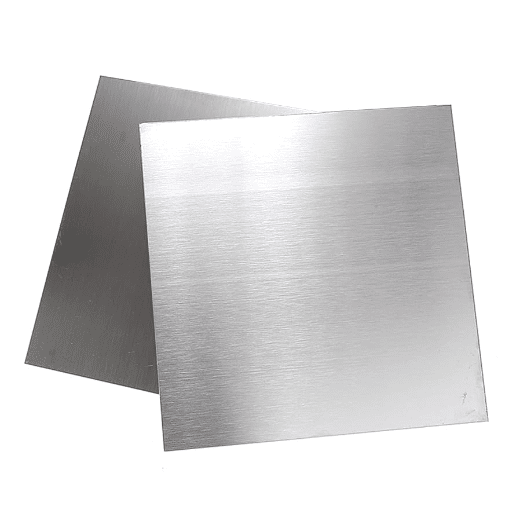

What are the Standard Plate Sizes in Stainless Steel?
In industrial applications, plain plates made of 304 stainless steel are supplied in different standardized dimensions because of their popularity in many applications. Thicknesses tend to be in the range of 3/16 inches to 6 inches although specialized uses may demand thinner gauge sheets. Common widths include 48 inches, 60 inches, or 72 inches while length increments include 96 inches, 120 inches, and 144 inches, respectively. Such standard dimensions facilitate ease of transportation and fitting in manufacturing practices. Custom sizes are however subject to changes to suit the requirements of specific projects and provide versatility for special applications.
Common Plate Thickness and Width
Thick plates of 304 stainless steel are in most instances of thicknesses of between 3/16 inch (4.76 mm) to 6 inches (152.4 mm) with extreme gauges such as 1/8 inch (3.175 mm) and even less being applied for particular needs. For width, the standard choices are generally 48 inches (1219.2 mm), 60 inches (1524 mm), and 72 inches (1828.8 mm) allowing various industries ample options. These dimensions are standardized and meet the requirements of the relevant ATSM international standards facilitating ease of use with industrial production and machining tools. There are also off-the-shelf increments available to meet standard requirements hence eliminating delays in the specifications.

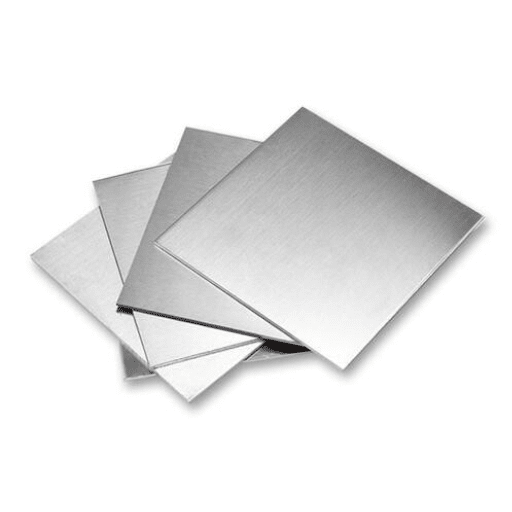

How to Choose the Right Size for Your Project?
The choice of stainless steel plates in a given project requires careful determination of the technical and operational parameters. Such parameters include load, environmental, and fabrication parameters. There are standard thicknesses suitable for structural components and are determined as a result of load and stress analysis. Common engineering practice gives some standards. For example:
- Thickness: Light plates (for example, 1/8 inch or 3/16 inch) are sufficient for lightweight projects such as capping or decorative use whilst heavy plates (1 thick inch to 6 inches) are appropriate for uses in strong materials such as parts and industrial appliances.
- Width and Length: The layout, cutting plan or intended use should call for standard widths and lengths such as 48, 60, 72, 96, 120, and 144 inches to reduce wastage of materials. Standard sizes should be resorted to only where they tend to be unfavorable to the design specifications.
Also, check that the welding, bending, and cutting plate size will fit the construction processes. To avoid any problems, check whether sufficient materials are available and whether they are in compliance with ASTM or other relevant standards. To make the project cost-effective and efficient, do some preliminary calculations from the technical data relevant to the project.
Comparing Steel Sheet and Plate Dimensions
In a practical situation, while still attempting to identify areas for further enhancement, I compare numbers related to sheet and plate types, mainly focusing on their thicknesses and intended uses. Metal sheets are thirty-six inches wide and quite thin, with maximum thicknesses reaching around three-sixteenths inches, which makes them suitable for lightweight and exact applications such as automotive bodies. Metal plates, on the other hand, come in thicknesses starting from a quarter of an inch or more, and are suitable for much heavier applications such as mechanical components and metallurgy construction. The standardized sizes are also placed in the wider context—sheets are all manufactured in the right size, but plates are rather used in big sizes, connected with demanding types of work. Knowing such differences, I make the right judgment on those materials concerning how to string the members bear or make it and against what conditions it will work.
How Does the 304 Grade Affect Steel Plate Dimensions?
Grade 304 primarily uses austenitic-type stainless steel due to its mechanical properties and fabrication considerations, which profoundly impact the steel plate dimensions. With great strength-to-weight ratio and good corrosion resistance, grade 304 steel is used in such environments which involve exposure to moisture or mild chemical attack. Its strength makes it possible to produce thinner plates that are still structurally sound for lightweight applications. Furthermore, grade 304 steel can be bent easily into shape, so it can be made into thick geometries without requiring too much material. However, while determining the plate dimensions for precise applications, the advantages of machinability should be kept in perspective because over-hardness might require high-quality cutting tools or slower machining speeds.
Properties of 304 Stainless Steel
A favorite among engineers and architects is the 304 stainless steel as it is useful and powerful. It is mainly made of iron with the highest percentage comprising 18-20 % chromium and 8-10.5% nickel which ensures great resistance to any form of corrosion, especially in an oxidizing environment. Manganese, silicon, and carbon are also present in trace amounts.
Some Key Technical parameters include:
- Corrosion Resistance
It shows remarkable strength in resisting rust and corrosion in conditions facing moisture, moderate chemicals, or atmosphere.
However, r-pitting corrosion may occur in environments having high concentrations of chlorine or salt.
- Basic Mechanical Properties
Tensile Strength: ~505 MPa (73,200 psi)
Yield Strength: ~215 MPa (31,200 psi)
Longitudinal Elongation: ~40%
The above indicators allow using them in structures where strength and some flexibility are critical operational factors.
- Thermal Properties
Melting Point: 1400 – 1450 °C (2552 – 2642 °F)
Strength is maintained even under moderate heat conditions but extreme temperature levels exceeding 870 °C (1600 °F) result in loss of strength in the material.
The coefficient of thermal expansion is about 16.5 µm/m·°C.
- Formability and Weldability
High ductility and work hardening features allow 304-grade steel to be formed into delicate shapes easily.
TIG and MIG welding along with resistance welding can be done without any difficulties. However, post-weld annealing is not required except if heavy service is expected.
- Density and Hardness
Density is estimated to be around: ~8 g/cm³.
Hardness values are also condition-dependent, with the annealed values giving a Brinell rating (HB) of about 123.
- Machinability
Is easily machined but is best at low-speed cutting with proper tooling due to work hardening while being processed.
With these attributes in mind and the requirements of the application in focus, it is possible to select and size 304 stainless steel for optimal and balanced performance.
Impact of Thickness on Corrosion Resistance
The thickness of 304 stainless steel affects its corrosion resistance as it can instill a more effective passive oxide layer. Moreover, it is inherently stronger because it is more difficult to corrode thoroughly and therefore internally deteriorate in corrosive environments. Increased thickness for example is particularly useful in environments containing chloride ions which promote pitting corrosion as it prevents localized failure of the material.
In addition, thinner sheets or components are more susceptible to mechanical injuries as well as abrasions to the surface which attack the passive protective layer and in turn, nurture the corrosion process. Where a high risk of damage may be present from harsh environments, applications usually employ thicker material to mitigate such concerns.
In designing for corrosion resistance in thickness, environmental exposure and the forces exerted on the material should be fully appreciated for their importance in maintaining both the functional integrity as well as the lifespan of the material. This provides the best trade-off between performance and cost efficiency.

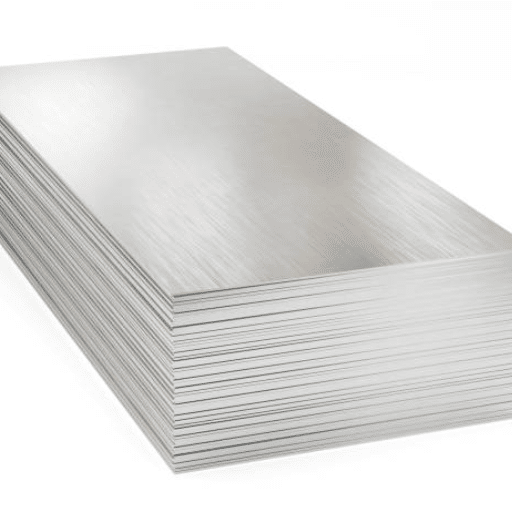

Applications of 304 Stainless Steel Plate
The 304 stainless steel plate is embraced in many applications due to its ease of use, strength, and corrosion-resistant properties. It is mainly used in architectural paneling, roofing, and cladding after undergoing finishing processes during building construction as well as providing great design. In the food and beverage industry, it is used fabrication of utensils and storage vessels like counters and tanks which are thoroughly cleaned, since it is unblemished. Furthermore, in the chemical and pharmacological industries, 304 stainless steel is used in the structural fabrication of transformers, reactors, pipelines, and pressure bottles due to its ability to withstand harsh and corrosive substances. It is further an essential component of the automotive and aerospace industries as it is used in exhaust systems, engine parts, and strength components to guarantee performance under high pressures and temperatures. For many tough applications, Its versatility and hardness as well as durability make it a practical option.
How to Work with Stainless Steel Sheet and Plate?
Capable work with the rust-free stainless steel sheet or plate also requires certain techniques to maintain the properties of the particular steel. Cutting operations can be done by shear, plasma cutting, or laser cutting which would achieve clean edges without fat zones. During bending or form – making the use of proper tooling and proper force is very important to avoid cracking or deformation. For non-rust construction materials, it is suggested to use wire or filler materials for corrosion resistance and to prevent contamination of the materials with ferrous non-stainless steel. grinding, polishing and other surface finishing procedures should also be carried out using tools made for stainless steel to avoid embedding other particles that would affect the corrosion resistance. Also, taking into account certain practices for the handling and storage of the materials is essential to prevent scratches or contamination. This last point is important so that the material is well protected before its use.
Cutting and Polish Techniques
When cutting a stainless steel sheet or plate, I always perform a laser cut if precise work is needed, a shear if mass production is required, or a plasma cut when cutting thicknesses above 5mm while keeping heat zones quite small. For the grinding step, the abrasives for stainless steel are employed, and the steps are taken in the range from the coarsest to the finest grits, depending on whether a matt or polished finish is needed. I ensure that all the tools used are labeled for stainless steel only to avoid contaminating the stainless steel which would reduce its effectiveness against corrosion.
Ensuring Precision with Laser Cutting
The method of laser cutting has high accuracy in stainless steel sheet or plate processing with minimum waste of the material. It involves the application of a focused beam of laser to heat and melt the materials, hence making it possible to make clean cuts even with a tolerance of ±0.1 mm. Some of the predominant advantages of laser cutting include the ability to automate processes with complicated forms, smooth cut edges, and the performance of different steel thicknesses without affecting the quality. These variables such as the beam power, cutting speed, and gas types (nitrogen or oxygen in most cases) have to be carefully controlled for desirable cut results. However, specific settings of the laser and regular service of the cutting equipment are necessary to avoid the occurrence of burrs or cut edges that are not uniform and Cut clean edges that meet industrial and commercial standards.
Maintaining Finish and Quality
To uphold the finish and quality of stainless steel, the set best practices during the processing and cleaning maintenance should be observed. The regular cleaning of the material with nonabrasive solutions also reduces the chances of contamination and staining of the surface with dirt particles and other materials. While polishing, it is necessary to employ stainless steel polishing abrasives and to use finer and finer grits to achieve a flat smooth surface progressively. Stainless steel scratches and discoloration can be avoided by using different tools and equipment so that no contamination can occur.
During the cut and form processes, however, the unnecessary overheating of the metal surface should be avoided since such an act would degrade the corrosion-resistant characteristics of stainless steel. Factors such as the use of sufficient coolants and regulation of heat during the cut or weld process can help alleviate the heat effect. Further, timely maintenance about inspection and application of protective layers can help improve the life span and aesthetic appeal of the material. Adhering to these procedures makes sure that stainless steel does not lose the desired strength and aesthetic properties during and after the intended operation.
What is the ASTM A240 Specification for Stainless Steel Plate?
ASTM A240 specification classifies all industry standards regarding requirements such as tensile properties, heat treatment, and stoichiometry for chromium and chromium-nickel stainless steel plate, sheet and strip used focused for pressure tanks and general applications. It details the elements within the construction of the part to make sure that it has been built to stringent qualification and performance standards. This specification covers a lot of grades of stainless steel for which different industrial purposes can be carried out for corrosion and structural applications.
Understanding ASTM A240 Standards
I have an impression that the ASTM A240 specification relates to plates, sheets, and strips of chromium and chromium-nickel stainless steel. The latter can be utilized in the construction of pressure vessels and for various other industrial purposes. The specification outlines the basic chemical elements, which include minimum amounts of chromium and nickel, which are indispensable for adequate corrosion resistance. Furthermore, it defines the essential mechanical features like high tensile and yield strength, as well as the necessary heat treatment processes for performance to be optimal. The ASTM A240 specification is broad in grades and appropriate for different purposes, thus providing materials that possess appropriate strength and resistance to environmental pollution. This standard is a very useful standard for engineers who handle stainless steel under such harsh conditions.
Comparison with Other Specifications
ASTM A240, unlike ASTM A480 or ASTM A276, says something specific about stainless steel materials which are useful in pressure vessels and other general applications. For example, A480 covers general requirements of flat-rolled stainless steel and heat-resisting steel products but it does not specifically focus on the needs of pressure vessel materials. Conversely, ASTM A276 being centered on stainless steel bars and shapes cannot apply to plates, sheets, or strips.
Key technical parameter differences include the following:
Material Application:
- ASTM A240: Plates, sheets, and strips intended for pressure vessels and industrial use.
- ASTM A480: Flat Rolled Steel, horizontal, wider range, not for pressure vessels specifically.
- ASTM A276: Bars and shapes, not intended for flat rolled products.
Chemical Composition:
- ASTM A240 indicates 18% minimum chromium and 8% minimum nickel as sufficient for corrosion resistance.
- ASTM A480 describes similar ranges for these alloys but with a wider scope of flat-rolled commodities.
- ASTM A276 may vary in composition since it is more devoted to bar and shape manufacture.
- Mechanical Properties:
- ASTM A240 provides tensile strength like 75 ksi and yield strength such as 30 ksi which are critical for pressure applications.
- ASTM A276 does not consider high tensor properties to be of higher significance as they conform more to the structural properties of the bars.
Heat Treatment:
- According to ASTM A240, heat treatment is essential for the best performance.
- Depending on the application of the bar, ASTM A276 may require heat treatment or it may not require this treatment.
Such a comparison outlines the A240 standards regarding supplying niche materials for high-stress and corrosive environments, thus making them ideal for pressure vessels and other critical industrial uses.
Why ASTM A240 is Ideal for Type 304
ASTM A240 is the norm utilized for chromium and chromium-nickel stainless steel plates, sheets, and strips for pressure vessels and other general usage. AISI Type 304 stainless steel, satisfies more requirements for chemical and mechanical properties and performance standards. A240 standard is also very useful to Type 304, austenitic type stainless steel since it ensures high strength, easy fabrication, and excellent corrosion resistance to this grade of steel.
The reasons are among others:
- Chemical Composition: One of the requirements set by ASTM A240 for Type 304 stainless steel is that it should contain at least 18% chromium and 8% nickel. Such composition enhances resistance to oxidation and corrosion in hostile conditions such as industrial and marine environments. This composition supports long-term durability under exposure to harsh conditions.
- Mechanical Properties: The standard also considers some tensile strength to be not less than 75 ksi and yield strength to be not less than 30 ksi so that Type 304 could withstand Pressure vessels and some fabrication and structural applications, which must be able to withstand stress and loading conditions.
- Heat Treatment and Surface Quality: Controlled heat treatment processes per ASTM A240 can also optimize the microstructure and overall performance of Type 304 stainless steel. In addition, it establishes standards for surface finish which is critical for cosmetic purposes and in assisting in corrosion protection.
- The ASTM A240 and Its Applications: Occupational Specification Type 304 meets the demands required in industries such as food, chemicals, and construction as highlighted by the governing regulations.
With adherence to the requirements and other measures specified in ASTM A240, Type 304 stainless steel has a higher degree of dependability and adaptability thus making it suitable for use in a wide range of applications where both ‘shape’ and ‘work’ are needed.
Where to Buy 304 Stainless Steel Plates Online?
Purchasing 304 stainless steel plates is possible from many online suppliers who specialize in industrial materials. Well-known websites include OnlineMetals.com, Metal Supermarkets, and Metals Depot, providing accurate specifications, bespoke dimensions, and shipping. Moreover, such well-known suppliers as McMaster-Carr or Grainger offer 304 stainless steel plates for the defined purpose and are guaranteed to meet ASTM requirements. Most suppliers also provide good customer support and technical services that help to choose the required product.
Finding Reliable Suppliers and Stock Options
To find trustworthy vendors and stocks for 304 stainless steel plates, I recommend online suppliers such as OnlineMetals.com, Metal Supermarkets, and Metals Depot. They offer detailed product information, expedite shipping, and allow customers to tailor sizes to their requirements. Every vendor of steel plates is compliant with ASTM requirements. These steel plates are formed in high standards of manufacturing and are ideal for diverse industries. Furthermore, they have friendly customer service features including, live chat or technical assistance, which makes the purchase process even quicker and more straightforward.
Evaluating Shipping and Delivery Options
As I study the alternative shipping and delivery methods for my orders, I consider time and cost, efficiency, and reliability since all those are important if the project is to be completed on time. A comparative analysis of such leaders of the market as OnlineMetals.com, Metal Supermarkets, and Metals Depot shows that any of them have flexible delivery periods, fast shipping options, and acceptable prices. To give an example, OnlineMetals.com standard and express shipping includes full track and trace, while Metal Supermarkets suggest that customers can in many areas get their items today or delivery is done the same day. At the same time, Metals Depot focuses on the ability to estimate delivery charges in the process of ordering the materials and also quick shipment of available goods. Because of these characteristics, it is impossible to consider the choice of a supplier as one based on the urgency and cost of the order.
Understanding Quantity and Wholesale Options
Evaluating the quantity and wholesale options for 304 stainless steel plates’ wholesale demand necessitates an analysis of the suppliers conveniently available in the market. OnlineMetals.com allows smaller and medium orders without a minimum order requirement exemplifying clients who are undertaking smaller projects or parts making. Metal Supermarkets, however, provide discounts to bulk purchases and offer options to regular customers, thus suitable for companies that require constant top-ups of stocks. In the same spirit, Metals Depot provides bulk orders and prices wholesale while providing a bulk purchasing option that will provide discounts for large quantities of orders. The three suppliers also guarantee the impression of the intended quantity for every specific matter by providing pricing structures for the intended quantity for every specific matter.
References
Frequently Asked Questions (FAQ)
Q: What are the standard dimensions for a stainless steel plate?
A: Standard dimensions for stainless steel plates vary depending on the application, but common sizes include thicknesses ranging from 3mm to 200mm, and lengths and widths from 1000mm x 2000mm to 1500mm x 3000mm. For custom sizes, please contact us.
Q: Can I get a stainless steel plate cut to size?
A: Yes, stainless steel plates can be cut to size according to your specifications. If you have specific requirements, feel free to call us for a quote.
Q: What is the difference between hot-rolled and cold-rolled stainless steel plates?
A: Hot-rolled stainless steel plates are processed at higher temperatures, which generally results in a rougher surface. Cold rolled plates are processed at room temperature, offering a smoother and more precise finish, often used when a dull or brushed finish is needed.
Q: What is a 2b finish on stainless steel plates?
A: A 2b finish is a smooth, dull, and reflective surface that is achieved by cold rolling, annealing, and pickling processes. It is the most common finish for 304 stainless steel sheets and is suitable for various applications, including hospital equipment and dairy products.
Q: Are stainless steel plates magnetic?
A: The magnetic properties of stainless steel plates depend on their composition. Generally, 304 and 316 stainless steel plates are not magnetic, but some grades with different compositions can possess slight magnetic properties.
Q: How can I identify a diamond plate?
A: A diamond plate, often made from aluminum or stainless steel, features a raised, diamond-shaped pattern on one side. This pattern provides traction and is commonly used in industrial and architectural applications.
Q: What types of finishes are available for stainless steel plates?
A: Stainless steel plates can have various finishes, including mill finish, brushed finish, and more. The choice of finish depends on the intended application, whether for aesthetic or functional purposes.
Q: Can stainless steel plates be customized for specific applications?
A: Yes, stainless steel plates are versatile and can be customized to meet specific requirements, including size, finish, and other specifications. For customization options, please contact us, and our team will be ready to assist you.
Q: What are stock plates, and how are they used?
A: Stock plates refer to pre-manufactured stainless steel plates that are kept in inventory and ready for immediate shipment. These plates are used in various industries, providing a quick and efficient solution for immediate requirements.
