Steel is extensively utilized in various industries because it is durable and rust resistant while also being visually appealing. 304 and 316 stainless steel are two of the broad-spectrum grades of steel that are highly favored, particularly in regard to plates and sheets. Like all other asset classes, it’s important to know the basics of a company before investing in it, and the same goes for business as well. Whether you are a professional in construction, food processing, or manufacturing, or someone just seeking material information, this article serves to enlighten you. This article will help you appreciate the differences between 304 and 316 stainless steel and their performance in other changing environments.

What’s the Difference Between Stainless Steel Plate and Sheet?

Stainless steel plates have a thickness greater than 6 mm and heavy-duty applications like construction and shipbuilding utilize them. Steel sheets on the other hand are usually under 6 mm thick which means they are best suited for architectural and automotive projects. Even though these two steel forms share very similar material properties, they are picked based on how specifically the project needs to perform.

Thickness: The Key Distinguishing Factor

so sheets and plates’ metal distinction depends mostly on thicknesses, which highly defines their applications. Being below 6mm, sheets are exceptionally flexible and suited for projects that need light-weight materials. At the same time, plates, which are thicker than 6mm, are strong and durable for heavy-duty use. This classification guarantees that an appropriate material is chosen for the job. An example would be a lightweight automotive component or a heavy component for a structural framework.

Applications: When to Use Plate vs. Sheet

Where strength and durability are required, such as construction, shipbuilding, and heavy machinery, plates are ideal. On the other hand, in automotive body panels, appliances, and even complex architectural designs, sheets are more useful because they provide flexibility and lightweight benefits. Evaluating your project will help pinpoint the best material.

Fabrication Considerations for Plate and Sheet

In regard to the fabrication process, I always pay attention to the distinct characteristics of plates and sheets for an optimal outcome. Because of their sturdy thickness, plates are perfectly suited for processes such as welding, drilling, or cutting – where the object’s structural soundness is essential. In contrast, more pliable sheets are best used for precise bends, stamping, or more detailed shape forming. To ensure efficiency is accomplished while meeting the performance standards of the final product, the fabrication technique needs to correspond with the material’s characteristics.

Understanding 304 Stainless Steel: Properties and Applications

Alloys such as 304 stainless steel are fabricated and utilized for various purposes because of their corrosion resistance, ease of fabrication, durability, and strength. 304 stainless steel contains iron as its base metal, with chromium and nickel as its primary constituents. In the annealed condition, it is non-magnetic, while its high strength gives it high tensile strength. 304 stainless steel’s oxidizing and temperature withstanding capabilities along with 304’s sanitary features, make it perfect for food processing equipment, medical instruments, architectural structures, and chemical containers. It is adopted in a wide range of industries owing to its versatility.

Composition and Corrosion Resistance of 304

Of course! The properties of 304 stainless steel are very good due to carefully balanced ratios of some elements, so let me explain how this works:

1. Chromium (18-20%)

Chromium is the primary factor for 304 steel’s capability of resisting corrosion. Chromium creates a passive corrosion resistant oxide layer which prevents oxidation and rusting of the base material. For this reason, 304 stainless steel remains in service in wet and aerial conditions.

2. Nickel (8-10.5%)

Nickel contributes to the strength, ductility and impact toughness of 304. This is also the element that increases the temperature range for which the material can be used, so it is suited for many uses.

3. Carbon (up to 0.08%)

4. Manganese (up to 2%)

Manganese improves the hot working properties of 304 stainless steel and adds strength to it, which is its primary contribution.

5. Silicon (up to 0.75%)

Silicon is included primarily to add oxidation resistance, particularly when used at elevated temperatures.

6. Other trace elements

For resistance to corrosion, 304 stainless steel grades perform well in most regular environments. Its primary strength is its ability to withstand oxidation, making it perfect for places with high humidity or moderate amounts of acids or salts. But, in more aggressive environments like in high chloride areas, 316 grades would perform better due to its added molybdenum content.

All in all, the balance of elements in 304 stainless steel is what guarantees versatility and longevity in many industries.

Common Uses of 304 Stainless Steel Sheet and Plate

304 stainless steel sheet and plate are widely used across various industries due to their superior corrosion resistance, excellent formability, and strength. Common applications include kitchen equipment like sinks, countertops, and utensils, as well as architectural elements such as wall panels and elevators. Additionally, they are extensively used in automotive and transportation components, chemical processing equipment, and medical devices where hygiene and durability are critical. Their versatility and reliability make 304 stainless steel a trusted choice for both functional and aesthetic purposes.

Comparing 304 to Other Stainless Steel Grades

While comparing the various grades of stainless steel, I always point out its combination of strength, corrosion resistance, and cost. Take for instance, 316 stainless steel. Due to having a molybdenum portion, it has the highest corrosion resistance, thus is best suited for containing marine or chemical activities. However, for general purposes 304 remains to be the most cost-effective and performs well in mild corrosive environments. On the other hand, 430 stainless steel is much cheaper in price, but does not possess the same corrosion resistance and weldability. From my experience, selecting the right grade depends heavily on the specific environment and performance requirements. 304 does differ from the rest due to its multi-functional nature.

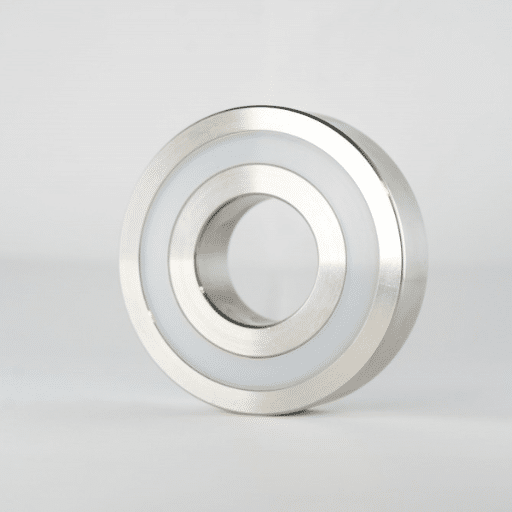

316 Stainless Steel: Marine-Grade Excellence

316 stainless steel is widely known for its outstanding use in harsh environments such as marine and chloride rich environments. The unrivaled corrosion resistance from pitting and crevice corrosion makes it highly durable due to a significantly greater molybdenum content. Moreover, 316 stainless steel provides great strength, weldability, and reliability to extreme temperatures. Because of this, it becomes highly suitable for critical marine equipment, chemical processing, and food industry machinery. While it may be the most costly option, the level of trustworthiness and longevity that 316 stainless steel provides greatly overshadows the initial investment cost. For those harsh environments, complete performance and satisfaction is guaranteed when using 316 stainless steel.

Enhanced Corrosion Resistance in Marine Environments

The use of 316 stainless steel in marine applications has been transformative. Its usability in these environments is due to its corrosion-resistant nature, which guarantees ruggedness is preserved in the most extreme saltwater conditions where normal materials would deteriorate. Personally, I have witnessed how its molybdenum content prevents pitting and crevice corrosion, and enhances its corrosion resistance. For shipbuilding, offshore structures, or marine fasteners, I always emphasize the use of 316 stainless steel. My experience tells me that this material will always provide the best value and dependability over time. It outperforms every material in providing corrosion resistance in marine applications.

316 vs. 304: When to Choose Which Grade

When selecting between 316 and 304 stainless steel, the primary consideration is the exposure environment. If an application does not require high levels of corrosion resistance, 304 will provide great value. However, 316 will be the superior option in high salinity environments, exposed to chlorides or moderate to severe weathering corrosion such as in marine or industrial processes. The presence of molybdenum in 316 provides enhanced corrosion resistance. While 316 is more expensive than 304, it also ensures durability and lower maintenance costs in extreme settings. As such, 304 is ideal where adaptability and low cost are essential, while 316 is perfect when strength and performance are critical in corrosive environments.

Industrial Applications for 316 Stainless Steel

316 stainless steel has thrived in some of the most challenging environments. This alloy’s unrivaled ability to resist corrosion makes it the preferred option in chemical processing, marine engineering, pharmaceuticals, and other sensitive industries. Furthermore, I have also found 316 indispensable in the food and beverages sector, particularly in equipment that needs heavy washing with strong sanitizers. Truly, the immense durability over such extreme conditions coupled with strict hygienic compliance makes it a critical material in these sectors.

Finishes and Surface Treatments for Stainless Steel

There are many options when it comes to the finishes and surface treatments for stainless steel, as they can be tailored to best suit specific applications. For example, common finishes include brushed, polished, and matte, which showcase different levels of shine and texture to the stainless steel. Treatments such as electropolishing improve corrosion resistance and cleanliness, while passivation enhances the protective chromium oxide layer. These finishes and treatments enhance the material’s aesthetic appeal and determine its durability and performance in demanding environments. These broad options guarantee suitability for varying industrial and commercial uses.

2B Finish: The Industry Standard

I can say that the 2B finish is prevalent because it is the perfect touch-up for almost any industrial application as a finish. The 2B finish is obtained from a series of final light cold rolling that gives a highly smooth and reflective surface, which is easy to clean and is also highly resistant to corrosion. It is developed for various industries from food manufacturing to medical equipment where utmost cleanliness and hygiene are of great importance. For people looking for useful and effective stainless steel finishes, none other than finish 2B is as useful as the other finishes.

Brushed and Polished Finishes: Aesthetics and Functionality

Brushed and polished finishes are vital for cosmetic and functional applications. Brushed finishes are matte with a directional texture which conceals petty scratches: this makes them very useful for architecture and interior designs. Polished finishes provide a mirror-like surface that improves brightness and provides a sleek and sophisticated look. Both finishes can withstand the corrosion and toughness of stainless steel, meeting the desired aesthetic without affecting functionality.

Specialty Finishes for Unique Applications

I have come across specialty finishes that elevate designs beyond their expected potential. These finishes serve specific purposes, combining design and utility splendidly. An example would be bead blasting. This type of finish makes use of beads which create a textured surface for modern facades. More sophisticated interiors utilize brushed patterns which add an element of desertion. For more advanced designs, etched or colored finishes provide unmatched adaptability, molding stainless steel to branding or artistic expressions. Each specialty finish has its own unique strengths, making certain that style and practicality are both accomplished as needed by the architects and designers.

Fabrication Techniques for Stainless Steel Plate and Sheet

Stainless steel plate and sheet fabrication employs advanced cutting, welding, surface treatment and other modern techniques to meet specific project needs. Precision cutting methods such as laser, waterjet, or plasma are used for placing accurate cuts on the heavy plates. Then they undergo bending, forming, and welding to create complex geometries and weld durable seams. Polishing and pickling preserves the attractive appearance of the metal while ensuring that it is corrosion resistant. Modern techniques of fabrication target the issue of accuracy and efficiency while ensuring material integrity, thus allowing stainless steel to be used in a wide variety of architectural and industrial applications.

Welding Stainless Steel: Best Practices

I have had success with processes and techniques that work well for welding stainless steel. First, a welding process suited to the grade of stainless steel needs to be selected. For example, TIG welding is suited for thin precision and appearance components; on the other hand, MIG welding is more productive for thicker sections. Also, like with any other welding process, preparation is critical. In this case, cleaning the workpiece to remove grease or oxide layers is essential to avoid defects in the weld. The heat must also be controlled. Warping and intergranular attack on the stainless steel’s microstructure due to excessive heat is commonplace, so I focus on managing the size of the heat-affected zone. Using filler metals that are the same as the base metal also improves the integrity of the welded joint. Steel fusion welding should be approached with patience and thoroughness to get the best possible outcome.

Cutting Methods: Laser, Plasma, and Mechanical Options

Whatever work the client needs to be completed, they can use several options as each offers something unique. Laser cutting can achieve superb precision when working on intricate designs and tight tolerances. However, it is more expensive than other options for thicker materials. Plasma cutting is quite effective when working with medium to thick metals, combining speed and efficiency. Mechanical options like saws or shears are also viable for basic cuts, mostly when low precision is required or with thicker materials. The type of cutting method selected will depend on the material’s thickness, precision needed, and the available budget.

Forming and Bending Stainless Steel

For bending and forming stainless steel shapes, I draw on my knowledge regarding the stainless steel grade being used as well as the radius of the bends needed. Higher tensile grades can be tough to work with, but achieving complex shapes is possible with the right tools and techniques. Obtaining the right accuracy requires precise calculations for bend allowances and springback. For tight curves and intricate profile details, advanced tools such as ultra-modern press brakes and roll benders are essential. The final product’s characteristics determine how much compromise I can make between efficiency and precision.

Selecting the Right Stainless Steel for Your Project

The selection of stainless steel to be used in a project relies on some essential facets which include the surroundings where the material will be used, the mechanical properties required, and the overall look of the final product. 316 grade is best used for more demanding corrosion resistant projects in marine or chemical settings. On the other hand, 304 is economical and suitable for more general uses. For high strength applications, duplex stainless steels can be used, whereas, decorative applications can be served with polished or patterned surfaces. You can guarantee better performance and longer life by examining these factors against the demands of your specific project.

Assessing Environmental Factors and Corrosion Risks

Choosing the right material for a project, especially with considerations to the environment and the risk of corrosion, is best approached in a more systematic way. Let’s focus on how to analyze these variables comprehensively.

1. Exposure to Moisture or Salts:  If the material is exposed to large amounts of moisture, rain, seawater, or even de-icing salts, there’s a need for a material that can withstand corrosion while standing out with ease like Stainless Steel 316. This quality contains Molybdenum, which serves as a bonus in protecting against chloride obstacles and destroys pitting and corrosion.
2. Temperature Fluctuations:  Think through if the material is being introduced to harsh temperatures or exposure to rapid heating/cooling. Certain grades of stainless steel, for instance, duplex grades are more resilient to thermal expansion and intergranular stress corrosion cracking when pitted against ordinary grades like 304.
3. Chemical Exposure: For use with acids, alkalis, or other industrial/chemical solutions, 316 stainless steel or even more advanced complex metals, such as super duplex or titanium alloys should be used. These materials stay intact under harsh interactions with chemicals without degrading.
4. Environmental Pollution: Urban or Industrial areas with a lot of air pollution containing sulphur dioxide will require strong materials that can withstand water bearing destruction. Stainless steels with other alloying substances are exceptionally favorable in these cases.
5. Maintenance Expectations: When dealing with spaces where frequent cleaning or maintenance is inconvenient, a self-passivating material equipment could be the option. Stainless steel alone can assist with suffocating the oxide layer, but certain finishes like the electropolishing have shown an increase in low-maintenance conditions.

When considering the factors within the project’s surroundings, one will be able to accurately choose the materials that fit their operating conditions. All in all, choosing materials that coincide with these environmental stressors makes certain their overall expenses regarding repairs and replacements are reduced.

Mechanical Properties: Strength, Durability, and Flexibility

When working on machines, strength is considered a property of a material since it refers to how well the material can resist force without any deformation. Durability measures how long a material can be used for without succumbing to force and damage. Flexibility indicates how much a material can bend or deform under pressure without breaking. Achieving the right balance in all these properties is key to ensuring that all performance requirements are met as well as durability for a particular application.

Cost Considerations: Balancing Performance and Budget

considerations of cost are always a trade off between optimal performance and budgeted costs. While lower costs may appeal to some, the outcome often leads to high maintenance costs and lowered efficiencies, which can be avoided. I strongly suggest choosing the best valued materials. They can measurably withstand performance tests and also remain cost effective. Looking further, it is feasible to simultaneously meet budgetary expectations while achieving reliable performance results by carefully assessing the needs of the application and its long-term impacts.

Sourcing and Purchasing Stainless Steel Plate and Sheet

Finding stainless steel plates or sheets is never as easy as it sounds. Quality, budget, and reliability are often sacrificed by traders in this business. From my experience as an industry professional, dealing with suppliers who give traceable certifications is ideal for material compliance with ASTM or ASME standards. Look for suppliers who are willing to meet your deadlines, are reasonable in their pricing, and offer different grades and finishes for your project. If you’d like to save costs, consider purchasing in bulk or entering a long-term deal with the supplier. Effective communication will ensure any specific requirements you have are efficiently dealt with.

Finding Reliable Suppliers and Stockists

When looking for dependable suppliers or stockists, there are numerous factors I consider to guarantee effective partnerships. I always check the validity of the supplier’s certificates, as I need to make sure they’ll comply with industry standards like ASTM or ASME. I also check their history of punctual deliveries and the quality of their products over time. Many times, going through referrals in the industry helps in unearthing suppliers with reliability. Besides, I have also found that discussing my project needs and set timelines more openly improves alignment and lowers the chances of delays. Focusing on these issues, in the end, helps me in sourcing the materials needed to meet specific project demands in an effective manner.

Custom Orders vs. Standard Stock Sizes

While thinking about custom orders versus standard stock sizes, project needs, time frames, and cost analysis are crucial factors. The standard stock sizes are more appropriate with regards to cheaper pricing and quick deliveries, especially for abstract and non-specific projects. However, the orders placed customely ensure that performance will be precise and material waste is reduced, albeit have longer lead times and higher costs. These elements—relating to specific project goals—will always dictate what is the right choice.

Quality Assurance: Certifications and Testing

Guaranteeing material quality is one of the pillars of every project I handle. I always try to obtain material with certain recognized certifications, like ISO or ASTM, as they provide a certain level of safety and performance. In addition to it, I also require comprehensive protocols—be it tensile strength testing, chemical composition analysis, or surface inspections. These protocols not only ensure compliance, but also give me the confidence that the materials will meet the project’s specific requirements. The combination of certified sources and rigorous testing enables me to keep high standards and mitigate risks in all my projects.



Reference

1. 304 vs 316 Stainless Steel – What’s the Difference? – A detailed comparison of the two grades, highlighting their properties and applications.
2. Manufacturing Insights: 304 Vs 316 Stainless Steel – Explains the main differences, including corrosion resistance and material composition.
3. 304 vs. 316 stainless steel: what’s the difference? – Discusses the chromium and nickel content differences and their impact on performance.

Frequently Asked Questions (FAQs)

Q: What are the main differences between 304 and 316 stainless steel?

A: The main differences between 304 and 316 stainless steel are their composition and corrosion resistance. 304 is a chromium-nickel austenitic steel with good corrosion resistance, while 316 contains molybdenum, offering superior resistance to corrosive environments, especially in marine applications. 316 is also slightly stronger and more expensive than 304.

Q: Is stainless steel plate and sheet magnetic?

A: Generally, austenitic stainless steels like 304 and 316 are non-magnetic in their annealed state. However, cold working can induce some magnetism. Ferritic and martensitic stainless steels are magnetic. It’s important to note that the magnetic properties can vary depending on the specific grade and processing of the stainless steel.

Q: What are some typical uses for stainless steel plate and sheet?

A: Stainless steel plate and sheet have various uses across multiple industries. Common applications include kitchen equipment, architectural cladding, chemical processing tanks, aerospace components, medical devices, and food processing equipment. They are also used in weight-bearing structures, marine environments, and decorative applications due to their strength, corrosion resistance, and aesthetic appeal.

Q: How does stainless steel resist rust and corrosion?

A: Stainless steel resists rust and corrosion due to its chromium content, which forms a thin, invisible layer of chromium oxide on the surface when exposed to oxygen. This passive layer protects the metal from further corrosion. The addition of other elements like nickel and molybdenum in grades like 316 further enhances corrosion resistance, especially in more aggressive environments.

Q: Can stainless steel plate and sheet be cut to size?

A: Yes, stainless steel plate and sheet can be cut to size using various methods such as laser cutting, waterjet cutting, plasma cutting, or mechanical shearing. Many suppliers offer cut-to-size services to meet specific project requirements. This flexibility allows for precise dimensions and shapes to be achieved for different applications.

Q: What is the difference between stainless steel sheet and plate?

A: The main difference between stainless steel sheet and plate is thickness. Generally, stainless steel sheet refers to thinner material, typically less than 6mm (0.25 inches) thick. Plate, on the other hand, is thicker material, usually 6mm and above. Sheets are more commonly used for applications requiring flexibility or forming, while plates are used for structural or heavy-duty applications.

Q: How does 316L stainless steel differ from regular 316?

A: 316L is a low carbon version of 316 stainless steel. The ‘L’ stands for low carbon, typically containing 0.03% or less carbon compared to 0.08% in regular 316. This lower carbon content improves weldability and reduces the risk of carbide precipitation during welding, which can lead to corrosion in certain environments. 316L is often preferred in highly corrosive environments and for welded components.

Q: What is a 4 brushed finish on stainless steel?

A: A 4 brushed finish, also known as a satin finish, is a common surface treatment for stainless steel plate and sheet. It’s created by brushing the metal with abrasive materials in one direction, resulting in a uniform, non-reflective appearance with fine lines. This finish is popular for its ability to hide fingerprints and minor scratches, making it ideal for high-traffic areas and architectural applications.

Q: Can stainless steel plate and sheet be used for flooring?

A: Yes, stainless steel plate and sheet can be used for flooring, especially in industrial, commercial, or high-end residential settings. It offers excellent durability, easy maintenance, and a modern aesthetic. Textured or patterned surfaces are often used to provide slip resistance. Stainless steel flooring is particularly suitable for areas requiring high hygiene standards or resistance to harsh chemicals.

Q: How does stainless steel compare to brass in terms of corrosion resistance?

A: Stainless steel generally offers superior corrosion resistance compared to brass. While brass has good corrosion resistance in certain environments, it can suffer from dezincification in some conditions. Stainless steel, especially grades like 316, provides excellent resistance to a wide range of corrosive environments, including marine and chemical exposure. However, the choice between the two metals often depends on specific application requirements, aesthetic preferences, and cost considerations.
