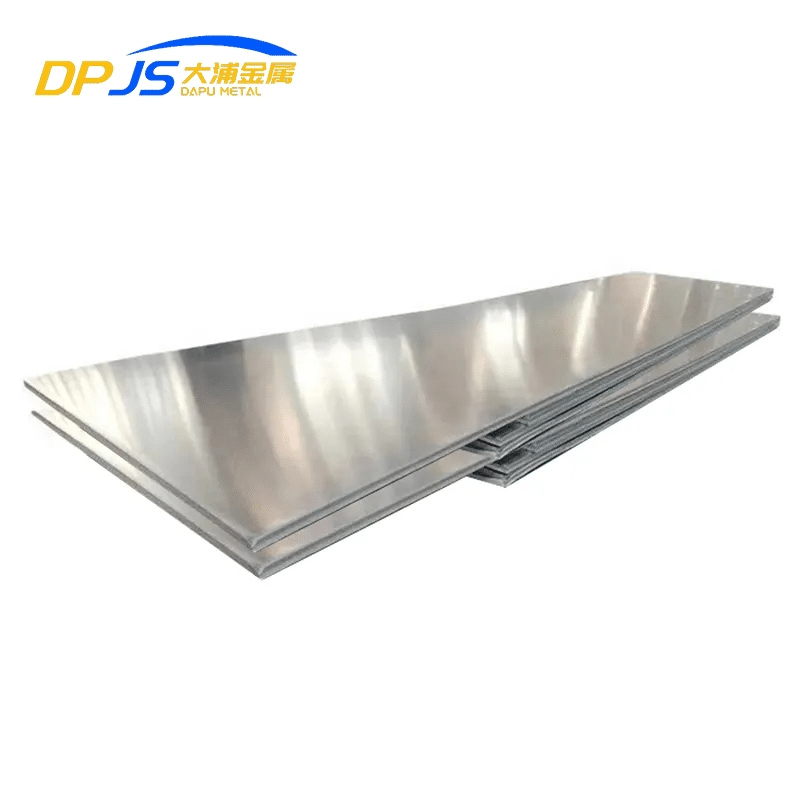

1060 H24 Aluminum Sheet
1060 H24 Aluminum Sheet Manufacturer in China
The 1060 H24 Aluminum Sheet is a high-purity aluminum alloy with a minimum aluminum content of 99.6%. Known for its excellent corrosion resistance, thermal conductivity, and formability, it is widely used in industries requiring lightweight and durable materials.
Discover high-quality 1060 H24 Aluminum Sheet products here.
-
Characteristics of The 1060 H24 Aluminum Sheet
- Corrosion Resistance: Exceptional resistance to environmental and chemical corrosion, making it ideal for marine and industrial applications.
- High Ductility: Easily formed and shaped for custom applications, ensuring flexibility in design.
- Thermal and Electrical Conductivity: Excellent thermal conductivity (230 W/m·K) and electrical conductivity (61% IACS), suitable for heat exchangers and electrical components.
- Lightweight: With a density of 2.7 g/cm³, it offers an outstanding strength-to-weight ratio.
- Non-Heat-Treatable: Strengthened through cold working, ensuring stable mechanical properties.
- Reflective Finish: Highly reflective surface for aesthetic and functional purposes.
1060 H24 Aluminum Sheet Technical Specifications
| Element | % Present |
|---|---|
| Aluminum (Al) | 99.6 - 100 |
| Iron (Fe) | 0.0 - 0.35 |
| Silicon (Si) | 0.0 - 0.25 |
| Zinc (Zn) | 0.0 - 0.05 |
| Copper (Cu) | 0.0 - 0.05 |
| Manganese (Mn) | 0.0 - 0.03 |
| Magnesium (Mg) | 0.0 - 0.03 |
| Titanium (Ti) | 0.0 - 0.03 |
| Property | Value |
|---|---|
| Proof Strength | 78 MPa |
| Tensile Strength | 99 MPa |
| Elongation | 1% |
| Shear Strength | 56 MPa |
| Property | Value |
|---|---|
| Density | 2.7 g/cm³ |
| Melting Point | 660°C |
| Thermal Conductivity | 230 W/m·K |
| Electrical Resistivity | 62% IACS |
| Modulus of Elasticity | 68 GPa |
| Thermal Expansion | 24 x 10⁻⁶/K |
- ASTM: B209
- UNS: A91060
- EN / DIN: EN AW-1060 / Al99.6
- JIS: A1060P
- BS: 1B
- AFNOR: A5
Common Applications of 1060 H24 Aluminum Sheet
Heat Sinks
Automotive Components
Solar Reflectors
Signage and Advertising Panels
-
1060 H24 Aluminum Sheet Customization
We provide tailored solutions for the 1060 H24 Aluminum Sheet, including:
- Custom Thickness: The 1060 H24 aluminum sheet is available in a wide range of thicknesses to meet diverse application needs.
- Custom Dimensions: Tailored to your project requirements, the 1060 H24 aluminum sheet can be cut to precise widths and lengths.
- Surface Treatments: Enhance the performance and appearance of your aluminum sheet with a variety of surface treatment options.
- Packaging Options: Custom packaging solutions are available to ensure safe transportation and storage, protecting the material from damage during transit and handling.
Contact our technical team today to discuss your customization requirements and create a tailored solution that perfectly aligns with your application needs!
Contact Us
Experience the perfect balance of strength, formability, and corrosion resistance with our 1060 H24 Aluminum Sheet. Ideal for construction, electronics, transportation, and packaging, this versatile material is designed to meet the demands of modern industries.Whether you need custom sizes, advanced processing, or expert advice, we’re here to help.Ready to elevate your project with 1060 H24 Aluminum Sheet?
Contact our technical team today to discuss your custom fabrication needs and find the perfect solution for your application.
