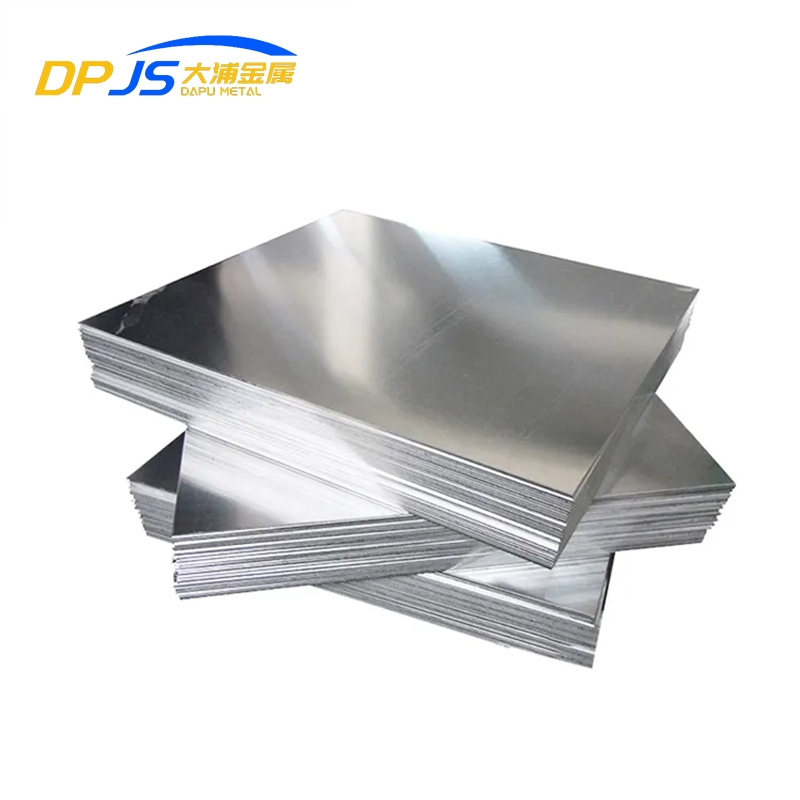

AA 6061 (EN AW-6061) Aluminum Alloy Plate
Top 6061 Aluminum Alloy Plate Manufacturer in China
The AA 6061 Aluminum Alloy Plate (EN AW-6061) is a high-quality material that offers excellent strength and performance at low weights with marked corrosion resistance. With magnesium and silicon as the primary alloying elements, it can be welded, machined, and conducts heat well. This plate finds applications across varied fields such as aerospace, automobile, construction, and marine, all of which demand strength plus quality. It is a commonly used item in applications from aircraft structures and automotive parts to building facades and marine vessels. The environmentally friendly must-have AA 6061 Aluminum Alloy Plate offers performance at an economical price for any project that demands reliability, efficiency, and sustainability.
Discover high-quality 6061 Aluminum Alloy Plate products here.
-
Characteristics of 6061 (EN AW-6061) Aluminum Alloy Plate
- Outstanding Strength: Offers an extremely adequate country weight, and this affords it ideal qualities for structural and load-bearing purposes.
- Corrosion Resistance: With corrosion resistance inherent within itself, this alloy resists marine and industrial surroundings, making it long-lasting.
- Lightweight: In addition to the strength, it is lightweight and so reduces the weight of the material that one carries.
- Weldability: This is easily weldable given that it is done correctly, making it possible to weld for new requirements.
- Machinability: This is easily machinable, granting precision to offer particular custom designs and manufacturing processes.
- Thermal Conductivity: This ranks high for thermal conductivity, so this applies to the need for heat transfer.
- Versatility: It finds applicability across several industries, including aerospace, automotive, construction, and marine.
- Environmentally Friendly: Made from recycled raw materials to help promote a sustainable ecosystem and environmentally friendly projects.
AA 6061 (EN AW-6061) Aluminum Alloy Plate Technical Specifications
| Element | Content (%) |
|---|---|
| Aluminum (Al) | Balance |
| Silicon (Si) | 0.40 - 0.80 |
| Iron (Fe) | 0.70 max |
| Copper (Cu) | 0.15 - 0.40 |
| Manganese (Mn) | 0.15 max |
| Magnesium (Mg) | 0.8 - 1.2 |
| Chromium (Cr) | 0.04 - 0.35 |
| Zinc (Zn) | 0.25 max |
| Titanium (Ti) | 0.15 max |
| Others (Each) | 0.05 max |
| Others (Total) | 0.15 max |
| Property | Value (T6 Temper) |
|---|---|
| Tensile Strength | 310 MPa min |
| Yield Strength | 276 MPa min |
| Elongation | 12% min (in 50mm) |
| Brinell Hardness (HB) | 95 HB min |
| Shear Strength | 205 MPa min |
| Fatigue Strength | 96.5 MPa min |
| Modulus of Elasticity | 68.9 GPa |
| Property | Value |
|---|---|
| Density | 2.70 g/cm3 |
| Melting Point | 582–652°C (1080–1205°F) |
| Thermal Conductivity | 167 W/m·K |
| Electrical Conductivity | 40% IACS |
| Thermal Expansion | 23.6 µm/m·°C (20–100°C) |
| Specific Heat Capacity | 0.896 J/g·°C |
- ASTM: B209
- UNS: A96061
- EN / DIN: AW-6061, AlMg1SiCu
- JIS: A6061
- BS: H20
- AFNOR: A-G1S0
Common Applications of AA 6061 (EN AW-6061) Aluminum Alloy Plate
Aerospace Industry
Automotive Industry
Construction Industry
Marine Industry
-
AA 6061 Aluminum Alloy Plate Customization
Beyond the stock items, we provide customized services to ensure the AA 6061 Aluminum Alloy Plate matches the exact specifications for your particular project.
- Custom Size: In other words, custom sizes are offered all the way from small-scale plates to large-scale plates, depending on your precise requirements.
- Thickness Options: Full thickness range available from 0.5mm to 50mm to fit into light industrial and structural applications.
- Surface Finishing: You may opt for polished, brushed, anodized, or mill finish, but there are other custom finishes available as per the need.
- Advanced Processing: Precision cutting/welding/bending/machining/heat treatment so components may be ready for use.
Please feel free to contact our experts about your customization needs; they will help you find the right solution for your project.
Contact Us
Quality materials ensure any project’s success. We offer Certified AA 6061 (EN AW-6061) Aluminum Alloy Plates which comply with stringent industry specifications to provide the finest working qualities for your application and long service life. Because of our partner relationship, we utilize our vast inventory and processing capabilities to tailor a solution from off-the-shelf to fully bespoke for your exact requirements. When ordering through us, you receive a product plus a commitment to quality and reliability for your most demanding applications.
Looking to place an order? Our expert team is ready to provide a prompt, no-obligation quote and offer consulting services about materials. We are ready to discuss your technical requirements and provide a solution tailored to you at highly competitive pricing with prompt delivery. Let us take the fuss out of procurement and help bring your project to life with the support it deserves. Submit your inquiry today to ensure that you are supplied with premium quality materials.
