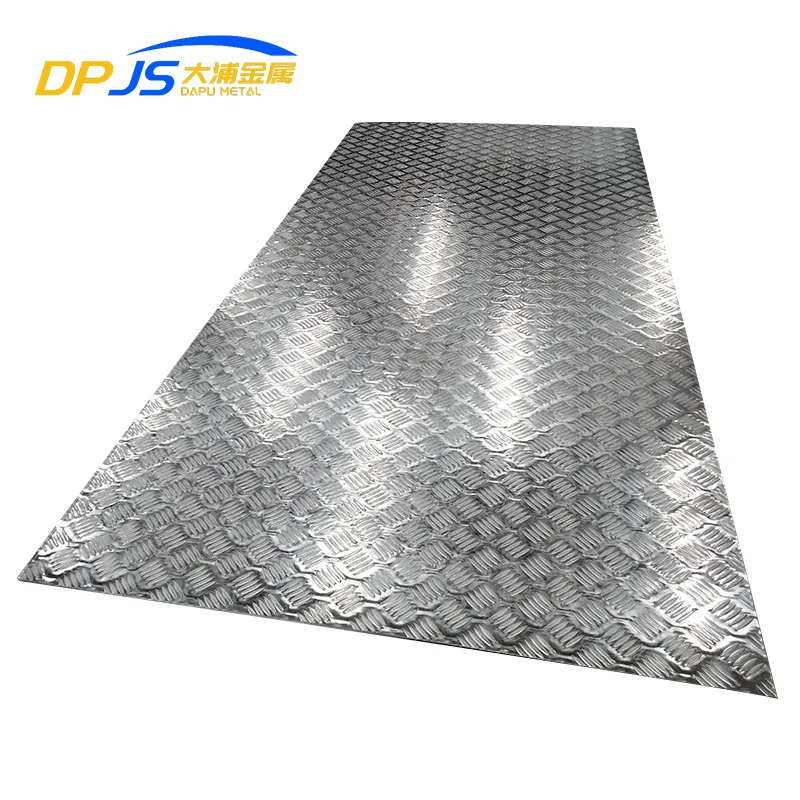

AA 5083 (EN AW-5083) Aluminum Alloy Plate
Top AA 5083 (EN AW-5083) Aluminum Alloy Plate Manufacturer in China
AA 5083 (EN AW-5083) aluminum alloy plate is renowned for its superior corrosion resistance, high strength, and excellent weldability. It performs exceptionally in marine, aerospace, and automotive applications, resisting seawater, industrial chemicals, and extreme environments. With outstanding durability and formability, it is ideal for shipbuilding, pressure vessels, and lightweight structural components. This non-heat-treatable alloy retains strength after welding and is suitable for cryogenic applications, making it a reliable choice for demanding industries.
Discover high-quality AA 5083 (EN AW-5083) Aluminum Alloy Plate products here.
-

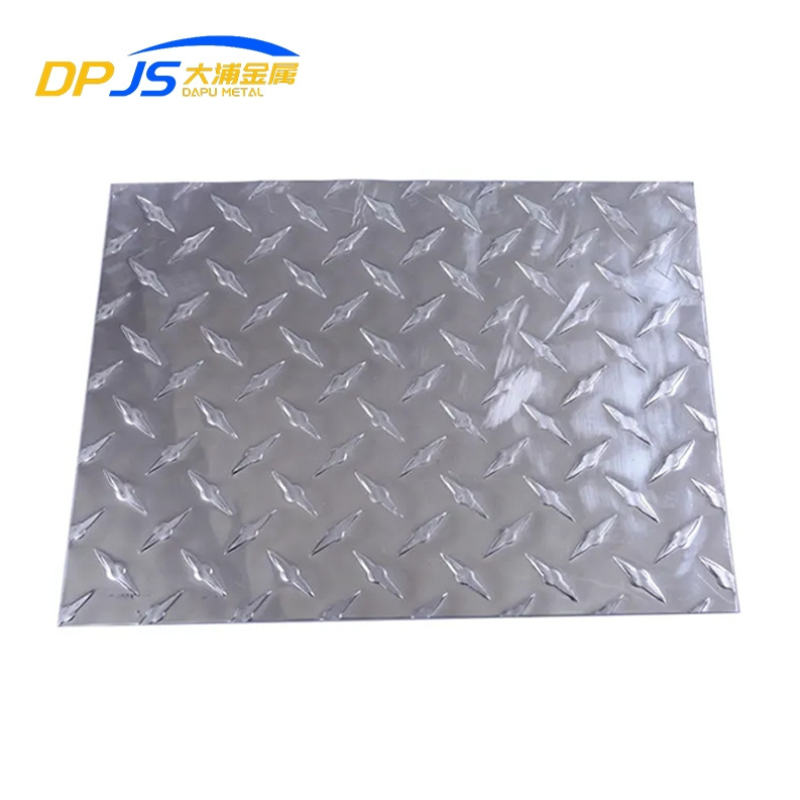

Characteristics of 5083 Aluminum Alloy
- Corrosion Resistance: Exceptional resistance to seawater and industrial chemical environments, making it ideal for marine and chemical applications.
- High Strength: Offers excellent strength-to-weight ratio, suitable for demanding structural applications.
- Weldability: Superior weldability ensures ease of fabrication and strong, durable joints.
- Formability: Excellent formability allows for complex shapes and designs without compromising integrity.
- Fatigue Resistance: High fatigue strength ensures durability under cyclic loading conditions.
- Thermal Conductivity: Good thermal conductivity makes it suitable for heat exchangers and cooling systems.
- Non-Magnetic: Non-magnetic properties make it ideal for sensitive electronic and magnetic applications.
- Lightweight: Lightweight nature reduces overall weight in transportation and structural applications.
AA 5083 (EN AW-5083) Aluminum Alloy Technical Specifications
| Element | Min (%) | Max (%) |
|---|---|---|
| Aluminum (Al) | Balance | Balance |
| Magnesium (Mg) | 4 | 4.9 |
| Manganese (Mn) | 0.4 | 1 |
| Chromium (Cr) | 0.05 | 0.25 |
| Iron (Fe) | - | 0.4 |
| Silicon (Si) | - | 0.4 |
| Copper (Cu) | - | 0.1 |
| Zinc (Zn) | - | 0.25 |
| Titanium (Ti) | - | 0.15 |
| Others (Each) | - | 0.05 |
| Others (Total) | - | 0.15 |
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 275 - 350 | MPa |
| Yield Strength | 125 - 200 | MPa |
| Elongation (50mm) | 12 - 20 | % |
| Hardness (Brinell) | 75 - 95 | HB |
| Modulus of Elasticity | 70 | GPa |
| Fatigue Strength | 125 | MPa |
| Property | Value | Unit |
|---|---|---|
| Density | 2.65 - 2.66 | g/cm³ |
| Melting Point | 570 - 640 | °C |
| Thermal Conductivity | 121 - 126 | W/m·K |
| Electrical Conductivity | 28 - 30 | % IACS |
| Coefficient of Thermal Expansion | 24.5 | µm/m·K |
- ASTM: B209
- UNS: A95083
- EN / DIN: EN AW-5083 / AlMg4.5Mn0.7
- JIS: H4000
- BS: N8 / 5083
- AFNOR: A-G4.5MC
Common Applications of AA 5083 Aluminum Alloy
Marine Industry
Aerospace Industry
Automotive Industry
Construction Industry
-
AA 5083 (EN AW-5083) Aluminum Alloy Plate Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Tailored widths, lengths, and shapes to suit your specific needs.
- Thickness Range: Available from 0.5 mm to 150 mm, covering diverse applications.
- Surface Finishing: Mill finish, anodized, polished, or coated for enhanced performance.
- Processing Services: Precision cutting, CNC machining, drilling, and bending for custom fabrication.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Your project’s success depends on premium materials. We supply certified AA 5083 (EN AW-5083) aluminum alloy plates that meet strict standards, ensuring corrosion resistance, strength, and durability. As your trusted partner, we combine a vast inventory with advanced processing to deliver solutions tailored to your specifications, from standard stock to custom components. With us, you gain not just a product, but a commitment to quality for your toughest projects.
Ready to get started? Contact our expert team for a no-obligation quote and professional material consultation. We’re here to discuss your requirements and provide a customized solution with competitive pricing and timely delivery. Let us simplify your procurement process and help bring your project to life. Send your inquiry now to secure the premium materials you need.
