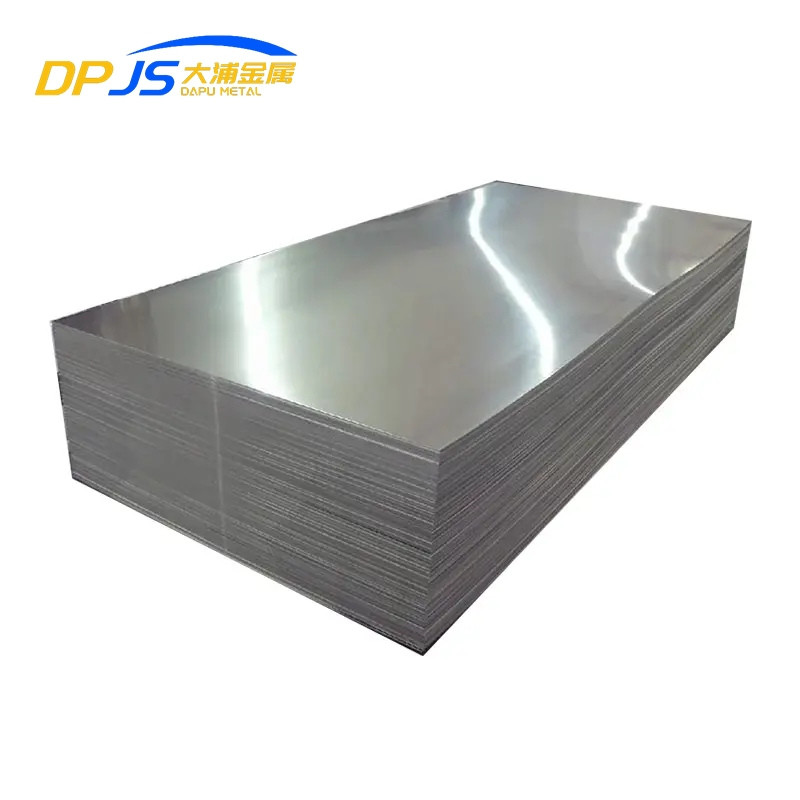

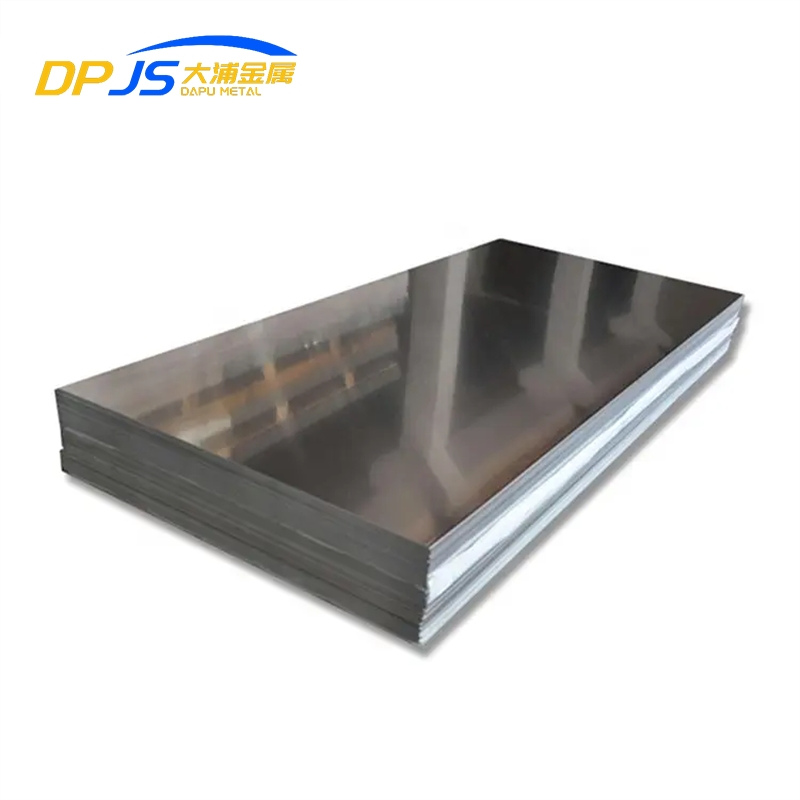

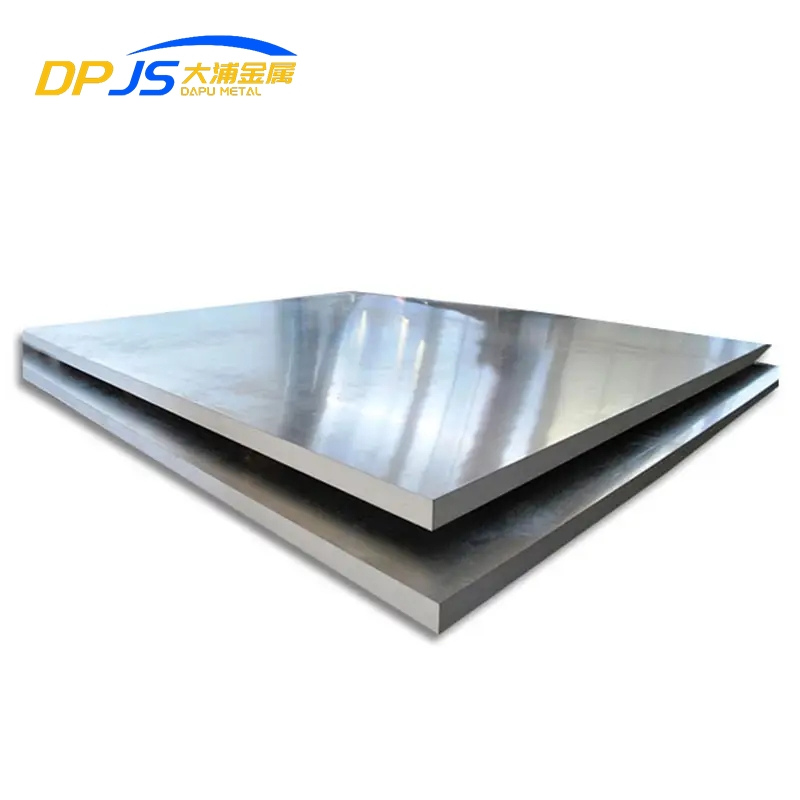

AA 3003 (ISO 209) Aluminum Alloy Plate
Top AA 3003 (ISO 209) Aluminum Alloy Plate Manufacturer in China
The importance of AA 3003 (ISO 209) Aluminum Alloy Plate stems from its industrial strength, durability, and exceptional utility. Famous for corrosion resistance, it also freeforms and offers lightweight benefits for homes and industries alike. Applying it in cookware, roofing, or storage tank manufacturing really goes with the top ACE: AA 3003.
Discover high-quality AA 3003 (ISO 209) Aluminum Alloy Plate products here.
-
Characteristics of 3003 (ISO 209) Aluminum Alloy
- High Corrosion Resistance: Combined with atmospheric corrosion and environmental corrosion, worth thinking about for outdoor works and in marine applications.
- Good Formability: Could be easily subjected to alteration, bending, and fabrication for complicated design work and elaborate manufacturing processes.
- Light in Weight: A combination of low density and high durability makes it easy to handle.
- Medium Strength: Medium strength is offered by which it serves many purposes without compromising flexibility.
- Thermal Conductivity: With the highest thermal conductivity, it is excellent for cookware and heat exchangers.
- Weldability: Has excellent weldability by almost every method that gives strong and reliable joints.
- Non-Heat Treatment Type: Strength appears through working hardening.
- Versatility: Can be used for roofing, cookware, storage tanks, and architectural applications.
AA 3003 (ISO 209) Aluminum Alloy Technical Specifications
| Element | Composition (%) |
|---|---|
| Silicon (Si) | 0.6 max |
| Iron (Fe) | 0.7 max |
| Copper (Cu) | 0.05 - 0.20 |
| Manganese (Mn) | 1.0 - 1.5 |
| Zinc (Zn) | 0.10 max |
| Others (each) | 0.05 max |
| Others (total) | 0.15 max |
| Aluminum (Al) | Remainder |
| Property | Value (H14 Temper) |
|---|---|
| Tensile Strength | 150 MPa min |
| Yield Strength | 130 MPa min |
| Elongation | 3% min (in 50mm) |
| Brinell Hardness (HB) | 40 HB min |
| Shear Strength | 115 MPa min |
| Fatigue Strength | 70 MPa min |
| Modulus of Elasticity | 69 GPa |
| Property | Value |
|---|---|
| Density | 2.73 g/cm3 |
| Melting Point | 640–655°C (1184–1211°F) |
| Thermal Conductivity | 162 W/m·K |
| Electrical Conductivity | 41% IACS |
| Thermal Expansion | 23.2 µm/m·°C (20–100°C) |
| Specific Heat Capacity | 0.900 J/g·°C |
- ASTM: B209
- UNS: A93003
- EN / DIN: EN AW-3003 / AlMn1Cu
- JIS: A3003
- BS: N3
- AFNOR: A-M1
Common Applications of AA 3003 Aluminum Alloy
Real estate
Cookware and food containers
Storage tanks
Ductwork and HVAC systems
-
AA 3003 (ISO 209) Aluminum Alloy Plate Customization
Beyond differential stock, tailored processing is offered in order to satisfy the specific project requirements for AA 3003 (ISO 209) Aluminum Alloy Plate.
Custom Dimension: Widths, lengths, and shapes are precisely cut to meet the specifications of design and application.
Thickness Range: From a minimum of 0.5 mm to a maximum of 150 mm, it can be used widely.
Surface Finishing: These consist of mill finish, anodized, brushed, or coated finish to enhance its outlook and/or performance.
Processing Services: In addition to precision cutting, CNC machining, forming, and welding, we also offer custom fabrication to provide you with ready-to-install components.
Feel free to get in touch with our technical team today to discuss your custom fabrication needs and sculpt the perfect solution for your project.
Contact Us
The grades of genuine aluminium plating are 3003 and 1020 according to international standards. The AA 3003 Aluminum Plate ensures that your projects demand and really gets superior quality materials. The aluminium alloy is highly resistant to corrosion, is tough, and most importantly, it is versatile with different applications. Be it industrial, commercial, or household, AA 3003 is the alloy trusted for the assurance of reliability in performance and longevity through all sorts of stringent environments.
Being your trusted partner and helping you out with any extra needs you might profess using not only an extensive stock but also huge processing capabilities to tailor-make all kinds of solutions that fit your talk exactly. One way or the other, from the AA 3003 standard stock plates to custom-engineered components, they are all set to work in your projects.
