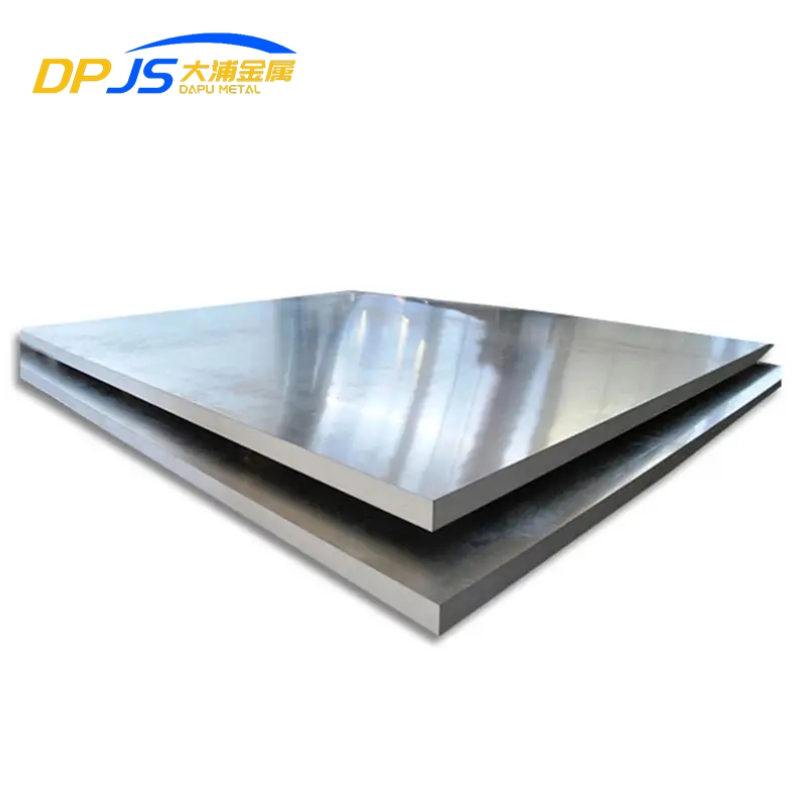

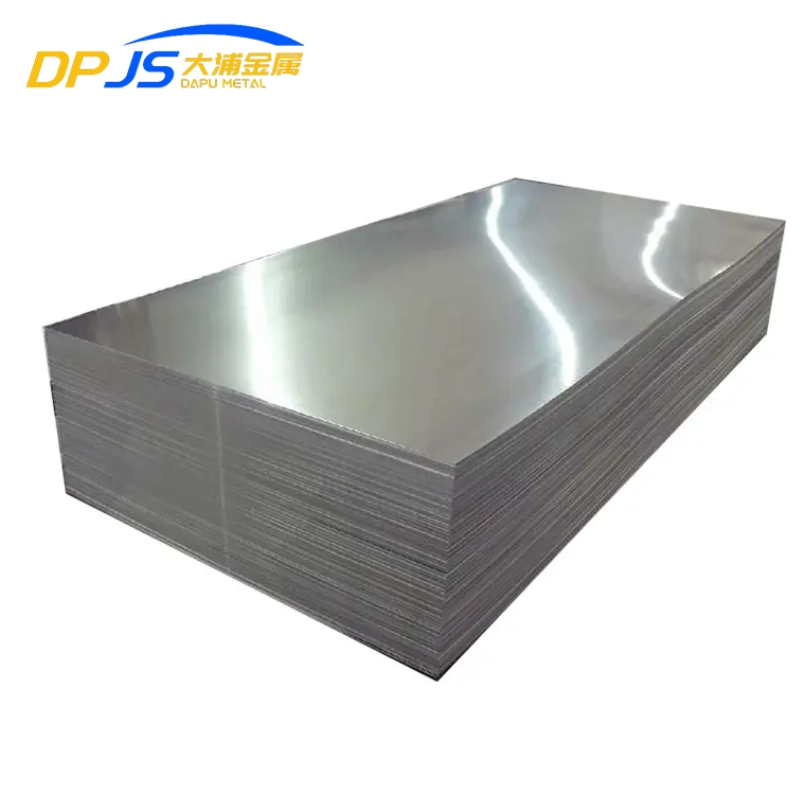

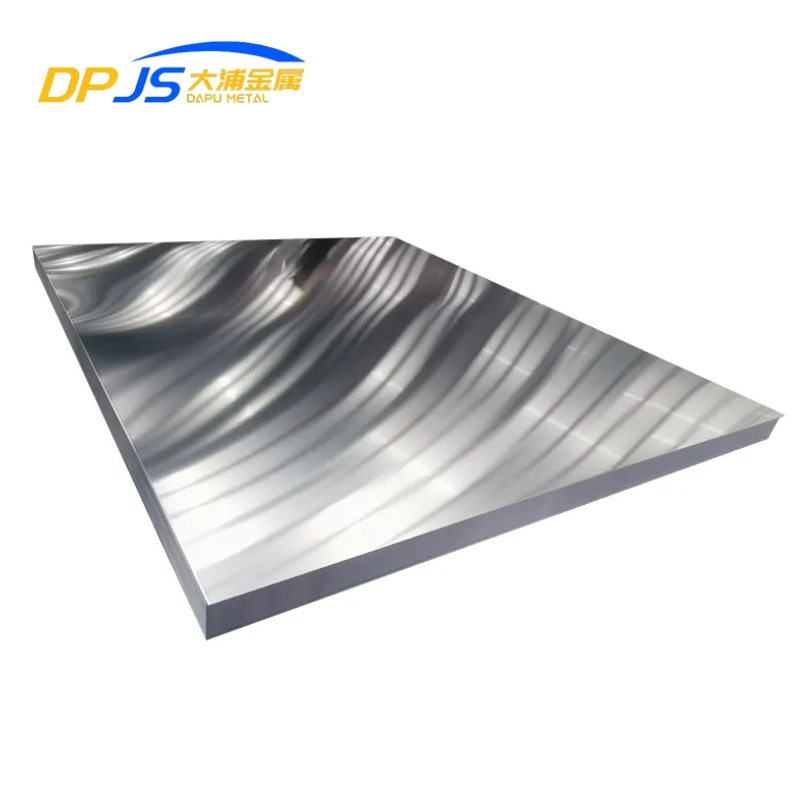

AA 2024 (EN AW-2024) Aluminum Alloy Plate
Top 2024 (EN AW-2024) Aluminum Alloy Plate Manufacturer in China
AA 2024 (EN AW-2024) Aluminum alloy maintains its applications in aerospace, structural work, and heavy engineering due to its strength-to-weight ratio and durability. In other words, an aluminum plate is the solution for critical industries that require extreme precision and reliability. This alloy is resistant to corrosion and exhibits excellent fatigue and machinability qualities. Therefore, applications with requirements for strength and lightweight properties give the best performance. The AA 2024 (EN AW-2024) Aluminum Alloy Plate is unbeatable in its ability to function under pressure in aircraft structures, transportation, or heavy-duty components, making it highly versatile and efficient. For your very demanding projects, make the best choice-a solution from the best aluminum.
Discover high-quality 2024 (EN AW-2024) aluminum alloy plate products here.
-
Characteristics of 2024 (EN AW-2024) Aluminum Alloy Plate
- High Strength: Offers exceptional tensile strength, making it one of the strongest commercial aluminum alloys available.
- Lightweight: With a density of 2.78 g/cm³, it provides a superior strength-to-weight ratio for demanding applications.
- Fatigue Resistance: Excellent resilience under cyclic loading, ideal for aerospace and structural components.
- Machinability: Good machinability ensures precise shaping and finishing for complex designs.
- Corrosion Resistance: Requires protective coatings due to poor natural corrosion resistance.
- Heat Treatability: Responds well to heat treatment, enhancing its mechanical properties.
- Weldability: Limited weldability; not suitable for fusion welding due to microcracking risks.
- Applications: Widely used in aerospace, military equipment, and high-stress structural components.
AA 2024 (EN AW-2024) Aluminum Alloy Plate Technical Specifications
| Element | Percentage Range (%) |
|---|---|
| Aluminum (Al) | 90.7 - 94.7 |
| Copper (Cu) | 3.8 - 4.9 |
| Magnesium (Mg) | 1.2 - 1.8 |
| Manganese (Mn) | 0.3 - 0.9 |
| Silicon (Si) | ≤ 0.5 |
| Iron (Fe) | ≤ 0.5 |
| Chromium (Cr) | ≤ 0.1 |
| Zinc (Zn) | ≤ 0.25 |
| Titanium (Ti) | ≤ 0.15 |
| Other Elements | Each ≤ 0.05 / Total ≤ 0.15 |
| Property | Temper T3 | Temper T351 |
|---|---|---|
| Tensile Strength (Rm) | 420 MPa | 420 MPa |
| Yield Strength (Rp0.2) | 290 MPa | 290 MPa |
| Elongation (A) | 8% | 8% |
| Brinell Hardness (HBW) | 120 | 120 |
| Modulus of Elasticity | 73.1 GPa | 73.1 GPa |
| Fatigue Strength | 138 MPa | 138 MPa |
| Shear Strength | 283 MPa | 283 MPa |
| Property | Value | Unit |
|---|---|---|
| Density | 2.78 | g/cm³ |
| Thermal Conductivity | 121 | W/m·K |
| Specific Heat Capacity | 0.875 | J/g·°C |
| Melting Point Range | 502 - 638 | °C |
| Thermal Expansion Coefficient | 23.2 | µm/m·°C |
| Electrical Conductivity | 30 | % IACS |
- ASTM: B209
- EN: 485-2 / 573-3
- DIN : 3.1355
- JIS: H4200
Common Applications of 2024 (EN AW-2024) Aluminum Alloy Plate
Aerospace Components
Automotive Industry
Structural Engineering
Precision Machining
-
AA 2024 (EN AW-2024) Aluminum Alloy Plate Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Plates can be cut to precise dimensions, ensuring compatibility with specific aerospace, structural, and engineering requirements.
- Thickness Range: Available in thicknesses up to 330 mm, catering to both lightweight and heavy-duty industrial applications.
- Surface Finishing: Offers excellent machinability and high-quality surface finishes, ideal for precision parts requiring both functionality and aesthetics.
- Processing Services: Includes CNC cutting, bespoke shaping, and tight tolerance machining to meet specialized engineering and industrial needs.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
AA 2024 Aluminum Alloy Plate stands almost unrivaled in terms of strength, lightness, and durability. With considerations for aerospace, structural, and engineering applications, where power resistance and critical considerations are given to projects, this is an ideal choice. This higher-grade aluminum alloy guarantees design-level reliability and efficiency in every way. If you’re unable to obtain your AA 2024 (EN AW-2024) Aluminum Alloy Plate for the most demanding applications, you may be missing out on unparalleled performance.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
