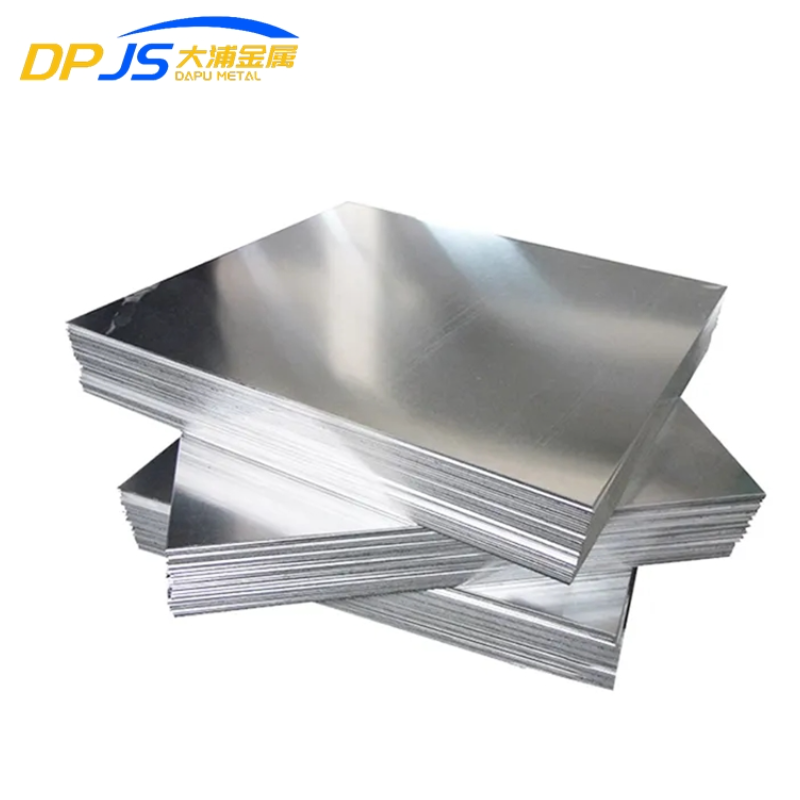

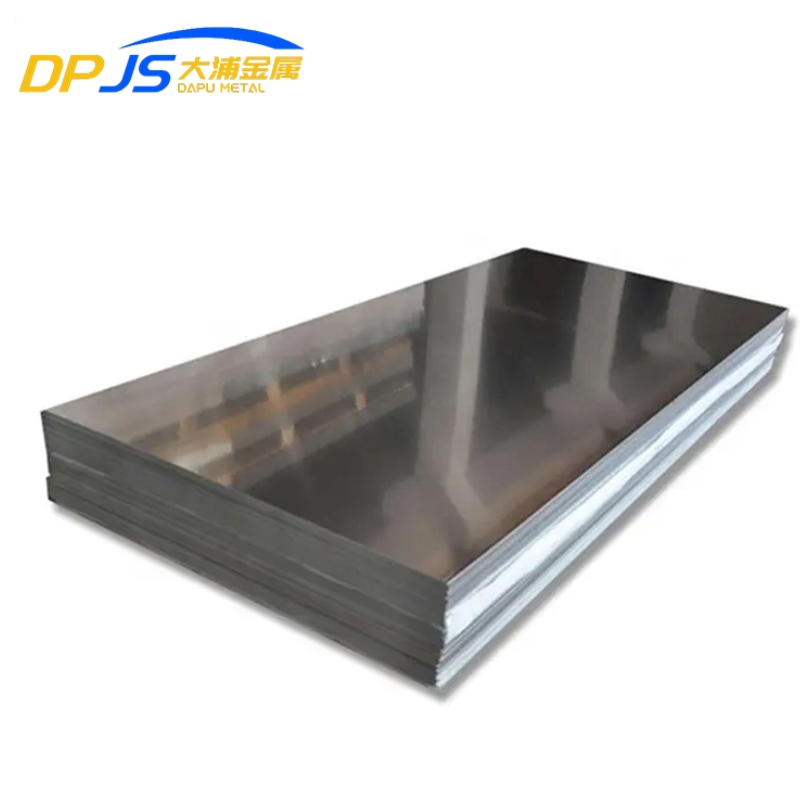

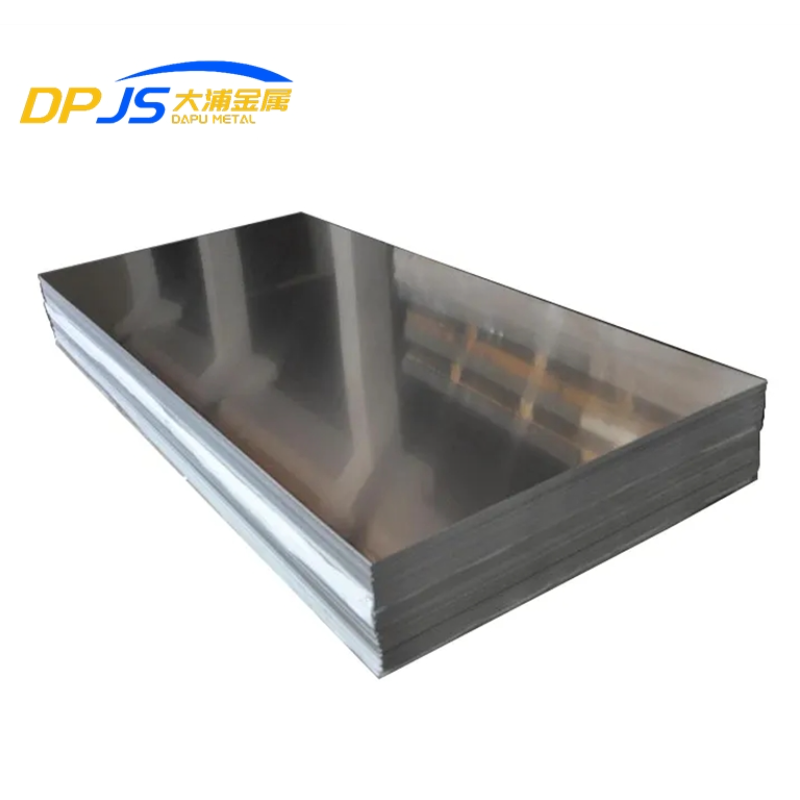

AA 1100 (ISO 6361) Aluminum Alloy Plate
Top AA 1100 (ISO 6361) Aluminum Alloy Plate Manufacturer in China
AA 1100 (ISO 6361) Aluminum Alloy Plate combines two key qualities: superior corrosion resistance and lightweight properties, making it suitable for use in various industries, including chemical and food processing. Known for its great workability and high thermal conductivity, this plate maintains its efficiency and stands for durability even in adverse conditions. Discussing the benefits of being lightweight, it reduces handling costs and offers energy-efficient solutions. While the corrosion resistance accounted for may shorten the aging process of corrosion in equipment in extremely adverse atmospheric conditions. Solid spy glass storage tanks, kitchenware, or vessels of industrial use—all are a good fit for AA 1100 (ISO 6361) Aluminum Alloy Plate, which stars trustworthiness and adaptability. Sound investments in quality now, set AA 1100 as your next!
Discover high-quality AA 1100 (ISO 6361) aluminum alloy plate products here.
-
Characteristics of AA 1100 (ISO 6361) Aluminum Alloy Plate
- Superior Corrosion Resistance: Excellent resistance to corrosion, making it ideal for chemical, industrial, and food processing environments.
- Lightweight Efficiency: Low density ensures easy handling, reduced transportation costs, and energy-efficient applications.
- High Thermal Conductivity: Exceptional heat transfer capabilities, suitable for heat exchangers and thermal management systems.
- Excellent Workability: Easily shaped, welded, and machined, offering versatility for various industrial applications.
- Durable Performance: Reliable under demanding conditions, ensuring long-lasting use in harsh environments.
- Non-Toxic and Safe: Suitable for food-grade applications like kitchenware and storage tanks.
- Adaptable Applications: Used in storage tanks, industrial vessels, and architectural projects due to its versatility.
- Cost-Effective Solution: Combines affordability with high performance, making it a preferred choice for budget-conscious projects.
AA 1100 (ISO 6361) Aluminum Alloy Plate Technical Specifications
| Element | Percentage by Weight (%) |
|---|---|
| Aluminum (Al) | 99.00 min |
| Copper (Cu) | 0.05 - 0.20 |
| Iron (Fe) | 0.00 - 0.95 |
| Silicon (Si) | 0.00 - 0.95 |
| Zinc (Zn) | 0.00 - 0.10 |
| Manganese (Mn) | 0.00 - 0.05 |
| Magnesium (Mg) | 0.00 - 0.05 |
| Titanium (Ti) | 0.00 - 0.03 |
| Other Elements | 0.15 max (total) |
| Property | Value |
|---|---|
| Tensile Strength | 90 MPa (13 ksi) min |
| Yield Strength | 34 MPa (5 ksi) min |
| Elongation | 30% min (in 50 mm gauge length) |
| Hardness | Brinell Hardness (HB): 35 |
| Modulus of Elasticity | 69 GPa (10,000 ksi) |
| Density | 2.71 g/cm³ (0.097 lbs/in³) |
| Melting Range | 643°C to 657°C (1,189°F to 1,215°F) |
| Shear Strength | 48 MPa (7 ksi) |
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ (0.097 lbs/in³) |
| Thermal Conductivity | 222 W/m·K (1,534 BTU·in/hr·ft²·°F) |
| Electrical Conductivity | 53% IACS (International Annealed Copper Standard) |
| Melting Point | 643°C to 657°C (1,189°F to 1,215°F) |
| Specific Heat Capacity | 900 J/kg·K (0.215 BTU/lb·°F) |
- ISO: 6361
- ASTM: B209, B210, B211, B221, B483, B491, and B547
- EN: AW-1100A
- AFNOR: A45
Common Applications of AA 1100 (ISO 6361) Aluminum Alloy Plate
Food and Beverage Industry
Architectural Applications
Electrical Components
Heat Exchangers
-
AA 1100 (ISO 6361) Aluminum Alloy Plate Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Available in tailored lengths and widths to meet specific project requirements, ensuring precise fit and minimal material waste.
- Thickness Range: Offered in a wide range of thicknesses, from thin sheets to heavy plates, for diverse industrial applications.
- Surface Finishing: Supports various finishes like mill finish, anodizing, and polishing, enhancing appearance and corrosion resistance for specific uses.
- Processing Services: Includes cutting, bending, and forming services, enabling ready-to-use components for manufacturing and construction projects.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Experience unmatched corrosion resistance, exceptional thermal and electrical conductivity, and full customization to welcome your needs. Perfect for industrial and architectural applications, our AA 1100 (ISO 6361) aluminum plates can be customized to exact sizes, thickness, and finish. Whether you require a mill finish, anodizing, or any machining process, such as cutting and forming, they are all available to you. Wait no longer to make your projects a success by using top-quality aluminum plates!
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
