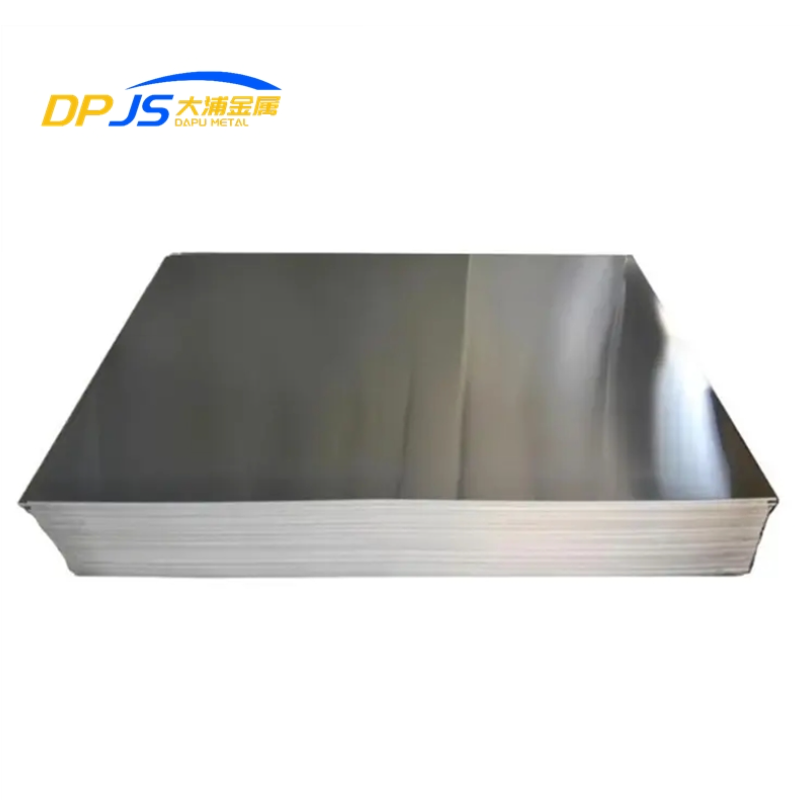

EN 1.4529 / UNS N08926 Stainless Steel Sheet
Top EN 1.4529 Stainless Steel Sheet Manufacturer in China
EN 1.4529 / UNS N08926 Stainless Steel Sheet offers excellent strength, durability, and corrosion resistance, making it an ideal choice for environmental protection. Used in rigorous marine and chemical plants, the material is highly reliable, long-lasting, and very strong. Its exceptionally high strength makes this steel suitable for use on beaches, offshore, and in many other applications. Utilize EN 1.4529 / UNS N08926 Stainless Steel Sheet for development and improvement.
Discover high-quality EN 1.4529 stainless sheet products here.
-
Characteristics of EN 1.4529 Stainless Steel
- Exceptional Corrosion Resistance: Resists pitting, crevice corrosion, and stress corrosion cracking in harsh environments.
- High Strength: Offers superior tensile and yield strength for demanding industrial applications.
- Marine Suitability: Engineered for excellent performance in seawater and halide-rich conditions.
- Chemical Resistance: Withstands exposure to aggressive chemicals like sulfuric and hydrochloric acids.
- Durability: Ensures long-lasting performance under extreme environmental and operational conditions.
- Weldability: Supports conventional welding techniques with low risk of hot cracking.
- Formability: Easily shaped and formed for diverse industrial uses.
- Thermal Stability: Maintains structural integrity and performance at high temperatures.
EN 1.4529 / UNS N08926 Stainless Steel Technical Specifications
| Element | Min (%) | Max (%) |
|---|---|---|
| Chromium (Cr) | 19 | 21 |
| Nickel (Ni) | 24 | 26 |
| Molybdenum (Mo) | 6 | 7 |
| Nitrogen (N) | 0.15 | 0.25 |
| Copper (Cu) | 0.5 | 1.5 |
| Carbon (C) | – | 0.02 |
| Manganese (Mn) | – | 2.00 |
| Silicon (Si) | – | 0.50 |
| Phosphorus (P) | – | 0.03 |
| Sulfur (S) | – | 0.01 |
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (Rm) | 650–850 | MPa |
| Yield Strength (Rp0.2) | ≥ 300 | MPa |
| Elongation (A5) | ≥ 35 | % |
| Hardness (HB) | ≤ 220 | HB |
| Modulus of Elasticity | Approx. 200 | GPa |
| Density | 8.1 | g/cm3 |
| Impact Strength | ≥ 60 | J |
| Thermal Expansion | 15 x 10⁻⁶ | 1/K |
| Property | Value | Unit |
|---|---|---|
| Density | 8.1 | g/cm³ |
| Thermal Conductivity | 12 | W/(m·K) |
| Specific Heat | 460 | J/(kg·K) |
| Electrical Resistivity | 1 | µΩ·m |
| Modulus of Elasticity | 195 | GPa |
- ASTM: UNS N08926
- JIS: SUS 8926
- EN: 1.4529 (X1NiCrMoCuN25-20-7)
- DIN: 1.4529
- NACE: MR0175/ISO 15156
Common Applications of EN 1.4529 / UNS N08926
Chemical Processing Equipment
Marine and Offshore Applications
Power Plant Systems
Pulp and Paper Industry
-
EN 1.4529 Stainless Steel Sheet Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Available in tailored lengths and widths to meet specific project requirements, ensuring precise fit and application.
- Thickness Range: Offered in a variety of thicknesses, from 0.5mm to 60mm, catering to diverse industrial and structural needs.
- Surface Finishing: Options include polished, brushed, and matte finishes, enhancing aesthetics and functionality for specialized applications.
- Processing Services: Includes cutting, beveling, and custom fabrication to deliver ready-to-use sheets for seamless integration into projects.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Experience top retarding forces of rust and an exceptional hardened level given to it for usage in harsh environments, including marine operations, chemical surroundings, and even in plants and factories. If you require our EN 1.4529 / UNS N08926 Stainless Steel Sheet supplies, please contact us at your convenience so we can determine the volume of delivery. Hurry up and procure your steel now that we have improved specifications of raw materials.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
