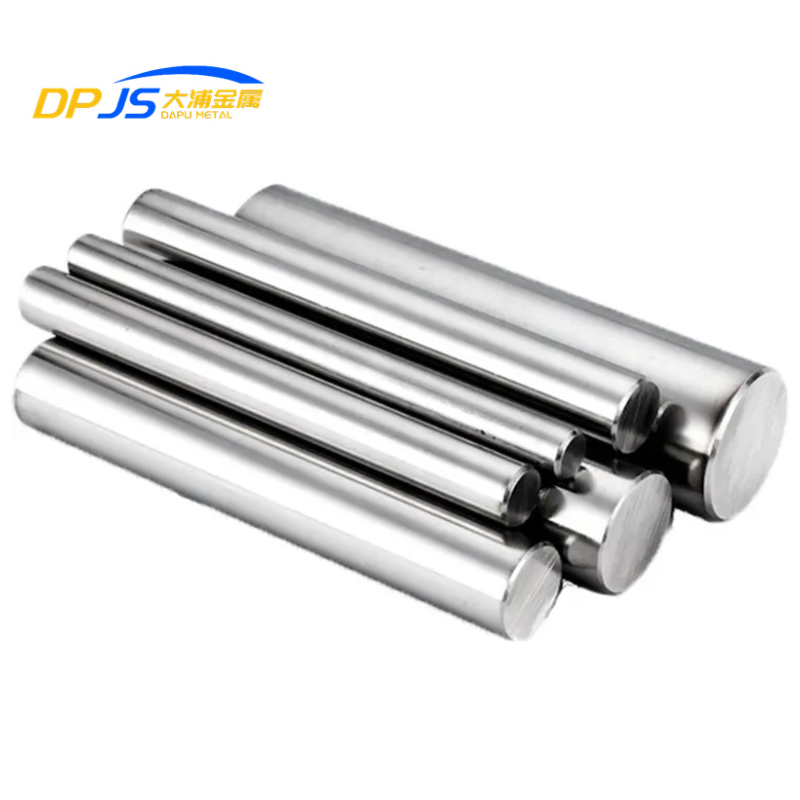

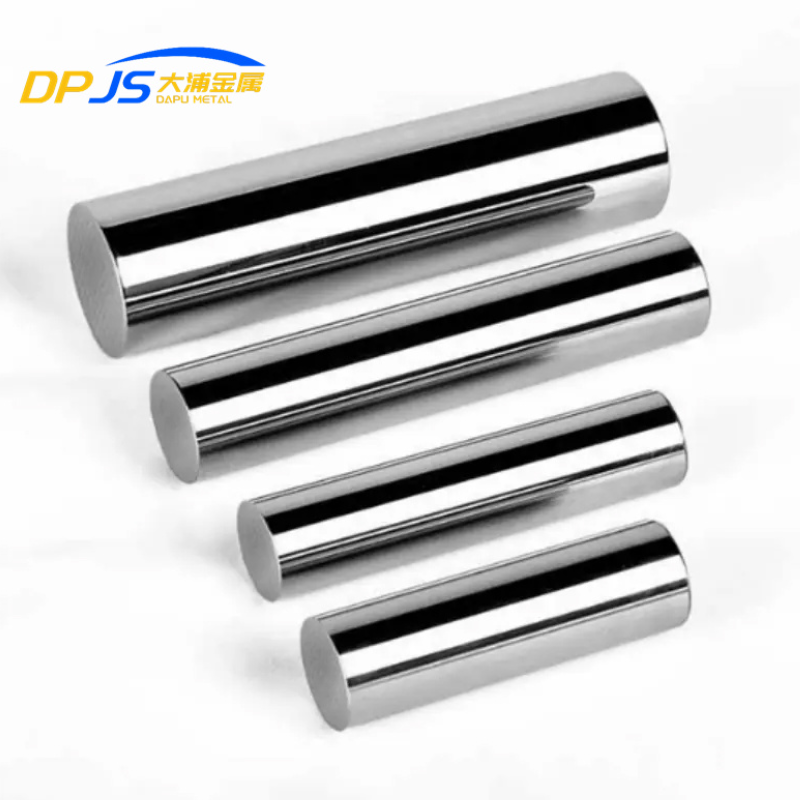

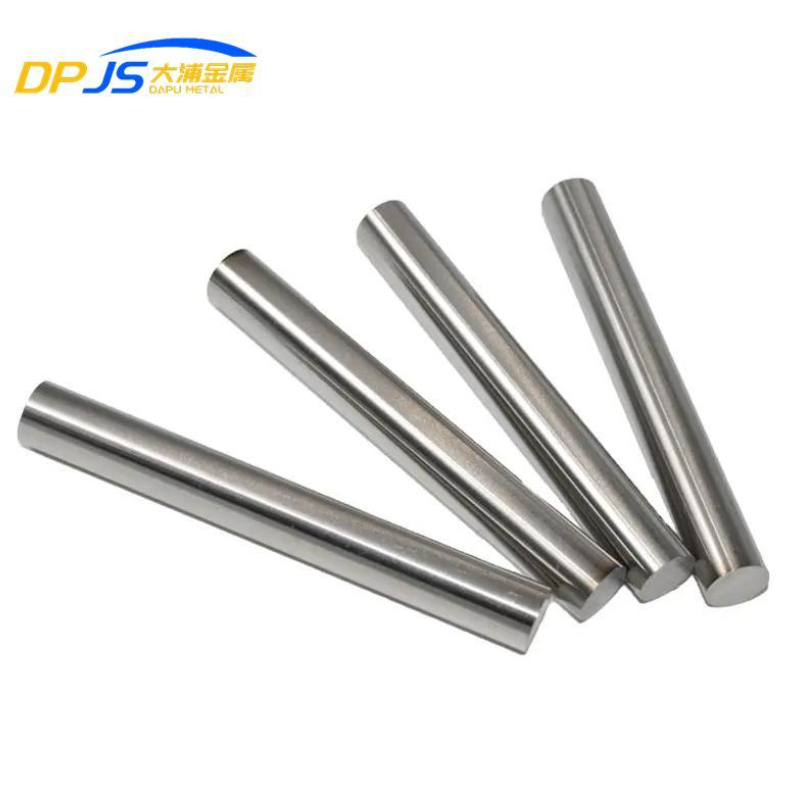

ASTM A276 630 (UNS S17400) Stainless Steel Rod
Top 630 Stainless Steel Rod Manufacturer in China
Developed primarily for the purpose of improved use, the ASTM A276 630 (UNS S17400) bore arofeh.m numberv of a C19t in very good condition. Possessing superior qualities such as high force, excellent corrosion resistance, and durability, this part of the item is best suited for demanding sectors such as aerospace, machinery, and ship building. The long solid piece was constructed with an aim of facing adverse conditions and withstanding medium sized errors, it has ones ing stronger in every application.
Discover high-quality 630 Stainless Steel Rod products here.
-
Characteristics of 630 Stainless Steel
- High Strength: Offers exceptional tensile and yield strength, ideal for demanding structural applications.
- Corrosion Resistance: Resists oxidation and corrosion, comparable to 304 stainless steel in most environments.
- Precipitation Hardening: Strengthened through heat treatment, enhancing durability and mechanical properties.
- Versatile Applications: Widely used in aerospace, marine, industrial, and medical industries for high-performance needs.
- Temperature Tolerance: Maintains strength and toughness at temperatures up to 600°F (316°C).
- Good Weldability: Can be welded using conventional methods without pre-heating, ensuring structural integrity.
- Machinability: Easily machined in solution-treated or heat-treated conditions, reducing production time and costs.
- Durability: Withstands harsh environments, ensuring long-lasting performance in critical applications.
ASTM A276 630 (UNS S17400) Stainless Steel Technical Specifications
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Carbon (C) | - | 0.07 |
| Chromium (Cr) | 15 | 17.5 |
| Nickel (Ni) | 3 | 5 |
| Copper (Cu) | 3 | 5 |
| Manganese (Mn) | - | 1 |
| Silicon (Si) | - | 1 |
| Phosphorus (P) | - | 0.04 |
| Sulfur (S) | - | 0.03 |
| Columbium + Tantalum (Nb + Ta) | 0.15 | 0.45 |
| Property | Condition | Value | Unit |
|---|---|---|---|
| Tensile Strength | Solution Treated | 1,105 | MPa (typical) |
| Condition H900 | ≥ 1,310 | MPa | |
| Condition H1150 | ≥ 930 | MPa | |
| Yield Strength | Solution Treated | 1,000 | MPa (typical) |
| Condition H900 | ≥ 1,170 | MPa | |
| Condition H1150 | ≥ 724 | MPa | |
| Elongation | Solution Treated | 15 | % (typical) |
| Condition H900 | ≥ 10 | % | |
| Condition H1150 | ≥ 16 | % | |
| Hardness | Solution Treated | ≤ 38 | Rockwell C |
| Condition H900 | ≥ 40 | Rockwell C | |
| Condition H1150 | ≤ 28 | Rockwell C |
| Property | Value | Unit |
|---|---|---|
| Density | 7,750 | kg/m³ (484 lb/ft³) |
| Thermal Conductivity | 18.4 | W/m·K (127.6 BTU·in/ft²·h·°F) |
| Specific Heat | 460 | J/kg·K (0.11 BTU/lb·°F) |
| Electrical Resistivity | 80 | nΩ·m (80 μΩ·cm) |
| Modulus of Elasticity | 200 | GPa (29,000 ksi) |
- UNS: S17400
- WERKSTOFF NR.: 1.4542
- JIS: SUS 630
Common Applications of 630 Stainless Steel
Aerospace Components
Marine Equipment
Oil and Gas Industry
Industrial Machinery
-
630 Stainless Steel Rod Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: Available in various lengths and diameters tailored to specific project requirements for precision and efficiency.
- Thickness Range: Offered in a wide range of thicknesses, accommodating diverse industrial and engineering applications.
- Surface Finishing: Options include bright, polished, and black finishes to meet aesthetic and functional needs.
- Processing Services: Includes cutting, heat treatment, and surface polishing to deliver ready-to-use components for specialized applications.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
ASTM A276 630 rods are strong, non-corrosive, high-tolerance and suitable for the use they are made for. These steel rods suit avionics, industrial and marine applications in severe environments with high levels of durability and performance. Start actively using stainless steel of the highest grade and quality to boost your productivity and reinforce your design.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
