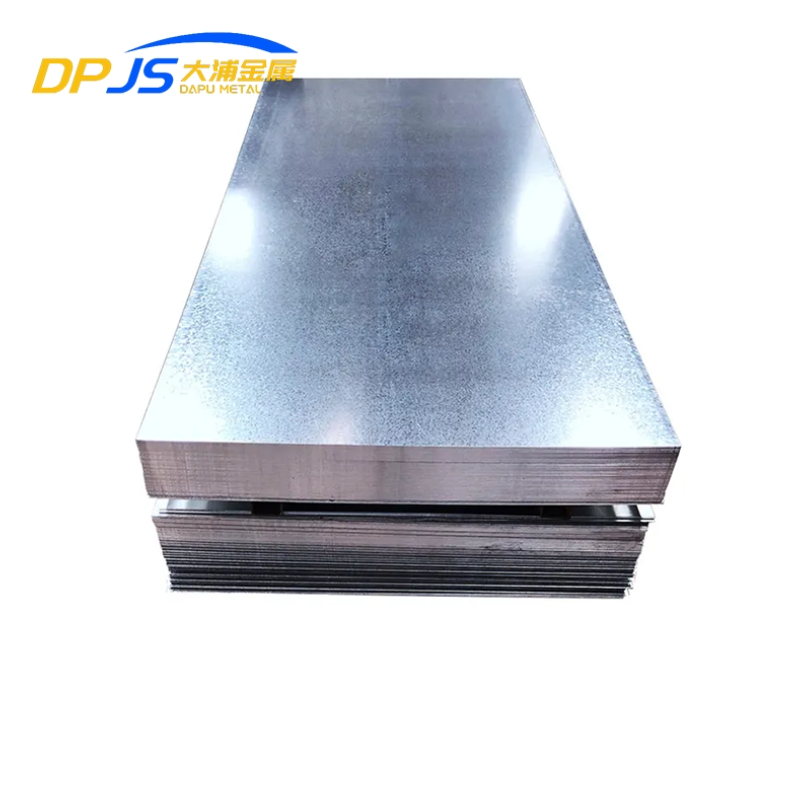

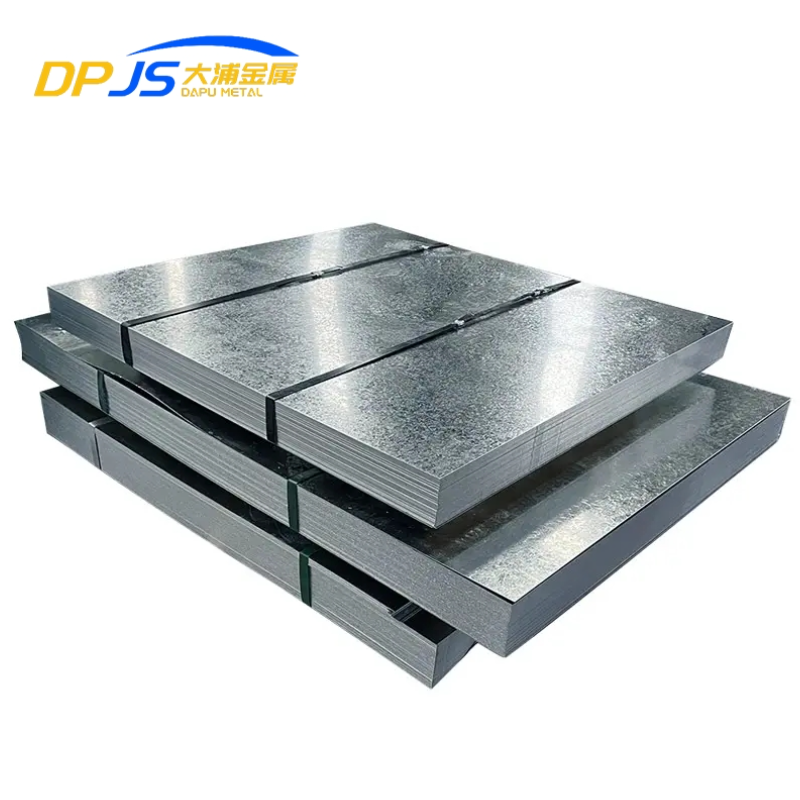

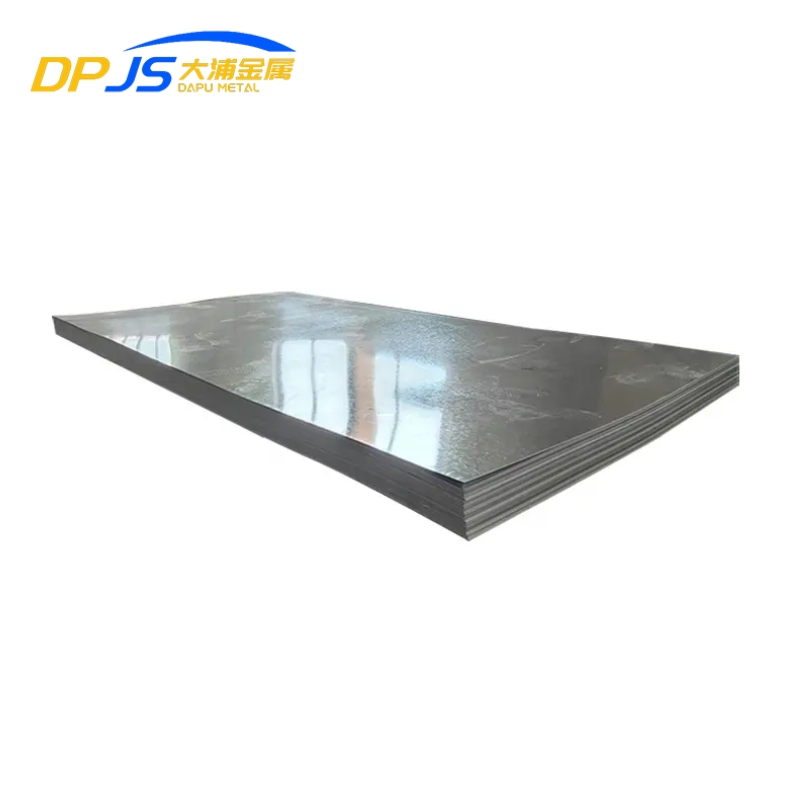

ASTM A653/A653M (EN 10346) Galvanized Sheet
TOP A653/A653M (EN 10346) Galvanized Sheet IN CHINA
ASTM A653/A653M is the premier choice for applications requiring exceptional corrosion resistance and formability. This product is created by hot-dipping a carbon steel sheet in a bath of molten zinc, which creates a durable, protective coating. This zinc layer provides excellent barrier and sacrificial protection against rust, ensuring maximum structural integrity and longevity. This versatile steel offers a cost-effective and highly reliable solution for a vast range of construction, automotive, and appliance manufacturing projects, delivering both outstanding performance and a bright, spangled finish that stands the test of time.
Discover high-quality A653/A653M (EN 10346) Galvanized Sheet products here.
-
Characteristics of A653/A653M (EN 10346) Galvanized Sheet
- Exceptional Corrosion Resistance: The zinc coating provides a robust barrier against rust and oxidation, significantly extending the steel’s lifespan in various environments.
- Sacrificial Protection: Even if the coating is scratched or damaged, the zinc sacrifices itself to protect the underlying steel.
- Excellent Formability: The base steel sheet retains good ductility, allowing it to be easily bent, stamped, and deep drawn.
- Durable & Long-Lasting: Offers superior durability and a long service life, reducing the need for frequent maintenance or replacement compared to uncoated steel.
- Cost-Effective Solution: Provides a durable, corrosion-resistant option at a more economical price point.
- Good Weldability: Can be readily welded using appropriate techniques, although ventilation is required due to the generation of zinc fumes.
- Paintable Surface: While protective on its own, the surface can be easily painted or coated for additional aesthetic appeal or enhanced corrosion resistance.
- Versatile Applications: Ideal for a wide range of uses in construction, automotive parts, agricultural equipment, and HVAC systems.
ASTM A653/A653M (EN 10346) Galvanized Sheet Technical Specifications
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.20 max |
| Manganese (Mn) | 1.35 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.04 max |
| Grade Designation | Yield Strength (min) | Tensile Strength (min) | Elongation % (in 2 in.) |
|---|---|---|---|
| CS (Commercial Steel) | - | - | - |
| DDS (Deep Drawing Steel) | 20 ksi (140 MPa) | 40 ksi (275 MPa) | 30% |
| SS Grade 33 | 33 ksi (230 MPa) | 45 ksi (310 MPa) | 20% |
| SS Grade 50 Class 1 | 50 ksi (345 MPa) | 65 ksi (450 MPa) | 12% |
| Coating Designation | Minimum Weight (Total Both Sides) |
|---|---|
| G30 | 0.30 oz/ft² (90 g/m²) |
| G40 | 0.40 oz/ft² (120 g/m²) |
| G60 | 0.60 oz/ft² (180 g/m²) |
| G90 | 0.90 oz/ft² (275 g/m²) |
- ASTM： A653 / A653M
- EN (European)： EN 10346 (Grades DX51D, S280GD, etc.)
- JIS (Japanese)： G 3302 (Grades SGCC, SGCD, etc.)
- ISO： 3575
Common Applications of A653/A653M (EN 10346) Galvanized Sheet
Construction & Roofing
Automotive Industry
HVAC & Appliances
Agricultural Equipment
-
A653/A653M (EN 10346) Galvanized Sheet Customization
In addition to standard stock, we offer comprehensive processing services to ensure products that meet your exact project requirements.
- Custom Dimensions: We offer slitting for coils and cut-to-length/shearing services to match your specific length and width needs.
- Coating Weight: Sheets are available in a wide variety of zinc coating weights (e.g., G30, G60, G90) to suit different levels of required corrosion protection.
- Surface Finish: Choose from multiple surface types, including regular spangle, minimized spangle, and extra smooth (spangle-free) for superior paintability.
- Processing Services: We offer value-added fabrication, including bending, roll-forming, stamping, punching, and corrugating.
Contact our technical team to discuss your custom fabrication needs.
