Understanding ASTM A269: The Standard for Stainless Steel Tubing

Profiles of stainless steel tubing are offered commercially all over and are widely required in many industries due to their hollows Bentley. ASTM A269 is just the most common standard for tubes and pipes. The specification covers requirements for seamless and welded austenitic stainless steel tubing intended for general application. We might as well consider what exactly is included in ASTM A269 and its importance. Picking through the key elements of ASTM A269, the article will give a reasonable understanding of the scope and specifications and why these are important to manufacturers, engineers, and end-users. Whether you’re purchasing or simply want to add to your technical vocabulary, this report will offer a well-founded resource.

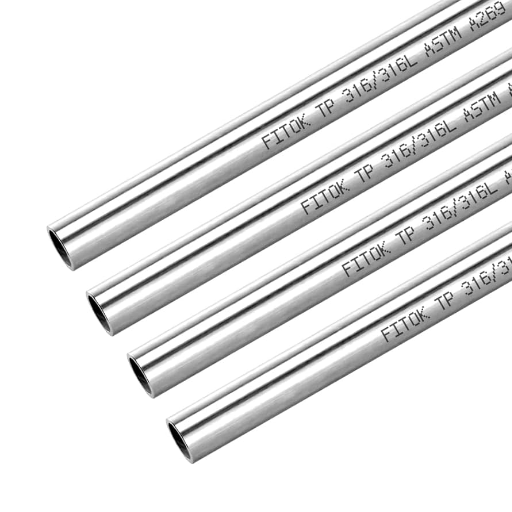

Overview of ASTM A269

ASTM A269 is a standard specification covering seamless and welded austenitic stainless steel tubing for corrosion-resisting and low- or high-temperature service. It mainly deals with tubing for use in industries where severe corrosion conditions prevail, such as chemical, food, and health industries. The standards specify things like material composition, mechanical properties, dimensions, and manufacturing requirements of production. The ASTM A269 standard is thus an assurance of quality and reliability required for severe service.

What is ASTM A269?

ASTM A269 is a standardized specification developed and maintained by ASTM International. It defines requirements for seamless and welded austenitic stainless steel tubing for general corrosion resisting and low- or high-temperature service. This specification pertains to stainless steel tubes that find extensive use in chemical processing, oil and gas, instrumentation, food and beverage production, and healthcare equipment. The criteria classify variations in dimensions, tensile strength, hardness, and corrosion resistance. In addition to the above, tubes complying with ASTM A269 have to conform to well-defined manufacturing practices to offer dependable service in harsh conditions, which may be exposure to high pressure, fluctuating temperatures, or aggressive chemicals. Testing procedures such as eddy current or hydrostatic testing are also conducted to confirm structural integrity and material homogeneity. ASTM A269 is designed to ensure standardization, safety, and reliable performance in industrial applications.

History and Development of the Standard

ASTM A269 is a specification maintained by ASTM International, initiated to meet the demand for reliable guidelines concerning seamless and welded austenitic stainless steel tubing. The standard was first established to assist critical applications in industries such as chemical processing, oil and gas, and aerospace, and has been periodically reviewed in line with advances in the sciences of materials and manufacturing technologies. Early issues dealt with corrosion resistance and more or less basic dimensional tolerances, but as the needs of industry developed, greater emphasis has been placed on strict mechanical properties and testing procedures.

Recent revisions to ASTM A269 are a reflection of modern engineering concerns, such as tubing capable of withstanding severe thermal cycling and corrosive environments. An improved inspection regimen ensures compliance and quality consistency in all applications by including high-precision ultrasonic inspection and microstructure analysis. These evolutionary changes speak of the ASTM A269 as a living standard, moulded by both applications of the past as well as the even faster pace of innovation in the industries.

Importance of Compliance with ASTM A269

When it comes to applications where severe conditions exist, one must absolutely ensure that it really is ASTM A269 compliance that makes the tubing dependable and safe. This basically means that the utmost levels of tensile strength, corrosion resistance, and dimensional tolerances will be maintained according to the specification. Such requirements, for example, become much more stringent under a chemical processing environment, wherein the tubes are exposed to substances at extreme temperatures or high pressure-whether in power generation or aerospace.

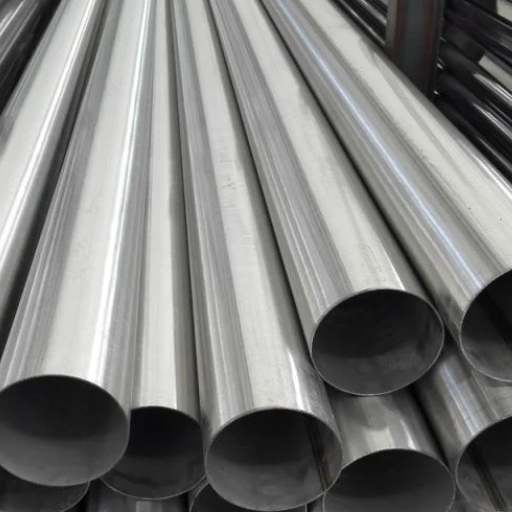

Technical Specifications of ASTM A269

1. Material Grades: It covers grades like 304, 304L, 316, and 316L, but with some modifications depending on the actual need.
2. Wall Thickness and Outer Diameter: Tubing dimensions should be within the tolerance permitted by the standard to ensure exact and uniform construction.
3. Mechanical Properties: At least every type of stainless steel requires compliance with a minimum tensile and yield strength. Elongation percentage should be as specified for ductility.
4. Testing Requirements: The tubing shall be tested with an eddy current or ultrasonic method of nondestructive testing for structural integrity. Hydrostatic testing shall be conducted to ensure the tubing can bear pressure.
5. Surface Finish: Tubes should have a good finish, free of possible surface marks that may affect performance.

The specifications ensure that the tubing satisfies the industrial reliability standards while providing a balanced combination of strength, corrosion resistance, and durability to be used in several applications.

Material Composition Requirements

Tubing materials have to have very strictly characterized quality and performance standards for industrial usage. Typical composition for stainless steel tubing includes chromium at 16-18% and nickel at 8-10.5% to ensure corrosion resistance, with carbon, manganese, and silicon in much smaller amounts that serve to strengthen and make the metal more malleable. Molybdenum (2-3%) might also be added lest another layer of protection, especially against pitting and crevice corrosion, be provided for chloride-rich environments. Sulfur and phosphorus are very much controlled within stipulated limits to avert brittleness and weldability problems. The specifications are laid down by standards such as ASTM A213 or A269, which cater for consistency and compatibility for those of highly restrictive nature. Applications are in the fields of petrochemical, aerospace, and medical industries.

Dimensional Tolerances for Tubing

Dimensional tolerances for tubing are extremely vital for guaranteeing reliable performance of the components, particularly in high-precision applications. OD tolerance means the allowable variance of the measurement of the outside diameter of a tube. For instance, generally, stainless steel tube OD tolerances range between ±0.005 inches (0.13 mm) and ±0.002 inches (0.05 mm) according to the finished diameter and the specifications called ASTM A269 and ASTM A511.

Wall thickness variation follows to keep the product safe and within limits of ±10% of the nominal wall thickness under varied operating pressure conditions. Also, straightness tolerances are applicable, especially for longer tubes, maintaining deviations within, for example, 0.010 inches per foot of tube length, ensuring accurate alignment in assemblies.

Length tolerances vary depending on whether the tubes are delivered in fixed lengths or coils, with fixed lengths normally allowing a deviation of ±0.125 inches (3.2 mm) per section. Measurements are made very attentively through the use of extremely accurate precision measuring devices such as micrometers and calipers, with lasers also being used to verify conformity with the industry’s requirements for the ability to perform consistently and reproducibly.

Testing Requirements for ASTM A269 Compliance

1. Hydrostatic or Nondestructive Electric Tests

Each piece of tubing shall undergo hydrostatic testing to ascertain if it can bear a given pressure without leakage or breaking. Alternatively, nondestructive electric testing may be performed, such as eddy current testing or ultrasonic testing, to locate surface and subsurface discontinuities in tubing.

2. Dimensional Verification

Tubing dimensions, including wall thickness, outside diameter, and length tolerances, are measured against the values specified in the standard. Pavement instruments are used for the purpose of meeting the tolerances, with deviations strictly limited to avoid weaknesses in the material or misalignment during installation.

3. Chemical Composition Analysis

Chromium, nickel, and other alloying elements must lie within the percentage range set forth by ASTM A269. The chemical composition is measured by means of optical emission spectrometry (OES) or x-ray fluorescence (XRF) to ensure the compliance of the material with a particular grade of stainless steel.

4. Mechanical Property Testing

Testing of the tubes is carried out according to ASTM A269 for tensile strength, yield strength, and elongation. Test methods ensure that the mechanical properties of these materials are tested to ensure that the materials can be used for high-pressure and high-temperature conditions.

5. Corrosion Resistance Testing

Since stainless steel is generally exposed to corrosive conditions, intergranular corrosion and pitting resistance are considered by some tests, such as those developed in ASTM A262 practice for the determination of susceptibility of austenitic stainless steels to intergranular attack.

Types of Tubing Covered by ASTM A269

ASTM A269 covers general-purpose seamless and welded stainless steel tubes. The standard covers instrumentation, mechanical, and structural tubing used extensively in chemical process, food production, and medical equipment industries. Tubes made to this specification are predominantly made from austenitic stainless steels that provide excellent corrosion resistance and durability. The dimensional tolerances, wall thickness, and surface finish requirements are set forth explicitly to meet performance and reliability standards.

Seamless vs. Welded Tubing

Parameter	Seamless Tubing	Welded Tubing
Manufacturing Process	Extruded through a die, no seams	Made from flat-rolled strip, welded seam
Strength	Uniform strength due to seamless structure	Slightly weaker at welded seam
Dimensional Precision	High precision	Precision depends on welding quality
Corrosion Resistance	No weak points for corrosion	Seams may affect corrosion resistance
Cost	Higher due to complex manufacturing	Lower, more cost-effective production
Wall Thickness Uniformity	Consistent	May vary near the welded joint
Pressure Handling	Ideal for high-pressure applications	Suitable for moderate-pressure uses
Availability	Limited to specific sizes and lengths	More versatile in sizes and lengths
Surface Finish	Generally smoother	May have slight imperfections at seams
Applications	Critical environments, e.g., aerospace	General industrial applications

Austenitic Stainless Steel Tubing

Austenitic stainless steel tubing happens to be the most commonly used class of stainless steel because of its higher resistance to corrosion, superior mechanical properties, and great versatility in the more demanding applications. The said material, which primarily comprises iron, chromium (usually over 16%), and nickel, offers an excellent resistance against oxidation and chemical attack even under harsh conditions. Grade variations such as 304 and 316 provide solution options to meet industry-specificities. For example, 316-grade tubing has molybdenum that particularly enhances its resistance to pitting and crevice corrosion, thus rendering the tubing suitable for marine and chemical-type environments.

In addition, the austenitic tubing boasts good weldability and formability, thereby becoming the preferred candidate for intricate fabrication work. It maintains very high ductility and toughness at least to cryogenic temperatures, which equally widens the scope of its application in critical aerospace, medical instrumentation, and food-processing applications. Very accurate in manufacturing tolerances and uniform wall thicknesses guaranteed through advanced manufacturing processes make them reliable for use under high pressure and highly dynamic conditions. These characteristics have established austenitic stainless steel tubes as a favorite across industrial, structural, and high-performance fields.

Comparison ASTM A312 with ASTM A269

Key Point	ASTM A312	ASTM A269
Application Focus	High-temperature, industrial pipelines	General-purpose tubing for various industries
Material	Austenitic stainless steel	Austenitic and ferritic stainless steel
Size Range	Larger diameters	Smaller diameters
Pressure Tolerance	High-pressure applications	Moderate-pressure applications
Temperature Resistance	Suitable for extreme temperatures	Moderate temperature resistance
Manufacturing Process	Seamless or welded	Seamless or welded
Surface Finish	Standard industrial finish	Highly controlled surface finish
Tolerance Standards	Tight tolerances for critical systems	Balanced tolerances for versatility
Typical Industries	Oil & gas, petrochemical, power generation	Food, chemical, automotive, HVAC
Testing Requirements	Stringent mechanical and corrosion tests	General tests for integrity and safety

Applications of ASTM A269 in Various Industries

ASTM A269 tubing finds increased demand in industries that require precision and reliability. From resisting corrosion and acting under varied conditions of pressure and temperature, it becomes imperative for the following:

• Oil & Gas Industry: Instrumentation tubing used during hydraulic work and process lines in a harsh environment.
• Chemical Industry: For use in treatment of corrosive fluids and gases due to resistance of degradation.
• Food Processing: Provide for the processes involving liquids and gases hygiene and safety from its high surface finish and non-reactive property.
• Automotive and HVAC Systems: Used there to Heat exchangers and fluid transfer lines, allowing optimal performance to varied operational conditions.
• Pharmaceuticals: For sterile manufacture of environments in which purity and material integrity are of utmost concern.

Thus demonstrating the versatility and reliability of ASTM A269 tubing in difficult industrial environments.

Use in Chemical Processing

ASTM A269 tubing finds its applications in chemical processing, where material performance is of utmost importance. Due to its corrosion resistance, when manufactured from stainless steel grades such as 304 and 316, it can be expected to stand more or less indefinitely in an environment exposed to aggressive chemicals, acid, and high temperatures. It’s working under extreme pressure and with huge variation in temperature makes it suitable for all heat exchangers, chemical reactors, and other fluid transfer processes. Its complete seamless nature further eliminates seepage and contamination, upping both safety and efficiency. Specifications include close dimensional tolerances and good surface finish, which prevent the buildup of material and chemical reaction, thus making ASTM A269 tubing a well-trusted solution for maintaining the purity of the process in industries like petrochemical and pharmaceutical.

Food and Beverage Industry Compliance

ASTM A269 tubing is critical within the food and beverage manufacturing industry for sanitary concerns and regulatory compliance. Given its resistance to corrosion, along with a smooth surface that grants resistance to bacterial build-up and contamination of products, it is suitable for use in dairy, brewing, and liquid food processing-related applications. Besides, it complies with FDA standards and 3-A Sanitary Standards, ensuring safety and non-toxicity for the materials involved in the production process. It also is designed for cleaning under pressure and heat conditions, making sterilization and clean-in-place systems reliable. These qualities render ASTM A269 tubing a very worthy selection for the safe, efficient, and quality-based food and beverage manufacturing systems.

Aerospace Applications and Standards

With ASTM A269 tubing, the aerospace sector benefits from its qualities, which make it indispensable. Where extreme precision, reliability, and adherence to strict standards are the few key differentiators, corrosion resistance, high-pressure resistance, and increased mechanical performance make this tubing an ideal fit between fuel, hydraulic, and instrument lines in aircraft.

Here is a list of the important specifications and standards applicable in aerospace use:

• ASME SB-338: Deals with the material composition requirements and mechanical properties of tubing for aerospace systems.
• AMS 5560 and AMS 5570: Covers stainless steel tubing used in the aerospace industry for high-temperature and pressure environments.
• ASTM E273/E273M: Standard for ultrasonic testing of tubing to detect the presence of critical internal defects.
• SAE J467: Focuses on the strength, hardness, and other mechanical properties of tubing materials suited for aerospace applications.

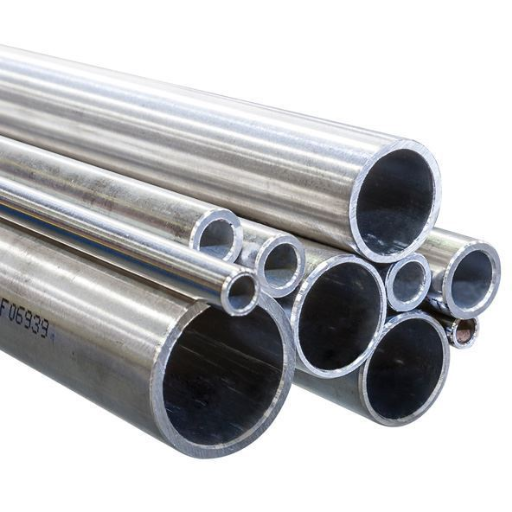

Practical Tips for Sourcing and Using ASTM A269 Tubing

1. Verify Supplier Credentials

Ensure the supplier is certified and experienced in ASTM A269 tubing provision. Request certification that the tubing complies with ASTM A269 standards so that noncompliant materials are avoided.

2. Understand Application Requirements

Specify clearly the service conditions such as temperature ranges, pressure, corrosion exposure, etc., to make a material selection for the tubing material (stainless steel 304 or 316 grades).

3. Specify Dimensional Accuracy

Check dimensions such as wall thickness and outer diameter of the tubing; this must be exactly the dimension required for your project so that it fits and performs well.

4. Request Testing Certifications

Ask for material test reports (MTRs) to prove chemical composition and mechanical properties, such that the tubing maintains strength and durability levels required for the project.

5. Inspect Upon Delivery

Inspect the tubing thoroughly for defects and examine uniformity and cleanliness on arrival to ascertain quality and avoid any chance of installing suspect material.

Selecting the Right Supplier

The selection of the supplier for industrial tubing has to be evaluated very rigorously to ascertain reliability and quality with time. Such an evaluation process should begin with having a look into the certification possessed by the supplier, i.e., whether the supplier has the certification for ISO 9001 or any equivalent quality management standard; such certification would imply sufficient adherence to very stringent manufacturing and operational protocols. Review the supplier’s production capacity to ensure it can currently meet demands and potentially scale up without compromising quality or delivery time. Do check their track record for delivery on time and consistency via testimonials or case studies obtained from long-term customers.

Additionally, work with suppliers that provide traceability of their material and documentation thereof, such as batch-specific Material Test Reports (MTRs), to guarantee full responsibility of the supplier, and hence compliance to industry requirements. Another consideration would be technical support from the supplier; one that understands product application and will be responsive with troubleshooting can be essential for reducing risks in the course of daily operations. A good compromise would result in the selection of a supplier that meets both the immediate project goals and the long-term need for operational reliability.

Best Practices for Handling and Installation

Materials or equipment must be handled and installed correctly to guarantee operation, durability, and safety. Compatible storage with these materials is in a clean, dry environment to prevent contamination or degradation. When handling heavy components, use suitable equipment such as a forklift or crane in order to avoid back strain or physical injury. Also, follow installation instructions imparted by manufacturers, including ranges via temperature or humidity, concerning the preservation of component integrity.

Measurement is to be specific in installation activities, and the use of calibrated tools will ensure correct alignment. Adherence to tightening torque specifications of fastening element reduces stress concentration, thus lowering the possibility of failure of such equipment. For electrical installations, grounding/shielding shall be done accurately to guard against EMI and electrical safety standards. This is followed by post-installation inspection and testing, during which the verification of functional capability, the discovery of faults, and the verification of respective standards comprise part of pre-operational procedures.

Maintenance Tips for Longevity

1. Regular Inspection and Cleaning

Inspection in scheduled intervals to observe any appearance of wear, corrosion, or accumulation of debris is deemed necessary. For example, it has been confirmed that cleaning gives an improvement of up to 15% in energy efficiency of an HVAC system. Use the recommended type of tools and cleaning agents to avoid damaging delicate parts.

2. Lubrication of Moving Components

Apply manufacturer-recommended lubricants to minimize the friction and wear of moving machinery. Studies have shown that maintaining lubrication can improve the life expectancy of machinery parts by almost 40%, thus allowing for less downtime due to their failures.

3. Monitoring System Performance

Utilize diagnostic tools to monitor performance metrics such as voltage, current, and temperature. Unexpected fluctuations can indicate impending issues, allowing for proactive intervention. Data logging can provide insights into long-term performance trends.

4. Replace Worn or Expired Parts

Follow the replacement schedule as stated in the operational manual for the system. For example, filter replacement in a filtration system every three to six months will allow the system to operate efficiently and meet environmental standards.

5. Calibration of Instruments

Reference Sources

1. ASTM A269/A269M-15a(2019) – Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing

• Summary: This specification outlines the requirements for seamless and welded austenitic stainless steel tubing used in general corrosion-resisting and low- or high-temperature services.

2. ASTM A269 vs A270 – Whitepaper by United Industries

• Summary: This document compares ASTM A269 (general service tubing) with ASTM A270 (sanitary tubing). Key differences include:
  • A269: Focuses on mechanical integrity and corrosion resistance, with less stringent surface finish requirements.
  • A270: Emphasizes surface finish and cleanability, making it suitable for pharmaceutical and food industries.

3. Difference Between ASTM A213 and A269 – Baosteel Pipes

• Summary: This article highlights the applications and manufacturing differences between ASTM A213 (used for high-temperature and high-pressure applications) and ASTM A269 (used for general corrosion-resisting services).

Frequently Asked Questions (FAQs)

Q: What is ASTM A269 and how does it relate to seamless tubing?

A: ASTM A269 is a standard specification for seamless and welded stainless steel tubing intended for general service. This specification is particularly important because it outlines the requirements for chemical composition, mechanical properties, and manufacturing processes for tubing used in various applications. The seamless tubing produced under ASTM A269 is typically made from austenitic steel, which provides excellent corrosion resistance and durability. The specification also includes details on non-destructive electric tests and flaring tests to ensure the integrity of the tubing. Manufacturers and suppliers often rely on ASTM A269 to meet the specific requirements of various industries, including construction and manufacturing.

Q: Can you explain the ASME SA 269 specification for welded tube?

A: ASME SA 269 is essentially the same as ASTM A269, as it pertains to the same type of stainless steel tubing but is specifically tailored for use in ASME applications. This specification covers both seamless and welded tubes, ensuring that they meet specific requirements for quality and performance. The welded tubes produced under ASME SA 269 must undergo rigorous testing, including hardness tests and chemical composition requirements, to ensure they are suitable for high-pressure and temperature applications. These tubes are often used in boiler and heat exchanger applications where reliability is crucial. Understanding these specifications helps manufacturers provide products that meet industry standards.

Q: What are the typical applications of ASTM A269 stainless steel tube?

A: ASTM A269 stainless steel tubes are widely used in applications requiring corrosion resistance and strength. Common applications include chemical processing, food and beverage production, and pharmaceuticals, where sanitary conditions are paramount. The specification covers tubing suitable for general service, which means it can handle various environmental conditions, including low temperatures. Additionally, the tubes can be used in mechanical applications that require welding, thanks to their excellent weldability. Industries that require precise dimensions and high-quality finishes often prefer ASTM A269 tubes for their reliability and performance.

Q: What are the requirements outlined in the ASTM A269 specification?

A: The ASTM A269 specification outlines several key requirements for stainless steel tubing, including chemical composition, mechanical properties, and testing methods. The specification emphasizes that the steel shall conform to specific requirements concerning carbon and nitrogen content, ensuring the material can withstand various corrosive environments. Additionally, it mandates that the tubing undergo non-destructive electric tests to ensure no defects are present. The standard also specifies that the tubing must meet certain dimensions, such as 12.7 mm and 6.4 mm, depending on the application. Understanding these requirements is crucial for manufacturers and suppliers to ensure compliance and quality.

Q: What is the significance of the ASTM A312 specification in relation to ASTM A269?

A: ASTM A312 is another specification that is often compared to ASTM A269, as it specifically pertains to seamless and welded stainless steel pipe. While ASTM A269 focuses on tubing, ASTM A312 deals with pipes that are typically used in high-pressure applications. Both specifications outline similar chemical composition requirements and mechanical properties, but the primary difference lies in their intended use. Manufacturers may refer to ASTM A312 when producing larger diameter products, while ASTM A269 is used for smaller tubing applications. Understanding both specifications helps in selecting the right product for specific engineering needs.
