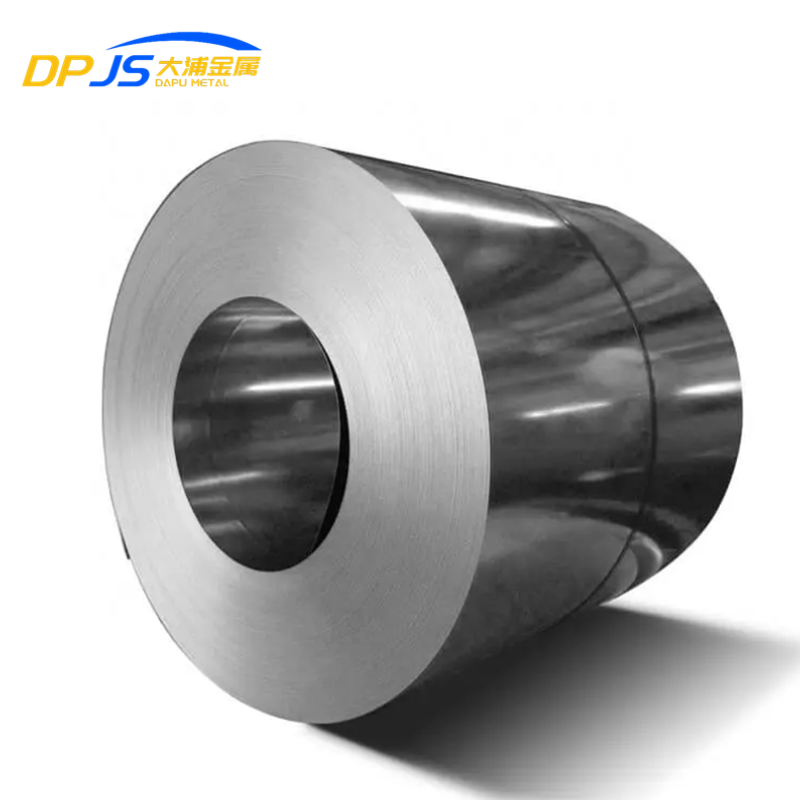

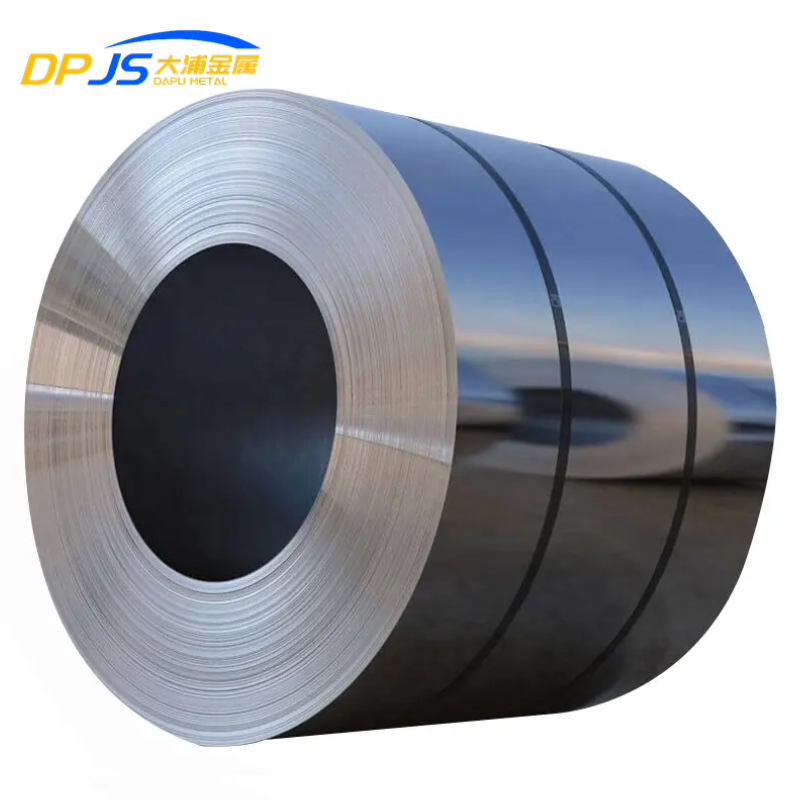

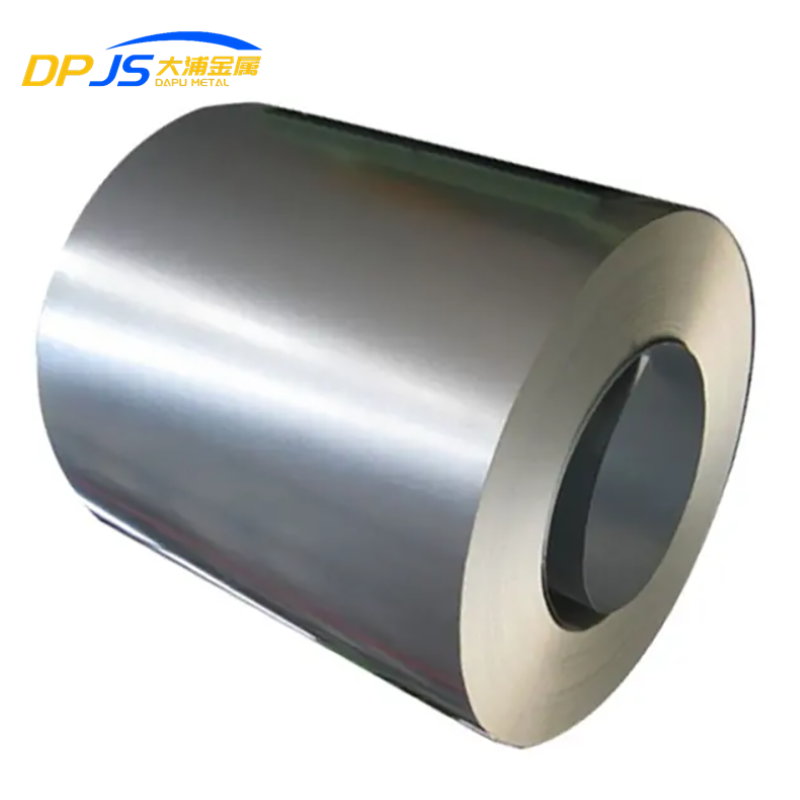

AA 6063 (EN AW-6063) Aluminum Alloy Coil
TOP 6063 ALUMINUM Alloy COIL SUPPLIER IN CHINA
AA 6063 (EN AW-6063) is the premier choice for applications requiring a superior surface finish, good corrosion resistance, and excellent extrudability. As the industry-standard “architectural alloy,” its magnesium and silicon additions allow it to be easily formed into complex shapes and achieve a high-quality aesthetic, especially after anodizing. This heat-treatable aluminum alloy provides a versatile, high-quality, and reliable solution for a wide range of architectural, decorative, and industrial projects, delivering both outstanding performance and a flawless visual finish that withstands the test of time.
Discover high-quality 6063 aluminum alloy coil products here.
-
Characteristics of 6063 Aluminum Alloy
- Exceptional Surface Finish: Known for producing an incredibly smooth and clean surface, making it the top choice for decorative and architectural applications where aesthetics are critical.
- Excellent for Anodizing: Its chemical composition is ideal for anodizing, resulting in a durable and corrosion-resistant finish.
- Superior Extrudability: Widely regarded as the best aluminum alloy for extruding complex shapes, allowing for intricate and custom profile designs.
- Good Corrosion Resistance: Offers solid resistance to atmospheric corrosion, making it suitable for outdoor architectural trim.
- Good Formability & Weldability: This material can be easily bent, formed, and welded in the T4 temper.
- Heat Treatable for Strength: As a heat-treatable alloy, it can be strengthened after forming to achieve moderate strength.
- Balanced Strength & Lightweight: Offers a superb combination of moderate tensile strength, lightweight, and rigidity for architectural and structural support applications.
- Cost-Effective & Recyclable: A durable, long-lasting material that offers an outstanding lifecycle value and is fully recyclable without any loss of quality.
AA 6063 (EN AW-6063) Aluminum Alloy Coil Technical Specifications
| Element | Content (%) |
|---|---|
| Silicon (Si) | 0.20 - 0.60 |
| Iron (Fe) | 0.35 max |
| Copper (Cu) | 0.10 max |
| Manganese (Mn) | 0.10 max |
| Magnesium (Mg) | 0.45 - 0.90 |
| Chromium (Cr) | 0.10 max |
| Zinc (Zn) | 0.10 max |
| Titanium (Ti) | 0.10 max |
| Aluminum (Al) | Remainder |
| Temper | Tensile Strength (min) | Yield Strength (0.2% offset, min) | Elongation % (in 2 in.) |
|---|---|---|---|
| T4 | 22 ksi (152 MPa) | 13 ksi (90 MPa) | 14% |
| T5 | 27 ksi (186 MPa) | 21 ksi (145 MPa) | 10% |
| T6 | 35 ksi (241 MPa) | 31 ksi (214 MPa) | 10% |
| Property | Value |
|---|---|
| Density | 2.70 g/cm³ (0.0975 lb/in³) |
| Modulus of Elasticity | 10.0 x 10⁶ psi (69 GPa) |
| Coefficient of Thermal Expansion (20-100°C) | 23.4 µm/m°C (13.0 µin/in°F) |
| Thermal Conductivity (at 25°C) | 201 W/m·K |
| Electrical Resistivity (at 20°C) | 3.3 x 10⁻⁸ Ω·m |
| Melting Range | 615 - 655°C (1140 - 1210°F) |
- UNS： A96063
- EN (European)： EN AW-6063
- ISO： AlMg0.5Si
- JIS (Japanese)： A6063
Common Applications of 6063 Aluminum Alloy
Architectural & Building
Architectural Trim & Railings
Piping & Tubing
Industrial & OEM Components
-
AA 6063 Aluminum Alloy Coil Customization
In addition to standard stock, we offer comprehensive processing services to ensure products that meet your exact project requirements.
- Custom Dimensions: We offer precision slitting to deliver coils in your specific required widths and can also provide cut-to-length sheets for your fabrication needs.
- Temper Range: Coils are available in various tempers, including T4, T5, and T6, allowing you to select the optimal combination of formability and final strength.
- Surface Finishing: Choose from multiple finishes, including standard mill finish, pre-painted (color-coated), or clear and color anodized for maximum durability and aesthetic appeal.
- Processing Services: We offer value-added services, including the application of protective films for surface protection during transport and fabrication.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Your project’s success hinges on the use of superior materials. We supply certified AA 6063 aluminum coils that meet rigorous industry standards, ensuring absolute confidence in your application’s performance and longevity. As your dedicated partner, we utilize our vast inventory and advanced processing services to meet your exact specifications, from standard stock to fully customized coils. We deliver not just a product, but a promise of unwavering quality and reliability for your most demanding projects.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
