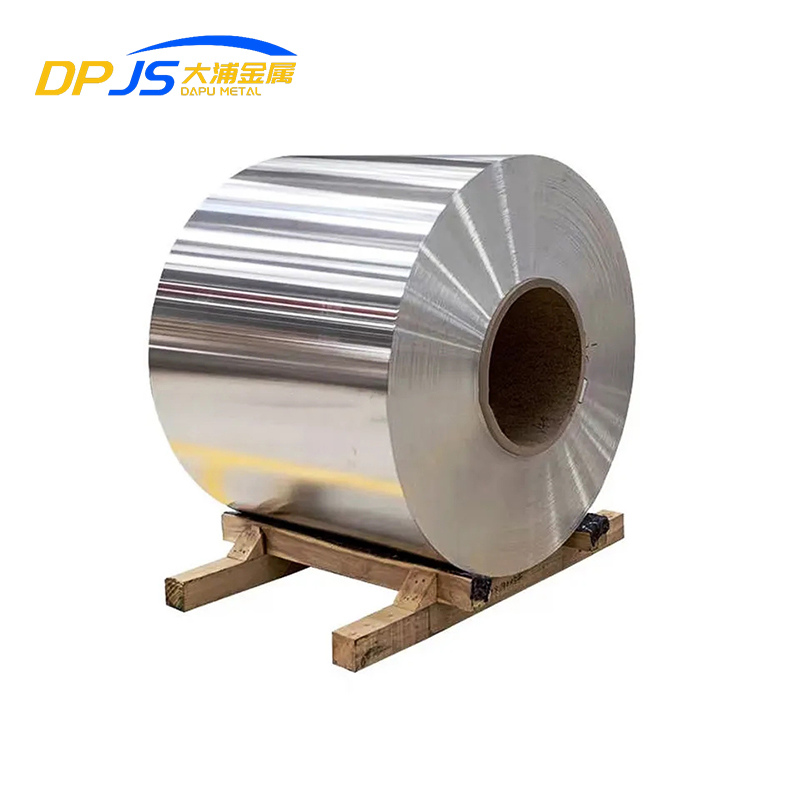

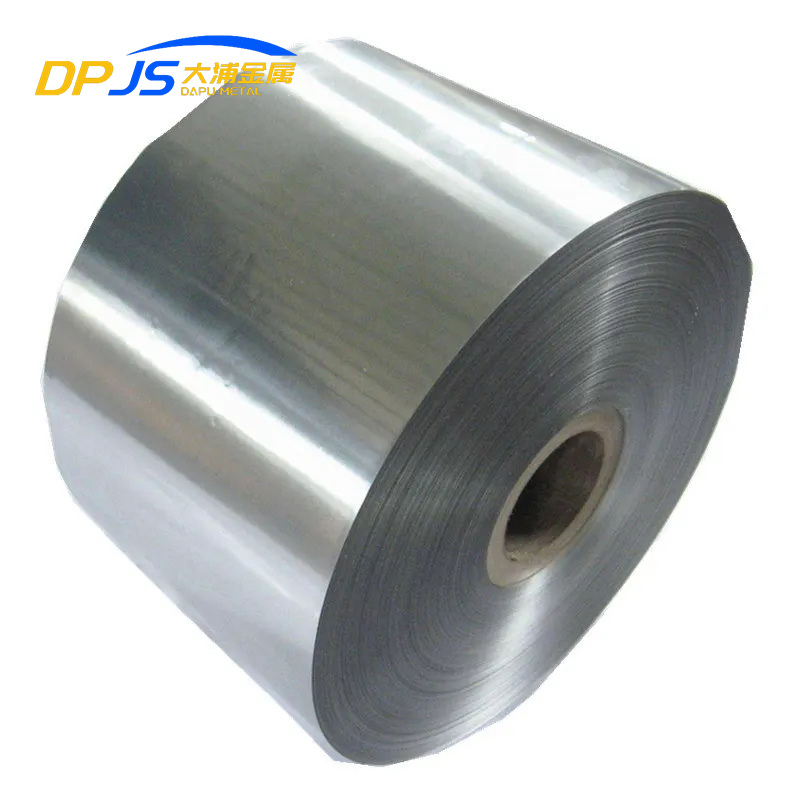

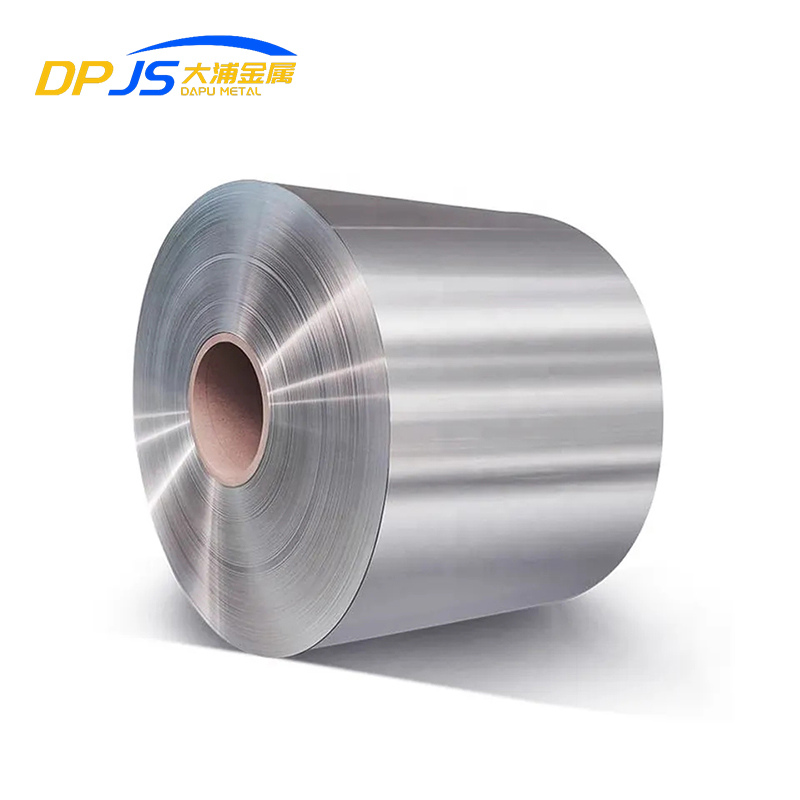

AA 5052 (EN AW-5052) Aluminum Alloy Coil
Leading 5052 ALUMINUM Alloy Coil MANUFACTURER IN CHINA
The AA 5052 (EN AW-5052) Aluminum Alloy Coil is a selective quality material that holds extreme corrosion resistance property, good strength, and great adaptability for applications. It can stand strong even in the harshest environment and has proved to be the most viable and efficient solution to demanding applications across various industries.
Discover high-quality 5052 aluminum alloy coil products here.
-
Characteristics of 5052 Aluminum Alloy
- Exceptional Corrosion Resistance: Highly resistant to saltwater, marine atmospheres, and industrial air, it is well suited for harsh conditions.
- High Strength-to-Weight Ratio: The aluminum is just very light with a nice strength that can maintain serious applications without weighing much.
- Good Formability: Easy to bend and form, and this aluminum will not crack when it is bent into complex designs.
- Good Weldability: Using either TIG or MIG will guarantee the highest quality welds and produce very strong and highly durable joints.
- Good Resistance to Fatigue: Cyclic loading and vibrations are accepted in structures; therefore, this material is used in structures exposed to continuous movement.
- Non-Heat-Treatable: Work hardened and not heat treated.
- Green Material: Completely recyclable, thus promoting sustainability and reduction in environmental hazards.
- Versatile Application: Able to be put to use in several operations, including marine, automobile, construction, and industry, due to its good flexibility and reliability.
AA 5052 (EN AW-5052) Aluminum Alloy Technical Specifications
| Element | Content (%) |
|---|---|
| Silicon (Si) | 0.25 max |
| Iron (Fe) | 0.40 max |
| Copper (Cu) | 0.10 max |
| Manganese (Mn) | 0.10 max |
| Magnesium (Mg) | 2.2 - 2.8 |
| Chromium (Cr) | 0.15 - 0.35 |
| Zinc (Zn) | 0.10 max |
| Others (each) | 0.05 max |
| Others (total) | 0.15 max |
| Aluminum (Al) | Remainder |
| Property | Value (H32 Temper) |
|---|---|
| Tensile Strength | 228 MPa min |
| Yield Strength | 193 MPa min |
| Elongation | 12% min (in 50mm) |
| Brinell Hardness (HB) | 60 HB min |
| Shear Strength | 138 MPa min |
| Fatigue Strength | 117 MPa min |
| Modulus of Elasticity | 70 GPa |
| Property | Value |
|---|---|
| Density | 2.68 g/cm3 |
| Melting Point | 607–649°C (1125–1200°F) |
| Thermal Conductivity | 138 W/m·K |
| Electrical Conductivity | 34% IACS |
| Thermal Expansion | 23.8 µm/m·°C (20–100°C) |
| Specific Heat Capacity | 0.880 J/g·°C |
- ASTM: B209
- UNS: A95052
- EN / DIN: AW-5052, AlMg2.5
- JIS: A5052
- BS: N4
- AFNOR: A-G2.5C
Common Applications of AA 5052 (EN AW-5052) Aluminum Alloy
Marine Industry
Automotive Industry
Construction Industry
Industrial Applications
-
AA 5052 Aluminum Alloy Coil Customization
In addition to standard stock, bespoke processing services are offered for the AA 5052 (EN AW-5052) Aluminum Alloy Coil to adapt to your individual project requirements.
- Custom Dimensions: Available custom dimensions from small sizes to larger ones precisely cut to your specifications so that they fit into your projects seamlessly.
- Thickness Options: Provided thickness ranges between 0.5mm and 50mm and can be applied for industrial and structural uses.
- Surface Finishes: To be selected from polished, brushed, anodized, mill finish, or customized according to the environment and aesthetics required.
- Advanced Processing Services, including precision cutting, welding, bending, machining, and heat treatment, are provided to supply ready-to-use components.
Reach out to our technical team today to discuss your custom fabrication requirements and find the perfect solution for your project.
Contact Us
We offer AA 5052 (EN AW-5052) Aluminum Alloy Coils certified by a reputed agency to pass extremely tough industry tests and stand as a symbol for ultimate performance and durability in your applications. Think of us as your partners working to deliver solutions for your projects from standard stock through to completely custom-fabricated parts, using our vast inventory coupled with advanced processing capabilities. Here with us, you get more than just a product-a stamp of quality and reliability on your most demanding projects.
Are you ready to move forward? To receive a detailed quote and a professional material consultation, please contact our expert staff with no obligation. Let’s talk about what you need technically so they can give you a solution customized to your requirements, competitive pricing, and delivery times. Let us save you time with your procurement, placing your project in life-support worthy of the support it deserves. Contact us today for an immediate securing of the best materials.
