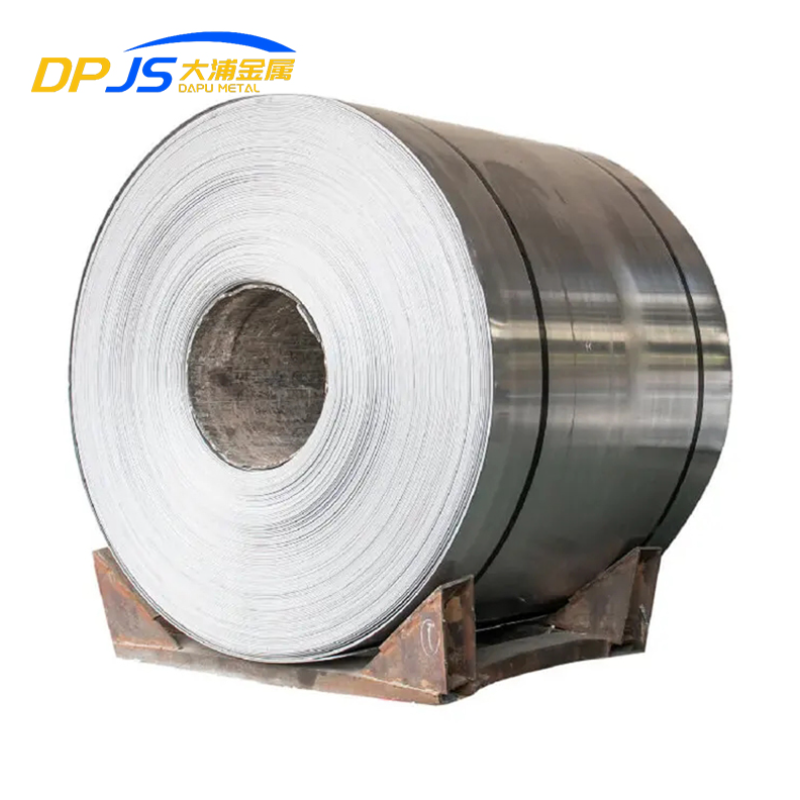

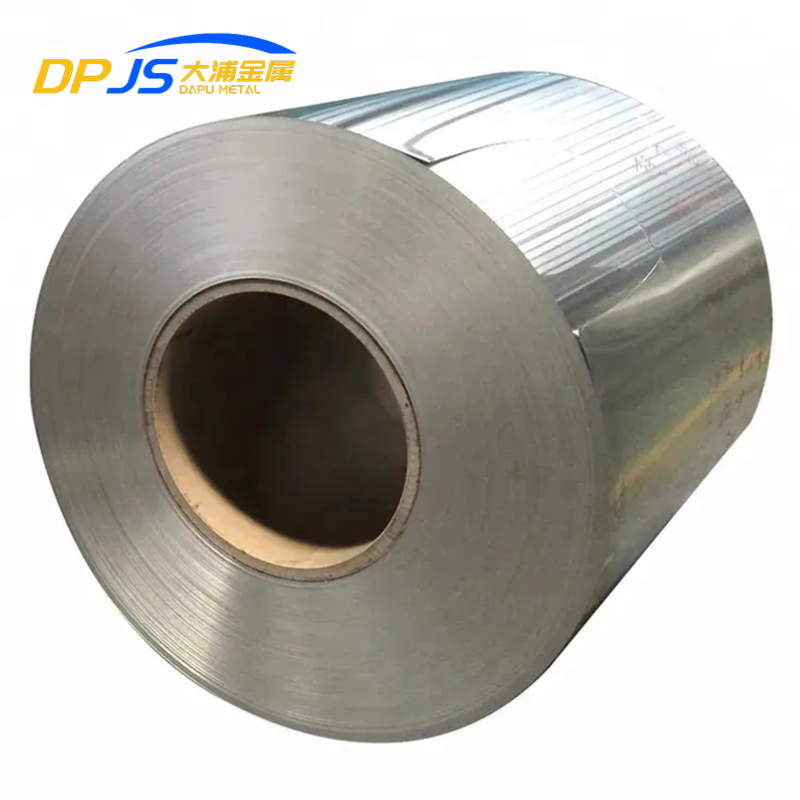

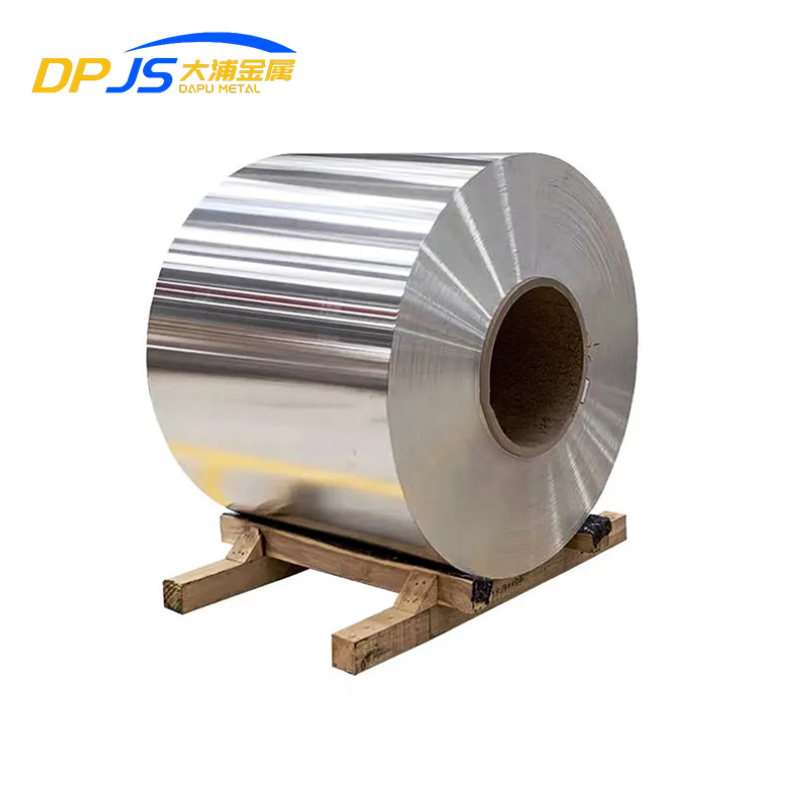

AA 3003 (EN AW-3003) Aluminum Alloy Coil
Leading 3003 ALUMINUM Alloy Coil MANUFACTURER IN CHINA
AA 3003 (EN AW-3003) is the premier choice for applications that require excellent formability and resistance to atmospheric corrosion. As the most widely used general-purpose aluminum alloy, its addition of manganese increases its strength by about 20% over pure aluminum grades. This non-heat-treatable alloy provides a versatile, cost-effective, and highly reliable solution for a wide range of manufacturing, industrial, and architectural projects, delivering both outstanding performance and a smooth, clean finish that withstands the test of time.
Discover high-quality 3003 aluminum alloy coil products here.
-
Characteristics of 3003 Aluminum Alloy
- Excellent Corrosion Resistance: Offers excellent resistance to atmospheric conditions and many chemical environments, ensuring long-term durability.
- Superior Formability: This highly ductile material can be easily deep drawn, spun, bent, and fabricated into complex shapes without cracking.
- Good Weldability: Can be readily welded using all standard welding techniques, making it versatile for fabricated assemblies.
- Moderate Strength: The addition of manganese provides approximately 20% more strength than pure aluminum, making it a robust general-purpose alloy.
- Non-Heat-Treatable: Strength is enhanced through cold working (strain hardening), designated by H-tempers (e.g., H14, H18).
- Lightweight & Strong: Provides a fantastic combination of low density with moderate strength, ideal for a wide range of applications.
- Excellent Thermal Conductivity: Its ability to transfer heat efficiently makes it a preferred material for heat exchangers, cookware, and chemical equipment.
- Versatile & Aesthetic Finish: Delivers a smooth, clean surface that can be easily finished, painted, or anodized for decorative and architectural uses.
AA 3003 (EN AW-3003) Aluminum Alloy Technical Specifications
| Element | Content (%) |
|---|---|
| Silicon (Si) | 0.6 max |
| Iron (Fe) | 0.7 max |
| Copper (Cu) | 0.05 - 0.20 |
| Manganese (Mn) | 1.0 - 1.5 |
| Zinc (Zn) | 0.10 max |
| Others (each) | 0.05 max |
| Others (total) | 0.15 max |
| Aluminum (Al) | Remainder |
| Temper | Tensile Strength | Yield Strength (0.2% offset) | Elongation % (in 2 in.) |
|---|---|---|---|
| O (Annealed) | 16 ksi (110 MPa) | 6 ksi (40 MPa) | 30% |
| H14 (Half-Hard) | 22 ksi (150 MPa) | 21 ksi (145 MPa) | 8% |
| H18 (Full-Hard) | 29 ksi (200 MPa) | 27 ksi (185 MPa) | 4% |
| Property | Value |
|---|---|
| Density | 2.73 g/cm³ (0.099 lb/in³) |
| Modulus of Elasticity | 10.0 x 10⁶ psi (69 GPa) |
| Coefficient of Thermal Expansion (20-100°C) | 23.2 µm/m°C (12.9 µin/in°F) |
| Thermal Conductivity (at 25°C) | 193 W/m·K |
| Melting Range | 643 - 654°C (1190 - 1210°F) |
- UNS： A93003
- EN (European)： EN AW-3003
- ISO： AlMn1Cu
- JIS (Japanese)： A3003
Common Applications of 3003 (EN AW-3003) Aluminum Alloy
Architectural & Building Products
Heat Exchangers & HVAC
Cookware & Food Equipment
Chemical & Storage Tanks
-
AA 3003 Aluminum Alloy Coil Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: We offer precision slitting services to deliver coils in your specific required widths and can provide cut-to-length sheets.
- Temper Range: Coils are available in a full range of tempers, from fully soft ‘O’ temper to full hard H18, to suit various formability and strength needs.
- Surface Finishing: Choose from multiple finishes, including standard mill finish, stucco embossed, pre-painted (color-coated), or anodized.
- Processing Services: We offer value-added services, including tension leveling for superior flatness, roll-forming, and applying protective films for surface protection.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Your project’s success hinges on superior materials. We supply certified AA 3003 aluminum coils that meet rigorous industry standards, ensuring absolute confidence in the performance and longevity of your application. As your dedicated partner, we utilize our vast inventory and advanced processing services to meet your exact specifications, from standard stock to fully customized coils. We deliver not just a product, but a promise of unwavering quality and reliability for your most demanding projects.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
