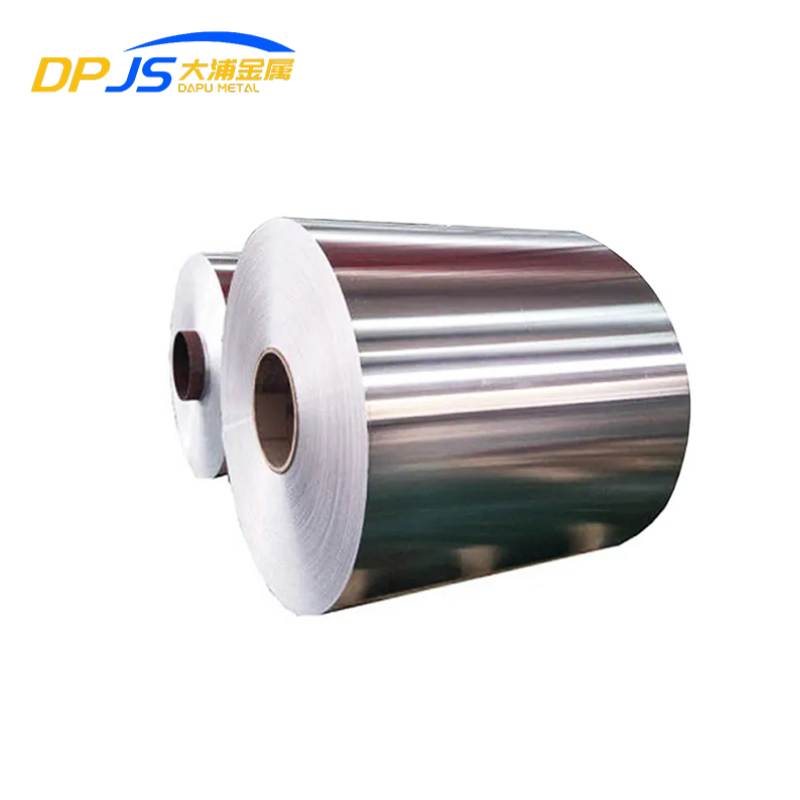

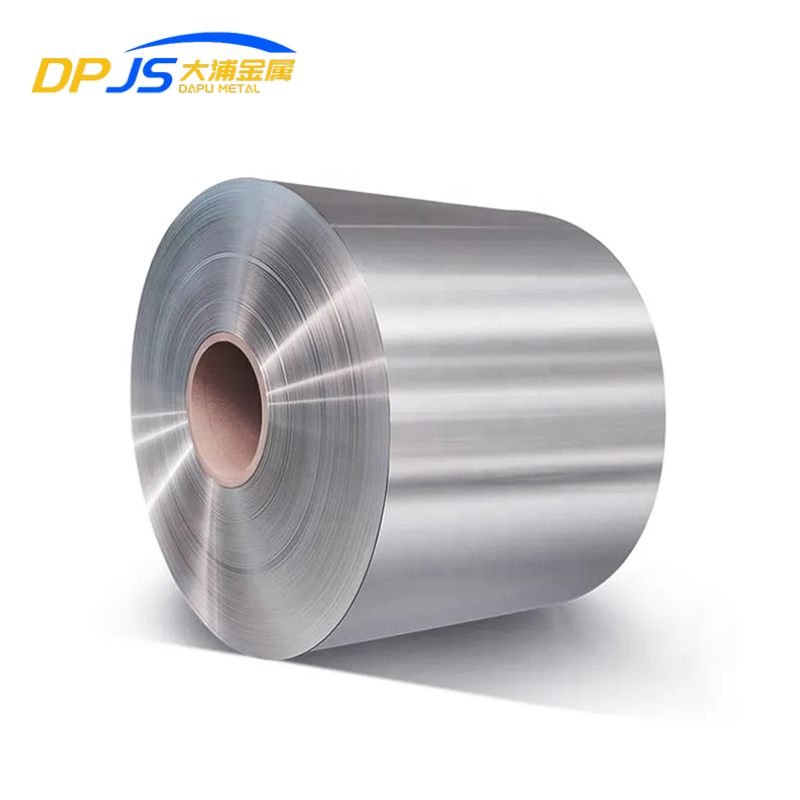

AA 1050 (ISO 6361) Aluminum Alloy Coil
TOP 1050 ALUMINUM Alloy COIL MANUFACTURER IN CHINA
AA 1050 (ISO 6361) is the premier choice for applications requiring exceptional ductility, high conductivity, and excellent corrosion resistance. As a commercially pure aluminum with an aluminum content of over 99.5%, its superior workability makes it ideal for deep drawing and intricate forming. This non-heat-treatable aluminum offers a versatile, cost-effective, and highly reliable solution for a vast range of electrical, chemical, and architectural projects, delivering both outstanding performance and a bright, reflective finish that stands the test of time.
Discover high-quality 1050 aluminum alloy coil products here.
-
Characteristics of 1050 Aluminum Alloy
- Exceptional Formability: With its high purity, this alloy exhibits high ductility and can be easily worked, deep drawn, spun, or bent into complex shapes without cracking.
- Excellent Corrosion Resistance: Offers outstanding resistance to weathering and chemical attack, making it ideal for outdoor applications and chemical equipment.
- High Electrical Conductivity: One of the most electrically conductive aluminum alloys, making it a preferred material for electrical conductors, busbars, and heat sinks.
- Superior Thermal Conductivity: Its ability to transfer heat efficiently makes it perfect for use in heat exchangers, cookware, and reflectors for lighting fixtures.
- Excellent Weldability: It can be readily welded using all conventional methods, although its low strength means it is not typically used for structural welds.
- Non-Heat-Treatable: This is a commercially pure, work-hardening alloy; its strength is increased through cold working (H-tempers).
- Lightweight & Cost-Effective: Offers a low-density and economical solution for a wide range of non-structural applications.
- Highly Reflective Surface: This material can be polished to a highly reflective finish, making it an excellent choice for decorative trim, architectural flashing, and light reflectors.
AA 1050 (ISO 6361) Aluminum Alloy Technical Specifications
| Element | Content (%) |
|---|---|
| Silicon (Si) | 0.25 max |
| Iron (Fe) | 0.40 max |
| Copper (Cu) | 0.05 max |
| Manganese (Mn) | 0.05 max |
| Magnesium (Mg) | 0.05 max |
| Zinc (Zn) | 0.05 max |
| Titanium (Ti) | 0.03 max |
| Others (total) | 0.03 max |
| Aluminum (Al) | 99.50 min |
| Temper | Tensile Strength | Yield Strength (0.2% offset) | Elongation % (in 2 in.) |
|---|---|---|---|
| O (Annealed) | 10 ksi (69 MPa) | 4 ksi (28 MPa) | 35% |
| H14 (Half-Hard) | 14 ksi (97 MPa) | 13 ksi (90 MPa) | 9% |
| H18 (Full-Hard) | 19 ksi (131 MPa) | 17 ksi (117 MPa) | 5% |
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ (0.098 lb/in³) |
| Modulus of Elasticity | 10.0 x 10⁶ psi (69 GPa) |
| Coefficient of Thermal Expansion (20-100°C) | 24.0 µm/m°C (13.3 µin/in°F) |
| Thermal Conductivity (at 25°C) | 229 W/m·K |
| Electrical Resistivity (at 20°C) | 2.83 x 10⁻⁸ Ω·m |
| Melting Range | 643 - 657°C (1190 - 1215°F) |
- UNS： A91050
- EN (European)： EN AW-1050A
- ISO： Al99.5
- JIS (Japanese)： A1050
Common Applications of AA 1050 Aluminum Alloy
Electrical & Electronics
Lighting & Reflectors
Architectural Flashing & Signage
Chemical & Food Containers
-
AA 1050 Aluminum Alloy Coil Customization
Beyond standard stock, we provide comprehensive processing services to deliver products that meet your exact project requirements.
- Custom Dimensions: We offer precision slitting services to deliver coils in your specific required widths and can provide cut-to-length sheets.
- Temper Range: Coils are available in a full range of tempers, from fully soft ‘O’ temper for maximum ductility to various H-tempers for increased strength.
- Surface Finishing: Choose from multiple finishes, including standard mill finish, stucco embossed, pre-painted (color-coated), or anodized for enhanced durability and appearance.
- Processing Services: We offer value-added services including tension leveling for superior flatness and applying protective films for surface protection during fabrication.
Contact our technical team to discuss your custom fabrication needs.
Contact Us
Your project’s success hinges on superior materials. We supply certified AA 1050 aluminum coils that meet rigorous industry standards, ensuring absolute confidence in your application’s performance and longevity. As your dedicated partner, we utilize our vast inventory and advanced processing services to meet your exact specifications, from standard stock to fully customized coils. We deliver not just a product, but a promise of unwavering quality and reliability for your most demanding projects.
Ready to begin? Contact our expert team for a detailed, no-obligation quote and professional material consultation. We are here to discuss your technical requirements and provide a tailored solution with competitive pricing and on-time delivery. Let us simplify your procurement process and help bring your project to life with the support it deserves. Send your inquiry now to secure the premium materials you need.
