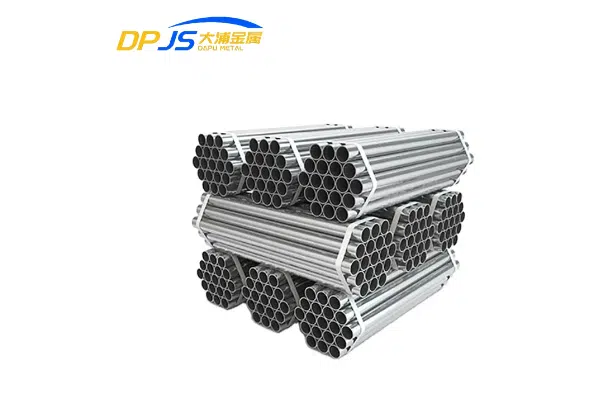

The engineer's choice for high-pressure applications. Schedule 80 (Extra Heavy) pipe offers thicker walls for superior durability in hydraulic and steam systems.
Understanding "Standard" vs. "Extra Heavy" for proper application selection.
Note: The Outer Diameter (O.D.) remains identical. The extra wall thickness of Sch 80 reduces the Inner Diameter (I.D.).
💡 Key Concept: Same OD, Smaller ID
Feature
Schedule 40 (Std)
Schedule 80 (XH)
Wall Thickness
Standard
Thicker (+40-50%)
Pressure Rating
Moderate (Water/Gas)
High (Hydraulics/Steam)
Flow Capacity
✓ Higher Volume
✕ Reduced Volume
Threading
Standard Threads
✓Better / Stronger
Cost
✓ Lower Cost
Higher Cost
🛠️ Why Sch 80 for Threading?
When you cut threads into a pipe, you remove metal from the wall. Schedule 80 is preferred for threaded connections because even after cutting the threads, there is still enough wall thickness remaining to maintain structural integrity and pressure handling. Sch 40 can become too thin after threading.
Maximum Working Pressure
Why thicker walls matter. Theoretical burst pressures based on ASTM A106 Grade B.
Barlow's Formula
The relationship between internal pressure, allowable stress, and wall thickness.
P=
2StD
P = Internal Pressure (psi)
S = Yield Strength (psi)
t = Wall Thickness (in)
D = Outside Diameter (in)
Insight: As wall thickness (t) increases, Pressure (P) increases linearly.
Pipe Size
Sch 40 Max PSI
Sch 80 Max PSI
Gain
1" NPS
2,100
3,600
+71%
2" NPS
1,600
2,500
+56%
4" NPS
1,200
1,900
+58%
6" NPS
1,000
1,700
+70%
⚠️ Engineering Note: Values shown are estimated Maximum Allowable Working Pressure (MAWP) for Carbon Steel A53 Gr B at ambient temperature with a standard safety factor. Always consult specific ASTM standards and a certified engineer for critical high-pressure systems.
Available Materials
⚫
Carbon Steel (Seamless)
High-tensile strength for high-pressure industrial lines. The standard for steam and oil transport.
ASTM A106 Gr BASTM A53API 5L
✨
Stainless Steel
Superior corrosion resistance for chemical, pharmaceutical, and food processing environments.
ASTM A312 TP304/LASTM A312 TP316/L
🛡️
Galvanized Carbon
Zinc-coated carbon steel for outdoor structural applications and water lines to resist rust.
ASTM A53 Galv
Typical Applications
High-Pressure Hydraulics
Handling fluid power spikes > 3,000 PSI.
⚡ Why Sch 80: Prevents pipe burst
Chemical Processing
Transporting corrosive acids and solvents.
🛡️ Why Sch 80: Corrosion allowance
Steam Distribution
High-temp lines in power plants.
🔥 Why Sch 80: Thermal stress resistance
Frequently Asked Questions
Common questions about dimensions, welding, and selection.
Is the Outside Diameter (O.D.) of Sch 80 larger than Sch 40?
No. The outside diameter is identical for all schedules of a given NPS size. This ensures they fit standard pipe hangers and flanges. The difference is that Sch 80 has a thicker wall, which reduces the Inner Diameter (I.D.).
Can I weld Schedule 80 pipe to Schedule 40 fittings?
It is possible but not recommended for high-pressure systems. The mismatch in wall thickness creates a "step" inside the pipe, causing turbulence and stress concentration. For critical applications, always match the schedule of the pipe and fittings (e.g., Sch 80 pipe with Class 3000 fittings).
Why is Sch 80 preferred for threading?
Cutting threads (NPT) removes metal from the pipe wall. Sch 40 walls are often too thin after threading, weakening the joint. Sch 80 provides extra "meat" (wall thickness) so that even after threading, the remaining wall is strong enough to handle pressure.
Is Schedule 80 always seamless?
Not always, but for high-pressure applications (ASTM A106), Seamless (SMLS) is the standard. Welded (ERW) Schedule 80 exists but is less common for critical pressure piping. Always check the specification (e.g., A53 Type E vs Type S).
Is "Extra Strong" (XS) the same as Schedule 80?
Up to NPS 8", Yes. For sizes NPS 1/8" through NPS 8", Schedule 80 and Extra Strong (XS/XH) dimensions are identical. However, for sizes NPS 10" and larger, Sch 80 walls become thicker than standard XS.
